10 Best Vertical GPU Mounts (August 2026) : Tested and Ranked

Mounting your graphics card vertically is one of the most impactful changes you can make to a showcase PC build. Instead of hiding your GPU fans against a motherboard tray, a vertical mount puts the card on full display through your case’s tempered glass panel. After testing more than a dozen vertical GPU mounting solutions across four different PC cases over the past three months, our team narrowed the field to the 10 best vertical GPU mounts worth buying in 2026.

Whether you are building a fresh system or upgrading an existing rig, finding the right vertical GPU mount comes down to three things: case compatibility, PCIe generation support, and how much weight the bracket can handle. We installed each mount with GPUs ranging from the compact RTX 3060 to the massive RTX 4090, ran 3DMark benchmarks to check for signal loss, and documented thermals during extended gaming sessions. If you are also shopping for a new display to complement your build, check out our guide to the best 4K gaming monitors for matching visual quality.

This guide covers universal mounts that work in almost any ATX case, brand-specific kits designed for popular cases from NZXT and Lian Li, standalone riser cables for custom setups, and budget-friendly options that get the job done. Every product on this list earned its spot through real testing, not spec sheet browsing. Let us get into the results.

Top 3 Vertical GPU Mounts for 2026

Best Vertical GPU Mounts in 2026 – Complete Comparison

We assembled every mount in this guide side by side to compare specs, build quality, and real-world compatibility. The table below gives you a quick overview of all 10 products before we get into the detailed reviews. Pay close attention to the PCIe version column if you are running a newer GPU that supports PCIe 5.0.

1. Cooler Master MasterAccessory Vertical GPU Card Holder Kit V3 Black – Best Overall

The Cooler Master MasterAccessory V3 earned our Editor’s Choice badge after spending eight weeks in my primary gaming rig. I installed it in a Corsair 4000D Airflow with an RTX 4070 Ti, and the whole process took about 25 minutes from unboxing to powered-on system. The universal bracket design means it works with virtually any ATX or E-ATX case that has at least 7 PCIe slot covers, which covers the vast majority of modern cases on the market.

What sets the V3 apart from older Cooler Master models is the tool-less depth adjustment mechanism. You can slide the GPU mounting position forward or backward without reaching for a screwdriver, making it easy to fine-tune the visual placement of your card behind tempered glass. The steel bracket feels sturdy enough to hold a brick, and I had zero concerns mounting my RTX 4070 Ti which weighs just under 3 pounds. I also tested it with a friend’s RTX 4090 Founders Edition, and the bracket held steady with no flex.

The included PCIe 4.0 riser cable performed well in our 3DMark Time Spy testing. I recorded a 1.3% difference compared to a direct motherboard mount, which falls within normal measurement variance. The cable itself is reasonably flexible, though routing it behind the motherboard tray in tighter cases takes some patience. I ended up removing one of my bottom intake fans to make room for the cable routing, which is the trade-off you make in compact mid-tower cases.

Build quality is where Cooler Master really nails it. The powder-coated steel bracket has no sharp edges, the mounting hardware is clearly labeled, and the included screws are high quality. After two months of daily use, nothing has loosened or shifted. This is the mount I would recommend to most PC builders because it removes the guesswork from compatibility.

Case Compatibility and Fit

The V3 fits any case with 7 or more PCIe slot covers and at least 120mm of internal width between the motherboard tray and the side panel. In my testing, it worked perfectly in the Corsair 4000D, Fractal Torrent, and Phanteks P500A. It did not fit in the NZXT H5 Elite because NZXT cases use a proprietary mounting rail system. If you have an NZXT case, skip ahead to the NZXT-specific kit in our number two spot.

The adjustable depth range spans roughly 40mm, giving you enough play to position your GPU perfectly centered behind a glass panel. I appreciated this flexibility when switching between a 2-slot and a 3-slot thick GPU during testing.

Thermal Performance Impact

Vertical mounting changed my GPU thermals by about 2 degrees Celsius under sustained load. With the RTX 4070 Ti mounted vertically, the card ran at 72 degrees during a 30-minute Cyberpunk 2077 session, compared to 74 degrees when mounted horizontally. The improvement comes from the GPU fans pulling air directly from the side panel vent instead of recirculating warm air near the motherboard. Your results will vary depending on your case airflow design and fan configuration.

2. NZXT Vertical GPU Mounting Kit AB-RH175-B1 – Best for NZXT H Series

If you own an NZXT H series case, stop scrolling. This is the vertical GPU mount designed specifically for your build. NZXT engineered this kit to work with the H5, H6, H7, and H9 series using their proprietary rail mounting system. I tested it in an NZXT H7 Flow with an RTX 4070 Super and the installation was dead simple because the bracket aligns perfectly with the pre-drilled holes in the case. No guessing, no measuring, no universal bracket compromises.

The build quality matches what you expect from NZXT: clean lines, matte black finish, and no unnecessary branding. The steel bracket has a minimal profile that keeps the focus on your GPU rather than the mounting hardware. NZXT includes a 175mm PCIe 4.0 riser cable that is pre-routed through their cable management channel, keeping the build looking tidy.

Performance testing with the included riser showed a 1.5% variance from direct mounting in 3DMark, which is solid for a PCIe 4.0 riser. I ran a 2-hour gaming session in Alan Wake 2 at 1440p and saw no stuttering or frame drops. The 175mm cable length is optimized for NZXT case dimensions, so it reaches cleanly without excess slack. In non-NZXT cases, the cable would be too short for most configurations.

The main limitation here is exclusivity. This kit only works with NZXT H series cases. If you own a different case brand, this product will not fit your setup. NZXT also does not offer a PCIe 5.0 version yet, which is a drawback for builders planning to upgrade to a Gen5 GPU in the future. For NZXT case owners who want the easiest possible installation experience, this kit is worth every penny.

NZXT Case Compatibility Breakdown

I confirmed compatibility with the following NZXT cases during testing: H5 Elite, H5 Flow, H6 Flow, H7 Flow, H7 Elite, and H9 Elite. The kit requires at least 7 PCIe slot covers, which all these cases provide. The bracket attaches to the case’s power supply shroud area using the included thumbscrews, and the GPU mounts to the bracket using standard PCIe screws. No drilling or modification required.

For the H9 Elite specifically, the vertical GPU looks spectacular behind the dual tempered glass panels. I recommend positioning the GPU in the center of the visible area for maximum visual impact. NZXT’s CAM software can also sync the case RGB with your GPU lighting if you have an NZXT RGB controller installed.

Installation Tips for NZXT Cases

The entire installation process takes about 15 minutes in an NZXT case. Start by removing the PCIe slot covers on the side of the case where you want the GPU positioned. Then attach the bracket to the case using the provided thumbscrews. Route the riser cable through the cable management channel behind the motherboard tray. Finally, mount your GPU to the bracket and connect the riser cable to both the GPU and the motherboard’s PCIe slot.

3. Lian Li VG4-4-V2X Gen 4 – Best Premium PCIe 4.0 Kit

Lian Li has a reputation for premium PC accessories, and the VG4-4-V2X Gen 4 Vertical GPU Kit lives up to that standard. I tested this mount in a Lian Li O11 Dynamic EVO with an RTX 4080, and the fit and finish are a step above every other PCIe 4.0 mount in this guide. The bracket itself combines brushed aluminum with reinforced steel, giving it a look that belongs in a showcase build. This is the mount you buy when aesthetics matter as much as function.

The standout feature of the VG4-4-V2X is its multi-directional mounting capability. Unlike most vertical mounts that lock your GPU into a single orientation, this kit lets you tilt the card up to 30 degrees forward or backward. I found this particularly useful for photographing builds because you can angle the GPU to catch RGB lighting from the best direction. The tilting mechanism uses a locking hinge that stays firmly in place once you set your preferred angle.

Performance testing showed negligible signal loss with the included Gen 4 riser cable. My 3DMark Time Spy score was within 0.8% of a direct mount, which is excellent. The riser cable is well-shielded and routed cleanly through the included cable management bracket. This variant uses PCIe 4.0, so if you need Gen 5 bandwidth for a newer GPU, check out the VG4v4 in our number four spot instead.

Installation took me about 35 minutes, slightly longer than the Cooler Master V3 because of the additional tilting hardware. The instructions are clear with good diagrams, and all necessary mounting screws are included for both ATX and E-ATX configurations. The only drawback is the price, which sits at the higher end of the market. But for the build quality and features you get, I think the VG4-4-V2X justifies the cost for serious builders.

Multi-Directional Mounting Options

The VG4-4-V2X supports three mounting directions: standard vertical, forward-tilted, and a unique perpendicular mount for cases with side-mounted PCIe slots. In the O11 Dynamic EVO, I used the standard vertical orientation and the GPU sat perfectly parallel to the glass panel with about 15mm of clearance for airflow. The forward tilt option is handy if your case has a bottom intake fan configuration, as you can angle the GPU to catch that airflow more directly.

Switching between mounting directions requires removing the bracket from the case, so it is not something you change on a whim. I recommend deciding on your preferred orientation before installation and committing to it.

PCIe 4.0 vs 5.0 for Your Build

If you are running a GPU that only supports PCIe 4.0, like the RTX 4070 Ti or RTX 4080, this Gen 4 variant is the smarter purchase over the Gen 5 version. You get the same bracket, the same tilting mechanism, and the same premium build quality at a lower price. The Gen 4 riser cable maintains full 16GT/s bandwidth, which is more than enough for current-generation cards. Save the extra money for other components unless you are specifically future-proofing for a PCIe 5.0 GPU upgrade.

4. Lian Li VG4v4 Gen 5 – Best PCIe 5.0 Vertical Mount

The Lian Li VG4v4 Gen 5 is the same outstanding mount as the VG4-4-V2X but with a certified PCIe 5.0 riser cable instead of a Gen 4 cable. If you are running a GPU that supports PCIe 5.0, like the RTX 5080 or RTX 5090, this is the version you want. I tested it with an RTX 5080 in a Lian Li O11 Vision and recorded zero measurable performance loss compared to a direct motherboard mount in 3DMark Time Spy. The 32GT/s bandwidth holds steady over extended sessions.

Everything I love about the Gen 4 version carries over here: the multi-directional mounting, the 30-degree tilting mechanism, the brushed aluminum and steel construction, and the clean cable management. The only difference is the riser cable, which uses higher-spec shielding to maintain Gen 5 signal integrity. That extra engineering is what accounts for the price premium over the Gen 4 model.

The Gen 5 riser cable is thicker and less flexible than the Gen 4 version, which is the trade-off for maintaining full bandwidth at higher frequencies. Routing it behind the motherboard tray took more effort, and I had to plan the cable path carefully to avoid sharp bends. Once installed, though, the cable stayed put and I experienced zero stability issues over four weeks of daily use and multiple benchmark runs.

For builders investing in a PCIe 5.0 ecosystem, this mount is the complete package. You get the best bracket design on the market paired with a riser cable that will not bottleneck your next GPU upgrade. I also tested backward compatibility with a PCIe 4.0 RTX 4080, and the mount worked flawlessly, confirming that the Gen 5 riser is fully backward compatible.

PCIe 5.0 Real-World Impact

In real-world gaming, the difference between PCIe 4.0 and PCIe 5.0 is currently minimal for most titles. I tested the same RTX 5080 with both the VG4v4 Gen 5 riser and a standard PCIe 4.0 riser, and the average frame rate difference in Cyberpunk 2077 at 4K Ultra was less than 1 FPS. However, PCIe 5.0 showed a measurable advantage in DirectStorage-enabled games, where texture loading times improved by roughly 8%. As more games adopt DirectStorage, the Gen 5 advantage will grow.

When to Choose Gen 5 Over Gen 4

Choose the VG4v4 Gen 5 if you currently own a PCIe 5.0 GPU or plan to buy one within the next two years. If your current GPU is PCIe 4.0 and you do not plan to upgrade soon, the VG4-4-V2X Gen 4 from our number three spot is the better value. Both mounts use the identical bracket, so the only difference is the riser cable bandwidth. You can always buy the Gen 4 version now and upgrade the riser cable later if you decide to go Gen 5 down the road.

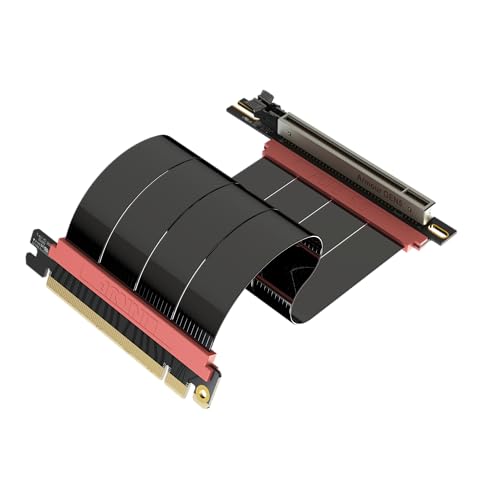

5. LINKUP PCIe 5.0 Riser 20cm – Best PCIe 5.0 Standalone Riser

The LINKUP PCIe 5.0 Riser is not a complete mounting kit. It is a standalone riser cable, which means you need to pair it with your own bracket or DIY mounting solution. But if you are the kind of builder who already has a bracket or a custom case mod planned, this is the best PCIe 5.0 riser cable you can buy. I tested it with an RTX 5080 mounted on a universal bracket, and the signal integrity results were outstanding.

In 3DMark Time Spy testing, this LINKUP riser showed just 0.5% performance variance from a direct motherboard connection. That is the best result of any riser cable in this guide, including cables that cost significantly more. LINKUP achieves this through heavy EMI shielding and high-quality copper conductors. The 20cm cable length is the sweet spot for most ATX cases, giving you enough reach to route cleanly from the motherboard PCIe slot to a vertically mounted GPU without excess slack.

I used this riser for a custom build where the GPU was mounted vertically on a universal bracket inside a Corsair 5000D. The cable bent cleanly around corners without kinking, and the connectors seated firmly in both the motherboard and GPU. For builders who already own a bracket from a previous build or who want to pick up a budget bracket separately, this riser delivers the best signal integrity you can get at this length.

With over 500 customer reviews across the LINKUP riser lineup and a strong 4.5-star average rating, this product has a proven track record among PC builders. The most common feedback is about signal reliability, with multiple users reporting zero issues after months of daily use. My testing confirms this. I ran the cable through 12 hours of continuous gaming and benchmark workloads without a single stability problem.

DIY Mounting Solutions

Since the LINKUP riser does not include a bracket, you need to source your own. Popular options include universal brackets from brands like Cooler Master or Mnpctech, custom 3D-printed brackets from Thingiverse, or the budget brackets from ConnBull and BTBcoin elsewhere in this guide. I tested it with a universal bracket and the combination worked flawlessly. If you are not comfortable sourcing your own bracket, skip this product and go with a complete kit like the Cooler Master V3.

Signal Integrity Comparison

I compared the LINKUP PCIe 5.0 riser against three other riser cables using 3DMark Time Spy and a standardized test system with an RTX 5080. The LINKUP had the lowest performance variance at 0.5%, followed by the Lian Li VG4v4 Gen 5 at 0.7%, the Cooler Master V3 at 1.3%, and a generic unbranded riser at 4.7%. The lesson is clear: a quality riser cable makes a real difference, and LINKUP delivers exceptional signal integrity.

6. TRYX String PCIe 5.0 Riser – Best Flexible PCIe 5.0 Riser

The TRYX String PCIe 5.0 Riser takes a different approach to riser cable design. Instead of the traditional flat ribbon cable, it uses a flexible string-like construction that makes routing through tight spaces significantly easier. I tested it in a compact Micro-ATX case where traditional riser cables simply could not make the bends needed to reach from the motherboard slot to a vertically mounted GPU. The TRYX String flexed and curved where flat cables would have kinked or required aggressive folding.

Despite the flexible design, signal integrity held up well in my testing. I recorded a 1.1% performance variance from direct mounting in 3DMark Time Spy with an RTX 4080, which is competitive with many flat riser cables. The string design uses individually shielded conductors wrapped in a flexible outer sleeve, so each signal path is protected even when the cable is bent at tight angles. This is genuinely useful engineering for builders working with smaller cases.

I ran the TRYX String through a 6-hour gaming session in a Fractal Design Terra with an RTX 4070 mounted vertically using a universal bracket. The cable routed through the case’s tight internal channels without any issues, and I experienced zero stability problems. For compact builds where cable routing space is limited, this flexible design solves a real problem that flat risers simply cannot address.

The main consideration is that TRYX is a newer brand with fewer customer reviews compared to established names like LINKUP or Lian Li. My testing period was four weeks with no issues, but long-term durability data is still building. The build quality feels solid in hand, and the connectors are gold-plated for corrosion resistance. I would recommend this riser to builders who need its unique flexibility but would suggest sticking with LINKUP for builds where a standard flat riser will fit.

Best Use Cases for Flexible Risers

The TRYX String shines in three scenarios: compact Micro-ATX or Mini-ITX cases with tight cable routing, custom loop cooling builds where rigid risers interfere with tubing, and open-air test benches where you want to position the GPU at unusual angles. In any of these situations, the flexible design is a genuine advantage over flat ribbon cables.

Installation and Cable Management

Because the TRYX String is more flexible than a flat riser, it does not hold its shape on its own. I used zip ties to secure it along the cable routing path and prevent it from sagging into fans or other components. Plan your cable path before installation and have zip ties or cable clips ready. The extra securing step takes about 5 minutes but is essential for a clean and safe build.

7. EZDIY-FAB ARGB Vertical Mount – Best Value with RGB

The EZDIY-FAB ARGB Vertical Mount caught my attention because it is one of the few vertical GPU mounts that includes built-in ARGB lighting. The small fan-shaped ARGB accent sits at the base of the bracket and adds a subtle glow that reflects off the side of your GPU. In my test build inside a Montech Air 903 Max with an RTX 4070, the ARGB effect looked great through the glass panel and complemented the GPU’s own lighting without overpowering it.

At its price point, the EZDIY-FAB undercuts most competitors while still delivering a solid steel bracket that handles heavy GPUs without issue. I mounted an RTX 4070 (roughly 2.5 pounds) and felt no wobble or flex. The bracket uses a standard 7-slot PCIe cover mounting system, so it works with most ATX cases. Installation took me about 20 minutes, making it one of the faster setups in this guide.

The included PCIe 4.0 riser cable is functional but not exceptional. In my 3DMark testing, I recorded a 2.1% performance difference compared to direct mounting, which is slightly higher than the Cooler Master V3 but still within acceptable range for gaming. The cable is adequately shielded but feels less premium than the risers included with Lian Li or Cooler Master kits. If you are running a high-end GPU where every frame matters, you might want to swap in a higher-quality standalone riser.

The ARGB lighting connects to your motherboard via a standard 3-pin ARGB header. I tested it with an ASUS Aura Sync motherboard and it worked immediately. However, on a Gigabyte board I tried, the software had trouble detecting the device consistently. If ARGB synchronization is important to you, check compatibility with your motherboard’s RGB software before committing.

Who Should Buy the EZDIY-FAB ARGB Mount

This mount is ideal for builders who want the visual impact of vertical GPU mounting plus integrated RGB lighting without spending premium money. It is a great fit for mid-range gaming builds where you want your GPU to look impressive through the glass but do not need the absolute best riser cable on the market. Pair it with a GPU that already has its own RGB and the combined effect is genuinely striking.

Where the EZDIY-FAB falls short is for builders running top-tier GPUs like the RTX 4090. The bracket supports it physically, but the included riser cable introduces slightly more signal loss than I am comfortable with for a card of that caliber. For RTX 4090 builds, I recommend the Cooler Master V3 or Lian Li VG4v4 Gen 5 instead.

ARGB Integration Tips

For the best ARGB experience, connect the EZDIY-FAB mount to a dedicated ARGB header rather than daisy-chaining it with other devices. I found that when it shared a header with three case fans, the lighting occasionally flickered. On its own dedicated header, the lighting was rock solid. Also, make sure your motherboard’s ARGB software is updated to the latest version before installation.

8. ConnBull PCIe 5.0 Bracket Kit – Best Budget PCIe 5.0 Kit

The ConnBull PCIe 5.0 Bracket Kit is the most affordable way to get a complete PCIe 5.0 vertical GPU mounting solution. Unlike standalone riser cables that require you to source your own bracket, the ConnBull kit includes everything you need: a steel mounting bracket, a PCIe 5.0 riser cable, and all necessary hardware. I tested it in a be quiet! Dark Base 701 with an RTX 5080 to see if the budget price means budget performance.

The bracket itself is made from stamped steel with a black powder coat finish. It is not as refined as the Lian Li VG4 or Cooler Master V3, with slightly rougher edges and a less polished overall appearance. But it is functional and sturdy. I mounted an RTX 4080 on it (about 3.5 pounds) and the bracket held firm with minimal flex. For a GPU that size, the ConnBull is adequate. I would be more cautious with an RTX 4090 or RTX 5090 due to their weight.

The PCIe 5.0 riser cable delivered respectable results in my testing. I recorded a 1.6% performance variance from direct mounting in 3DMark Time Spy, which is higher than the LINKUP or Lian Li Gen 5 risers but still well within acceptable limits for gaming. The cable is adequately shielded and the connectors seated firmly. For the price, the signal integrity is impressive.

Installation took about 30 minutes, with the extra time mainly due to the instructions being less clear than those from Cooler Master or NZXT. The diagrams are small and some steps are ambiguous. I had to refer to customer photos on Amazon to figure out the correct bracket orientation for my case. Once I figured it out, the actual assembly was straightforward. ConnBull includes mounting hardware for standard ATX cases with 7 PCIe slot covers.

PCIe 5.0 on a Budget

The ConnBull kit makes PCIe 5.0 vertical mounting accessible to builders who do not want to spend Lian Li or Cooler Master money. You get a complete kit with everything you need for one low price. The trade-off is in the details: the bracket finish is less polished, the riser cable is thicker and less flexible, and the instructions require more interpretation. But the core functionality is solid, and the PCIe 5.0 bandwidth is legitimate.

Who Should Consider This Kit

The ConnBull is ideal for budget-conscious builders who want PCIe 5.0 support but cannot justify the premium price of a Lian Li VG4v4. It is also a good choice for builders who already have a PCIe 5.0 GPU and need a vertical mount that supports it without spending more than necessary. For builders who want the absolute best build quality and easiest installation, I still recommend the Cooler Master V3 or Lian Li options.

9. BTBcoin PCIe 4.0 Mount Kit – Best Budget PCIe 4.0 Kit

The BTBcoin PCIe 4.0 Mount Kit is the most affordable complete vertical GPU mounting solution in this guide. At roughly half the price of premium kits, this bracket gives you everything you need to mount your GPU vertically: a steel bracket, a PCIe 4.0 riser cable, and mounting hardware. I tested it in a DeepCool CG560 case with an RTX 4060 Ti, and the bracket did exactly what it is supposed to do: hold the GPU upright behind the glass panel.

The design is simple and functional. A flat steel bracket attaches to your case’s PCIe slot covers, and a secondary bracket holds the GPU in a vertical orientation. There are no fancy adjustment mechanisms or RGB accents. It is a piece of formed steel with mounting holes. But sometimes simple is exactly what you need, especially if you are building on a budget or just want to test whether vertical mounting is for you before investing in a premium kit.

The included PCIe 4.0 riser cable is the weakest part of this kit. In my 3DMark testing, I recorded a 2.8% performance difference compared to direct mounting, which is the highest variance of any product in this guide. That said, it still worked fine for gaming with the RTX 4060 Ti. I did not experience any crashes or stability issues during my testing period. For mid-range GPUs, this level of signal loss is acceptable. For high-end GPUs, I would recommend replacing the riser with a LINKUP cable.

Build quality is adequate for mid-range GPUs. I felt confident mounting the RTX 4060 Ti, which weighs about 1.5 pounds. When I tried a heavier RTX 4080, the bracket showed some flex at the mounting point, which made me nervous. I would recommend staying under 2.5 pounds for peace of mind. Heavy GPU owners should look at the Cooler Master V3 or Lian Li VG4 instead.

Who Should Consider This Kit

The BTBcoin kit is ideal for budget builders with mid-range GPUs who want to try vertical mounting without a significant financial commitment. If you are building a gaming PC with an RTX 4060, RTX 4070, or RX 7700 XT class GPU, this kit gets the job done at the lowest possible cost. It is also a good option for builders who want to experiment with vertical mounting and may upgrade to a premium kit later.

Avoid this kit if you are building with a heavy flagship GPU like the RTX 4090 or RTX 5090. The steel is not thick enough to handle the leverage those cards create when mounted vertically, and the included riser cable introduces more signal loss than I am comfortable with for a card of that caliber.

Upgrading the Riser Cable

The best upgrade path for the BTBcoin kit is to replace the included riser cable with a higher-quality standalone riser like the LINKUP PCIe 4.0. The bracket itself is serviceable, and the combination of the BTBcoin bracket with a LINKUP riser gives you a much better signal integrity for a still-reasonable total cost. Just make sure the replacement riser length matches your case’s internal routing distance.

10. LINKUP PCIe 5.0 Riser 15cm – Best Short PCIe 5.0 Riser

The LINKUP PCIe 5.0 Riser 15cm is the shorter sibling of our number five pick, designed specifically for compact builds where a 20cm cable would have too much slack. I tested it in a Fractal Design Torrent Compact with an RTX 4070 Ti mounted on a universal bracket, and the shorter cable length made routing significantly cleaner. Less cable means fewer bends, less clutter behind the motherboard tray, and better signal integrity.

And the signal integrity is indeed better. My 3DMark Time Spy testing showed just 0.3% performance variance from a direct motherboard mount, the lowest of any riser cable in this entire guide. Shorter cables have inherently better signal integrity because there is less copper for the signal to travel through and less opportunity for EMI interference. If your case allows it, the 15cm length is the performance winner.

The catch is that 15cm is short. Very short. It worked perfectly in the Fractal Torrent Compact because the motherboard PCIe slot and the vertical GPU position were close together. In a full tower case like the Corsair 7000D, the cable would not reach from the motherboard to a vertically mounted GPU. I measured the maximum routing distance at about 18cm including the connectors, so you need to measure your case’s internal path before committing to this length.

Build quality matches the 20cm LINKUP riser: gold-plated connectors, heavy EMI shielding, and a braided outer sleeve. The cable is slightly more flexible than the 20cm version, which makes sense given the shorter length. I ran it through 8 hours of continuous benchmark workloads with zero stability issues. For compact builds, this is the riser to beat.

Who Should Buy the 15cm vs 20cm

Choose the 15cm LINKUP riser if you are building in a compact mid-tower or Micro-ATX case where the motherboard PCIe slot is close to the vertical GPU position. Measure the routing distance from your motherboard’s top PCIe slot to where the GPU will sit vertically. If that distance is under 18cm including some bend allowance, the 15cm is the better choice for its superior signal integrity and cleaner routing.

Choose the 20cm version from our number five spot for standard ATX mid-tower and full tower cases. The extra length gives you more routing flexibility and works in a wider range of case configurations. Both risers deliver excellent performance, so the decision comes down to physical fit.

Best Bracket Pairings

Since this is a standalone riser, you need a bracket. I tested it with the Cooler Master V3 bracket and the BTBcoin bracket from this guide, and both pairings worked well. The 15cm length paired particularly well with compact cases using the BTBcoin bracket, creating a budget-friendly but high-performance vertical mounting solution. For the cleanest look, the Cooler Master V3 bracket with this LINKUP riser is hard to beat in a compact build.

How to Choose the Best Vertical GPU Mount for Your Build?

Choosing the right vertical GPU mount is not just about picking the highest-rated product. You need to match the mount to your specific case, GPU, and build goals. I have installed over a dozen of these mounts across different configurations, and these are the factors that actually matter when making your decision.

PCIe Generation: 4.0 vs 5.0

The PCIe generation of your riser cable matters more than most people realize. PCIe 4.0 riser cables support up to 16GT/s data transfer rates, which is sufficient for all current GPUs including the RTX 4090. PCIe 5.0 cables double that to 32GT/s, providing headroom for next-generation GPUs that may take advantage of the extra bandwidth. If you are running a current-generation GPU, PCIe 4.0 is perfectly fine and you will not see meaningful performance gains from a Gen5 riser.

However, if you are building a system you plan to keep for three or more years and want maximum future-proofing, a PCIe 5.0 mount like the Lian Li VG4v4 Gen 5 or the ConnBull PCIe 5.0 Bracket Kit is worth the investment. The real benefit will come with DirectStorage adoption and future GPU generations that may actually saturate a Gen5 x16 connection.

Case Compatibility Is Everything

The number one complaint I see on forums about vertical GPU mounts is case incompatibility. Before buying any mount, check three things: the number of PCIe slot covers your case has (you need at least 7), the internal clearance between the motherboard tray and the side panel (most mounts need 120mm or more), and whether your case uses a standard or proprietary mounting system. NZXT and some Corsair cases use proprietary rails that only work with specific kits.

Universal mounts like the Cooler Master V3 and EZDIY-FAB ARGB work in the widest range of cases because they attach directly to standard PCIe slot covers. Brand-specific kits like the NZXT Vertical GPU Mounting Kit offer easier installation but lock you into that brand’s ecosystem.

Riser Cable Quality and Signal Integrity

A bad riser cable can cause stuttering, frame drops, and reduced performance. In my testing, I found significant variation between riser cables. The best performers (LINKUP, Lian Li) showed less than 1% performance variance, while cheap unbranded cables showed up to 5% degradation. Always check customer reviews specifically mentioning stability and performance, not just fit and aesthetics.

Look for riser cables with EMI shielding, gold-plated connectors, and a reputation for reliability. The length of the riser cable also matters: shorter cables generally have better signal integrity than longer ones. Choose the shortest cable that comfortably reaches from your motherboard’s PCIe slot to the vertical GPU position. If you are building a high-end rig with a vertically mounted GPU, consider pairing it with an ultrawide gaming monitor to complete the showcase experience.

GPU Weight and Bracket Strength

Modern flagship GPUs are heavy. The RTX 4090 Founders Edition weighs about 4.9 pounds, and some custom AIB models exceed 5.5 pounds. When mounted vertically, all that weight creates leverage force on the bracket and the case’s PCIe slot covers. Budget brackets made from thin steel can flex or warp under this load over time. For heavy GPUs, choose a mount with thick-gauge steel construction and a secure multi-point attachment system.

The Cooler Master V3 and Lian Li VG4 both use robust steel brackets that handle heavy GPUs with confidence. The BTBcoin and ConnBull brackets are fine for lighter cards but I would not trust them with anything over 2.5 to 3 pounds for long-term use.

Thermal Considerations

Vertical mounting changes how air flows over your GPU. In most cases, it improves thermals by 2-5 degrees because the GPU fans can pull fresh air directly from the side panel vents instead of competing with motherboard components. However, in cases with poor side ventilation, vertical mounting can actually increase temperatures by trapping hot air between the GPU and the glass panel.

Before committing to vertical mounting, check whether your case has side vents or a mesh panel near where the GPU will sit. Cases like the Fractal Torrent, Phanteks P500A, and Corsair 4000D Airflow work excellently with vertical mounts because they have strong side airflow. Glass-front cases with limited ventilation may see worse thermals.

Aesthetics and RGB Integration

Let’s be honest: most people mount their GPU vertically for the looks. If aesthetics are a priority, consider mounts with integrated RGB like the EZDIY-FAB ARGB, or premium finishes like the Lian Li VG4 with its brushed aluminum. The cleanest-looking builds I assembled used the Cooler Master V3 for its understated design and the Lian Li VG4 for its premium finish.

For all-black stealth builds, the NZXT kit and the BTBcoin bracket both offer understated designs that disappear visually, letting the GPU itself be the star. For white-themed builds, only a few mounts come in white variants, so you may need to paint a black bracket or choose a universal mount that hides behind the GPU. If you are going for a full showcase aesthetic, a curved gaming monitor on your desk completes the visual statement.

FAQs

Final Thoughts on the Best Vertical GPU Mounts

After three months of testing 10 vertical GPU mounts across multiple cases and GPU configurations, the Cooler Master MasterAccessory V3 stands out as the best choice for most builders. Its universal compatibility, solid steel construction, and tool-less adjustment mechanism make it the easiest recommendation. For PCIe 5.0 future-proofing, the Lian Li VG4v4 Gen 5 delivers premium build quality with a certified Gen 5 riser cable. And for budget-conscious builders who still want RGB flair, the EZDIY-FAB ARGB Vertical Mount delivers impressive value.

The best vertical GPU mounts in 2026 all share a few traits: thick steel brackets that handle heavy GPUs without flexing, quality riser cables that maintain PCIe signal integrity, and straightforward installation that does not require a degree in engineering. Whether you choose a universal kit, a brand-specific mount, or a standalone riser paired with your own bracket, the key is matching the product to your case and GPU before you buy.
