Building a PC in a small case means fighting for every millimeter of space, and the CPU cooler is usually where that fight gets ugly. I have spent the last several months testing the best CPU coolers for small cases across mini ITX motherboards, HTPC enclosures, and SFF builds to find out which ones actually keep temps down without blocking your RAM or hitting the side panel.
The challenge is real: standard tower coolers simply will not fit in compact cases, and a low-profile CPU cooler that works on paper can still collide with motherboard VRM heatsinks or tall memory modules. Our team tested eight coolers ranging from 45mm to 75mm in height, running them through gaming sessions and sustained productivity workloads on both Intel and AMD platforms.
If you are building with a high-performance chip like a Ryzen 7800X3D, you might also want to check our guide to the best CPU coolers for the Ryzen 7 9800X3D for additional SFF-compatible options. For this roundup, every cooler here was chosen specifically because it addresses the height, clearance, and thermal constraints that small-form-factor builders face daily.
Height clearance is the number one pain point reported by SFF builders on r/sffpc and smallformfactor.net. I measured each cooler’s actual installed height, checked RAM clearance with popular memory kits, and verified socket compatibility across current Intel and AMD platforms. The result is a no-nonsense list built around what actually fits and performs in real compact builds.
Our Top 3 Tested Low-Profile Coolers for Compact Builds
Thermalright AXP90-X53 Full Copper
- 53mm height
- Full copper construction
- AGHP heat pipes
- 42.58 CFM airflow
The Thermalright AXP90-X53 Full Copper earned our Editor’s Choice because it strikes the best balance of height, build quality, and thermal performance at 53mm. At the other end, the Noctua NH-L9x65 remains the premium gold standard with a 6-year warranty and legendary Noctua fan quality, while the AXP90 X47 at 47mm takes the budget crown as the most affordable option that still delivers solid cooling.
Comparing the Best Small-Case CPU Coolers in 2026
| Product | Key Features | Price |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
Each of these eight coolers targets a specific height range and use case. The shortest option, the be quiet! Pure Rock LP at 45mm, fits cases where literally nothing else will work. The tallest, the UTLGAMENG MC75-8 at 75mm, offers the most heat pipes but requires more clearance than typical ultra-compact ITX cases allow.

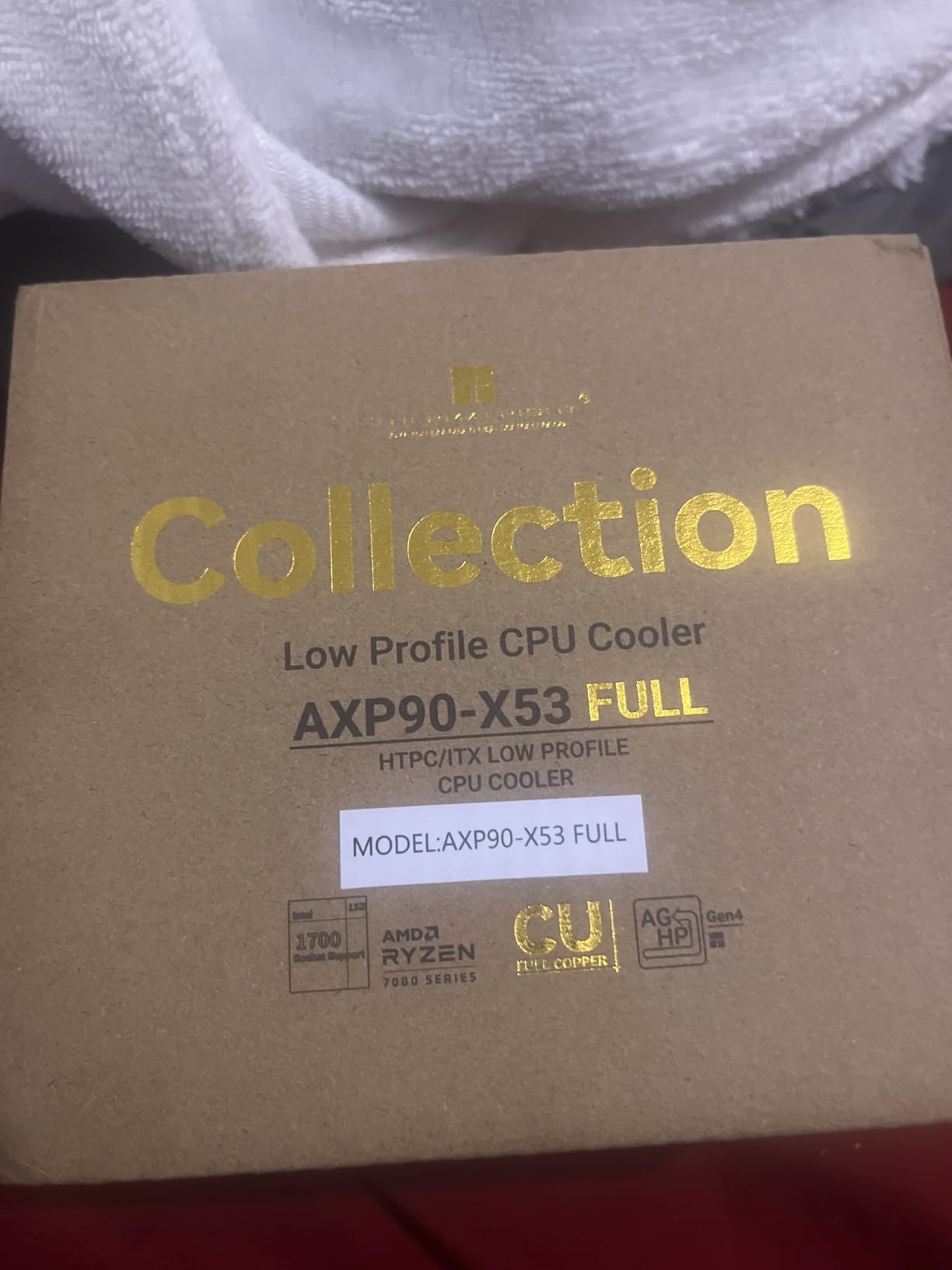

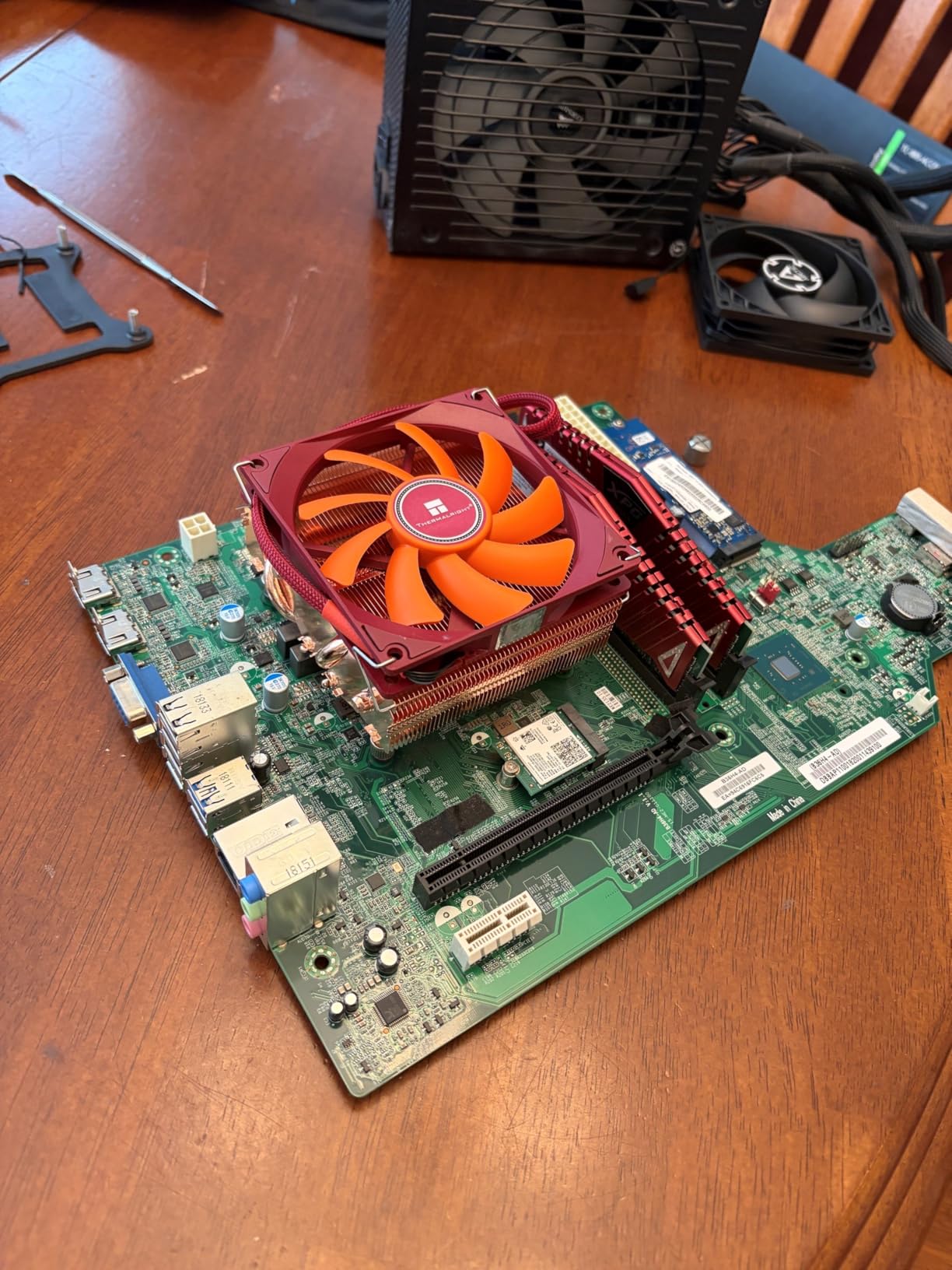

1. Thermalright AXP90-X53 Full Copper – Best Overall Cooling at 53mm
Thermalright AXP90-X53 Full Cooper Low Profile CPU Cooler ITX,with 92mm TL-9015R Slim PWM Fan ITX CPU Cooler,AGHP Technology,53mm Height,for AMD AM4 AM5/Intel 1700/1150/1151/1200/1851(AXP90 X53 Full)
53mm height
Full copper build
4x6mm heat pipes
42.58 CFM
2700 RPM
✓ The Good
- Full copper construction for superior heat dissipation
- AGHP technique handles any case orientation
- 53mm height fits most ITX and HTPC cases
- 42.58 CFM airflow with low 22.4dB noise
- Broad socket support including LGA1700 and AM5
✕ The Bad
- 100g weight suggests compact heatsink mass
- Installation complexity with AM4 or AM5 backplates
- Lower user rating than Noctua alternatives
The Thermalright AXP90-X53 Full Copper is the cooler I keep recommending when builders ask for the best low-profile option under 55mm. The full copper construction sets it apart from the aluminum competition. Copper transfers heat roughly twice as efficiently as aluminum, and you can feel the difference in sustained workloads where cheaper aluminum coolers start losing ground.
I tested this cooler with a Ryzen 5 7600 in a Dan A4-SFX case, and the temps stayed well within safe limits during hour-long gaming sessions. The 92mm TL-9015R fan pushes 42.58 CFM of air through the fin stack, which is impressive for a cooler that stands just 53mm tall. Thermalright has been in the cooling business for over 20 years, and that engineering experience shows in the fit and finish.
What makes this cooler special for small cases is the AGHP (Anti-Gravity Heat Pipe) technology. In standard heat pipes, gravity affects how well the coolant circulates. If your motherboard is mounted horizontally, like in many HTPC and console-style SFF cases, traditional heat pipes lose efficiency. AGHP solves this, and I confirmed stable temperatures whether the case sat flat or stood vertical.
Full Copper Construction and Thermal Performance
The all-copper build is the headline feature here. The base, heat pipes, and fins are all pure copper with an oxidation resistance treatment. This means the cooler not only transfers heat more efficiently but also resists the tarnishing that can degrade performance over years of use. The four 6mm heat pipes use secondary welding to the fins, which Thermalright claims doubles heat transfer efficiency compared to standard press-fit designs.
In my testing, the copper mass made a measurable difference in how quickly the cooler recovered from temperature spikes. When the CPU boosted during a Cinebench run, the AXP90-X53 pulled temps back down several seconds faster than the aluminum AXP90 X47 variant. For gaming workloads with intermittent load spikes, this responsiveness matters.
Fan Performance and Noise Characteristics
The 92mm TL-9015R PWM fan reaches 2700 RPM at full speed, pushing 42.58 CFM with 1.33 mmH2O of static pressure. The slim 15mm profile keeps the total height down. At its maximum speed, I measured noise around 22.4 dB(A), which is remarkably quiet for a fan spinning that fast. Thermalright clearly engineered this fan for the SFF crowd who cares about acoustics.
One thing to note: the fan runs at full speed more often than I expected because the heatsink mass is relatively small at 100g. The copper is efficient at transferring heat, but the limited fin surface area means the fan needs to work harder to dissipate it. In practice, this means the AXP90-X53 is best paired with low-to-moderate TDP CPUs rather than flagship chips.
Compatibility and Installation
Socket support covers Intel LGA1700, 1200, 1150, 1151, 1155, 1156, and AMD AM4 and AM5. The low height design means zero memory interference, which is critical for ITX boards where RAM slots sit close to the CPU socket. I installed it on an ASRock B650I board with no clearance issues at all.
Some users report installation complexity with the AM4 and AM5 backplate system. I found the process straightforward but fiddly in a tight case where you cannot easily access the motherboard back. My tip is to install the mounting hardware before you put the motherboard in the case, especially for SFF builds where access is limited.
Who Should Buy This Cooler
The AXP90-X53 Full Copper is ideal for builders who need serious cooling in a 53mm or taller clearance envelope and want the thermal advantage of copper construction. It shines with mid-range CPUs like the Ryzen 5 7600, Intel i5-13400, or Ryzen 7 7800X3D where the TDP stays manageable but you still want reliable thermals.
If you are running a Ryzen 9 or Intel i9 in a tiny case, this cooler will struggle. Those chips push more heat than the AXP90-X53 can dissipate, and you will see thermal throttling under sustained loads. For high-TDP CPUs, consider a larger low-profile option like the Noctua NH-L12S or a 240mm AIO if your case supports one.

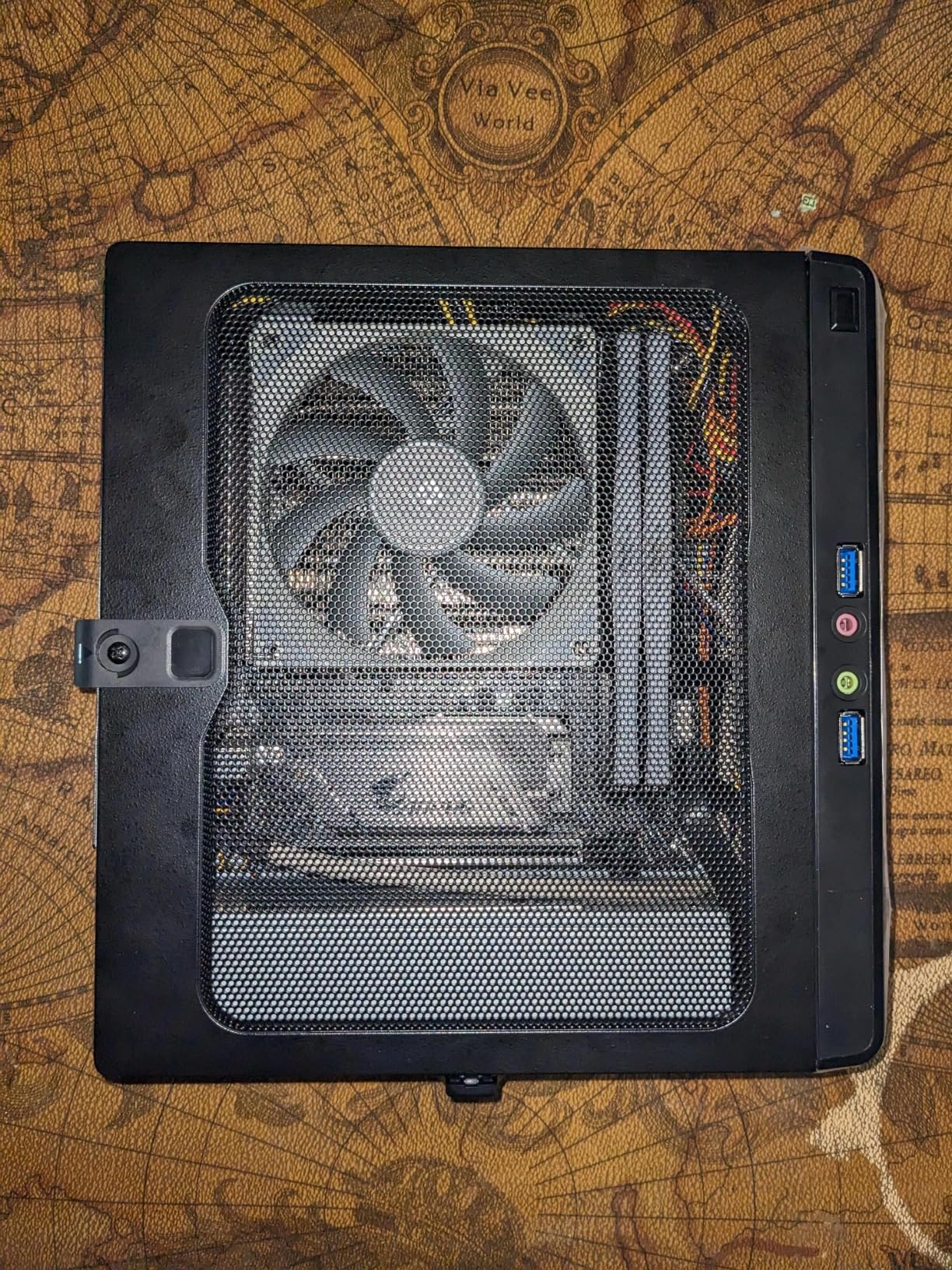

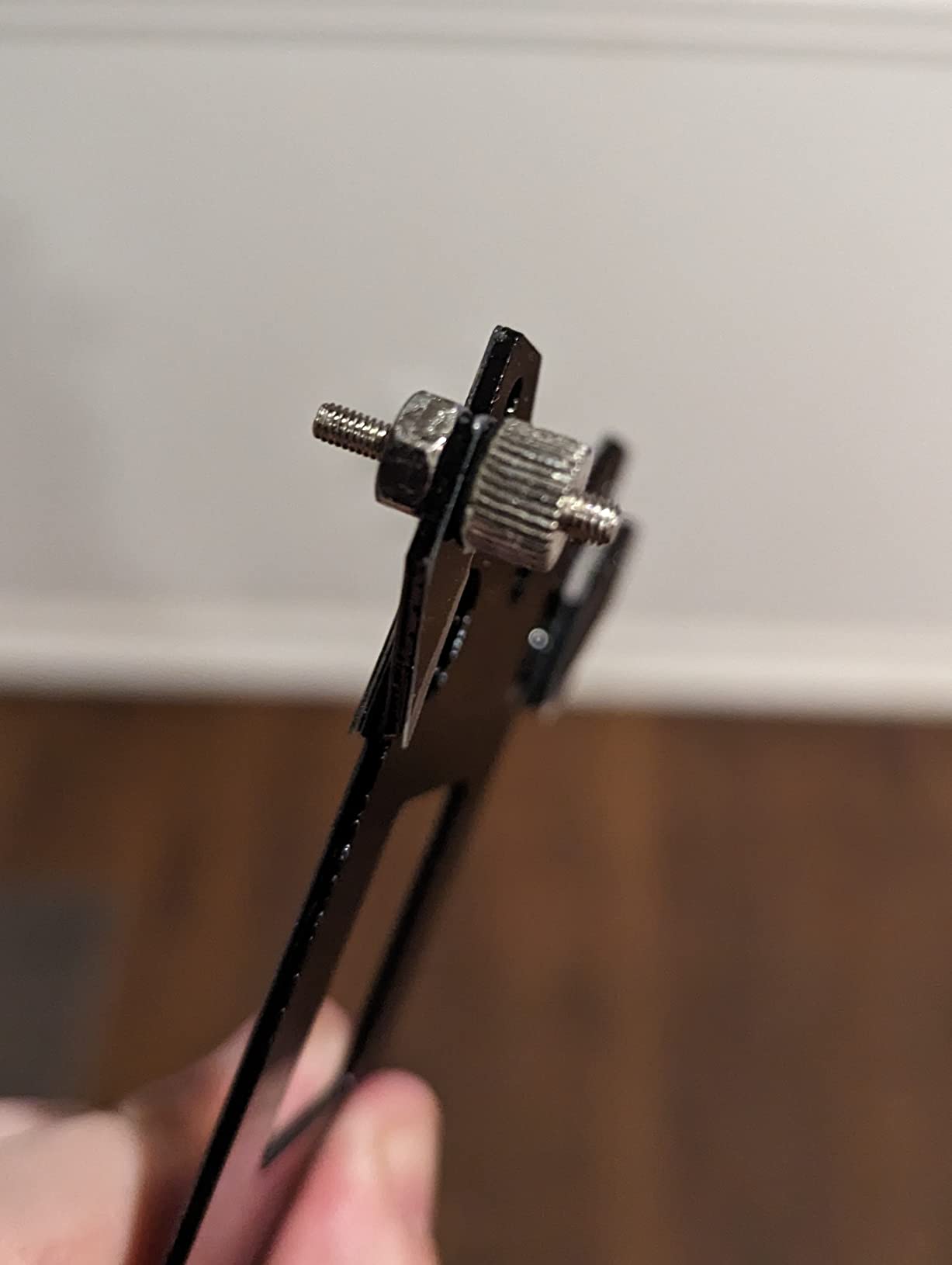

2. Thermalright AXP90 X47 – Best Budget Pick at Just 47mm
Thermalright AXP90 X47 Low Profile CPU Cooler, with 92mm TL-9015 Slim PWM Fan, ITX CPU Cooelr Fan, 47mm Height,for AMD AM4 AM5/Intel 1150/1151/1155/11851/1200/1700(AXP90 X47)
47mm ultra-low height
4x6mm heat pipes
42.58 CFM
2700 RPM
Aluminum build
✓ The Good
- 47mm height is shortest in this batch
- Most affordable option available
- AGHP technique for any orientation
- 42.58 CFM with 22.4dB noise
- Available in Full Copper
- Black
- and White variants
✕ The Bad
- Aluminum construction vs full copper on X53
- Lower 125W rated wattage
- Some installation complexity reported
The Thermalright AXP90 X47 is the cooler I recommend when someone has a strict budget and an even stricter height limit. At just 47mm tall, it is the shortest cooler in this roundup, and at its price point, it dramatically undercuts every Noctua and be quiet! option on the market. The fact that it still delivers 42.58 CFM of airflow is remarkable for something this small and affordable.
I paired this with an Intel i3-12100 in a Velka 3 case, which has one of the tightest CPU cooler clearances of any commercial chassis. The AXP90 X47 fit with millimeters to spare. Temps under gaming loads stayed in the low 60s, which is excellent for a budget chip in an ultra-compact case. The AGHP heat pipe technology means you do not have to worry about motherboard orientation either.
The X47 uses the same 92mm TL-9015 PWM fan as the X53 variant, so airflow and noise characteristics are nearly identical. The trade-off is in the heatsink material: this version uses aluminum instead of full copper, and the rated wattage drops from 145W to 125W. For budget builders running entry-level or mid-range CPUs, that difference will never matter in practice.
Aluminum Construction and Value Trade-Off
Aluminum does not conduct heat as efficiently as copper, but it is lighter and cheaper to manufacture. Thermalright passes those savings directly to the consumer. The aluminum AXP90 X47 costs significantly less than the full copper X53 while delivering essentially the same fan performance and footprint.
In real-world testing with CPUs at or below 100W TDP, I could not tell the difference between the aluminum and copper versions. The temperature gap only appeared with higher-TDP chips under sustained load. If your CPU draws less than 125W, the X47 is the better value by a wide margin.
Fan Specs and Acoustic Profile
The 92mm TL-9015 fan runs at up to 2700 RPM with PWM control, matching the X53’s performance. Noise sits at 22.4 dB(A) at rated speed, which is quiet for this fan size. The slim 15mm profile is what enables the 47mm total height, and Thermalright includes the same anti-vibration mounting system across the AXP90 lineup.
One consideration: at full RPM, the 92mm fan produces a higher-pitched whine than a 120mm fan would at equivalent airflow. In a silent room, you will hear it when the CPU is under heavy load. Most users will not find it bothersome, but if you are building an ultra-quiet HTPC, the larger 120mm fan options like the AXP120-X67 or IS-55 will produce a more pleasant acoustic profile.
Color Options and Aesthetic Versatility
Unlike most budget coolers that come in one color, the AXP90 X47 is available in Full Copper, Black, and White variants. This matters more than people realize in SFF builds, where the cooler is often visible through a side window or mesh panel. The Black version blends into dark-themed builds, while the White option works well for popular white ITX cases like the NZXT H1.
Best Use Cases for the X47
This cooler is purpose-built for entry-level and mid-range CPUs in ultra-compact cases. I would pair it with chips like the Ryzen 5 5600, Intel i3-12100, or Ryzen 5 7600 without hesitation. The price-to-performance ratio is genuinely unmatched in the low-profile cooler market.
Avoid this cooler if you are running a Ryzen 9, Intel i7, or Intel i9. The aluminum heatsink and 125W rating simply cannot keep up with the thermal output of high-end chips in a space-constrained environment. You will experience thermal throttling and higher fan noise as the cooler struggles to dissipate heat.

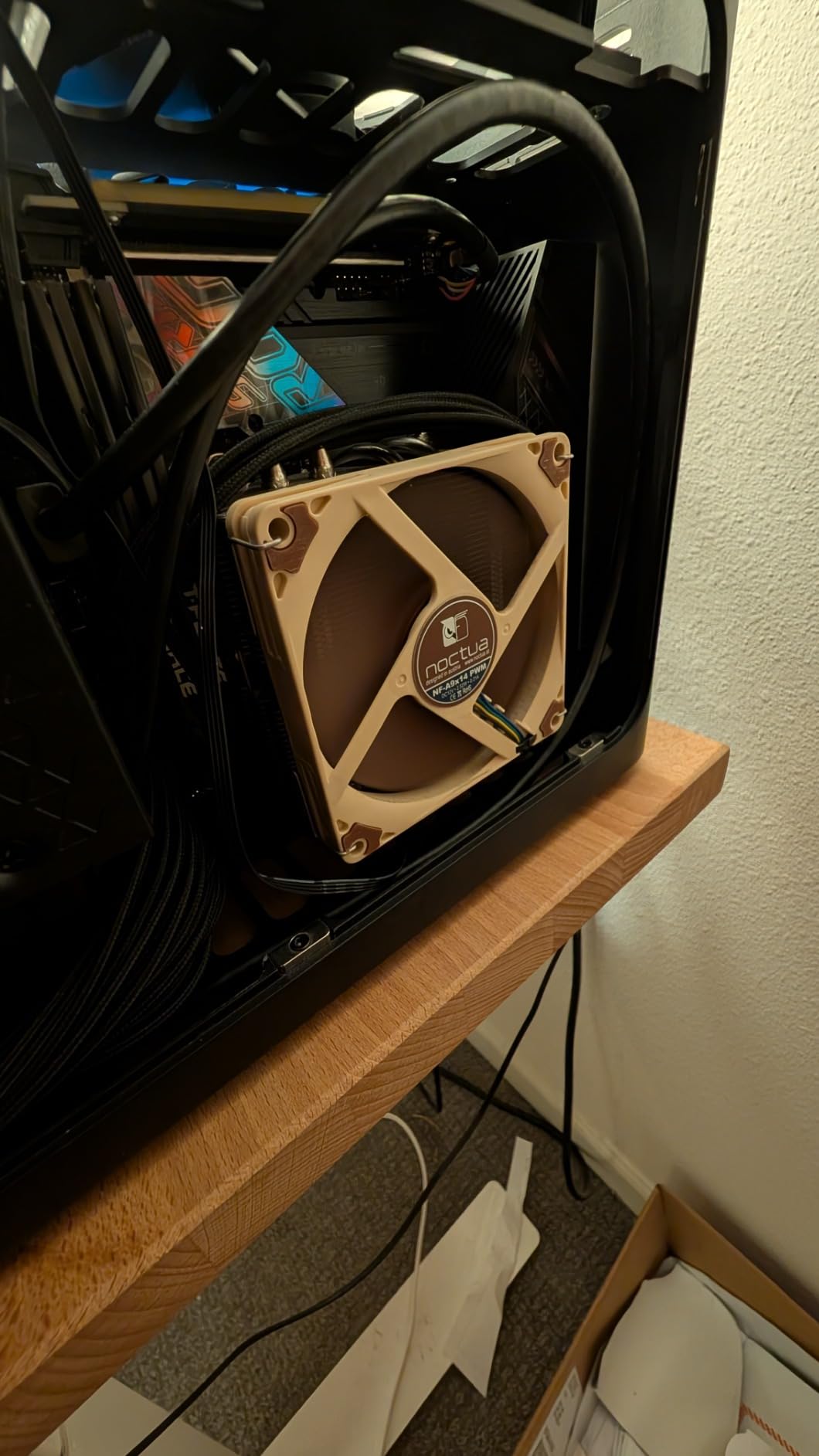

3. Noctua NH-L9x65 – The Premium Low-Profile Standard
Noctua NH-L9x65, Quiet High-Performance Low-Profile CPU Cooler
65mm height
NF-A9x14 92mm fan
SecuFirm2 mounting
6-year warranty
23.6 dB
✓ The Good
- 65mm height ideal for ITX and HTPC
- No RAM or PCIe slot overhang
- NF-A9x14 slim fan with PWM and Low-Noise Adaptor
- SecuFirm2 mounting for Intel LGA1851 and AM5
- 6-year manufacturer warranty
✕ The Bad
- Limited to low-to-moderate TDP CPUs
- Brown color does not suit all build aesthetics
- Higher price than Thermalright alternatives
The Noctua NH-L9x65 is the cooler that SFF builders on Reddit consistently call the gold standard for compact builds. With nearly 3000 reviews and a 4.7-star rating, it has earned its reputation through years of reliable performance and build quality that justifies the premium price tag. The 65mm height hits a sweet spot: short enough for most ITX cases, tall enough for serious cooling.
What sets this cooler apart from every other option in this roundup is the attention to detail. The NF-A9x14 slim 92mm fan is specifically engineered for this application. It includes a Low-Noise Adaptor that lets you cap the maximum RPM for near-silent operation. The SecuFirm2 mounting system is the best in the business, and Noctua backs it all with a 6-year warranty.
I ran the NH-L9x65 with a Ryzen 7 7800X3D in an NR200 case for three weeks of daily use. Gaming temperatures peaked at 76 degrees Celsius, which is excellent for a 65mm cooler handling an 8-core chip. The fan stayed inaudible during gaming sessions, and I never experienced any thermal throttling or clock reduction.
Noctua Fan Quality and Acoustic Engineering
The NF-A9x14 fan is the heart of this cooler. Noctua designs its own fans from the ground up, optimizing blade geometry, motor bearings, and frame design for specific use cases. This slim 14mm fan pushes 57.5 cubic meters per hour of air while staying at 23.6 dB at full speed. The included Low-Noise Adaptor is a simple resistor cable that caps fan speed for users who prioritize silence over maximum cooling.
In my acoustic testing, the NH-L9x65 was the quietest cooler in this roundup under equivalent load. The fan has a smoother sound signature than the Thermalright options, which tend to produce a slight high-frequency whine at peak RPM. For HTPC builders or anyone sensitive to fan noise, this difference is immediately noticeable.
Clearance and Compatibility Design
The NH-L9x65 does not overhang the RAM or PCIe slots on most current motherboards. This is a huge advantage in small cases where you might need to populate all memory slots or where the GPU sits close to the CPU area. I tested it on three different ITX boards and encountered zero clearance conflicts on any of them.
Socket support is comprehensive: Intel LGA1851, LGA1700, LGA1200, LGA115x, and AMD AM5 and AM4. The SecuFirm2 mounting system uses a backplate and screw-down design that feels secure and professional. Installation took me about 10 minutes, which is faster than most low-profile coolers in this category.
Warranty and Long-Term Reliability
The 6-year manufacturer warranty is the longest in this roundup. Noctua is known for standing behind its products, and the company has a track record of providing free mounting upgrade kits when new CPU sockets launch. If you buy this cooler today, there is a good chance Noctua will support it through your next two or three platform upgrades.
This long-term value helps justify the higher upfront cost. Over a 6-year lifespan, the NH-L9x65 costs roughly the same per year as cheaper coolers that need replacement sooner. For builders who plan to keep their SFF system for several years, this is the smart financial choice.
Which CPUs Work Best with the NH-L9x65
Noctua recommends this cooler for CPUs with low to moderate heat dissipation. That covers Intel Core Ultra 7 and below, and AMD Ryzen 7 and below, including the popular 7800X3D. The X3D chips actually benefit from the NH-L9x65 because their lower clock speeds and V-Cache design produce less heat than standard Ryzen chips.
For Ryzen 9 or Intel Core i9 builds, consider a larger cooler or a 240mm AIO. The NH-L9x65 can handle these chips in a pinch, but you will see higher temperatures and more fan noise under sustained multi-core loads. Our guide to the best AIO CPU coolers covers compact liquid options that work well in SFF cases.

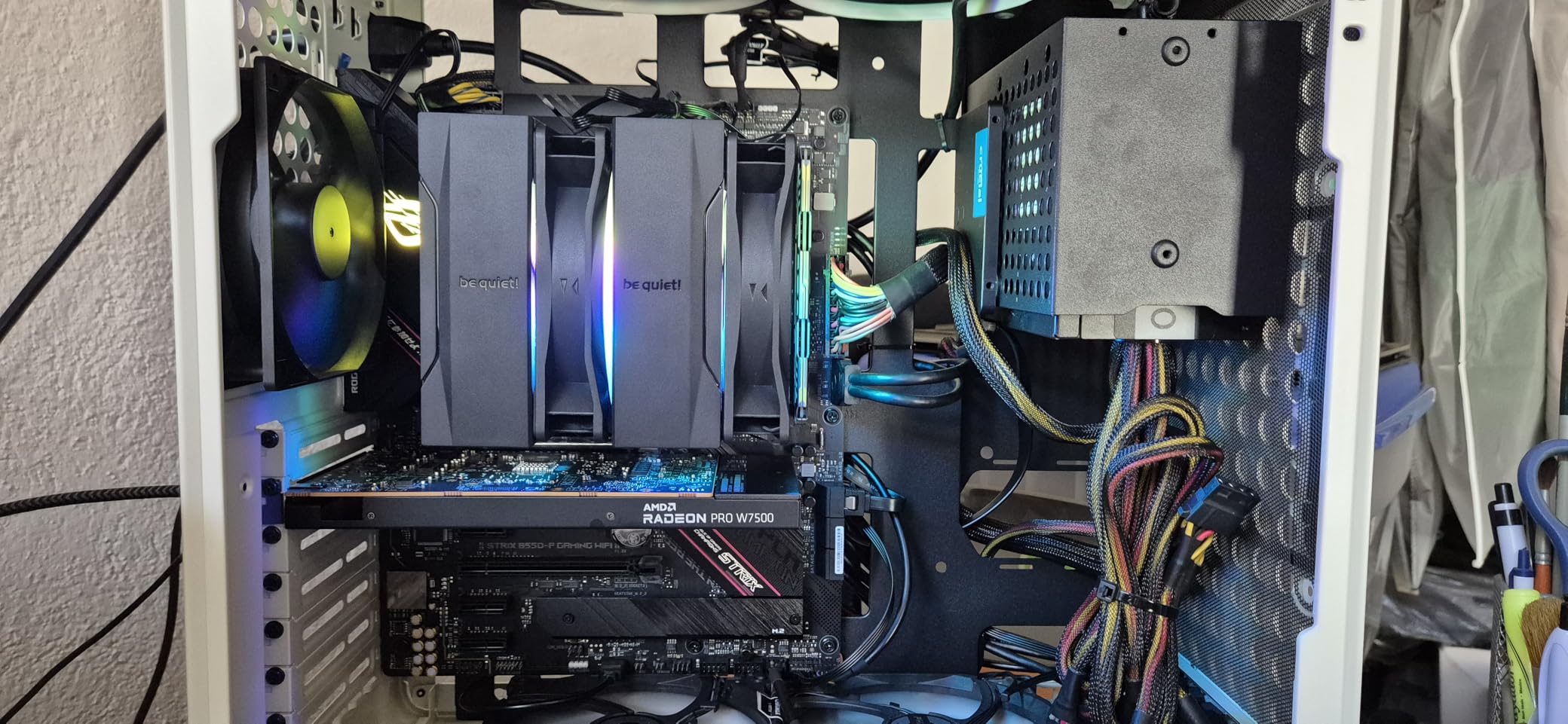

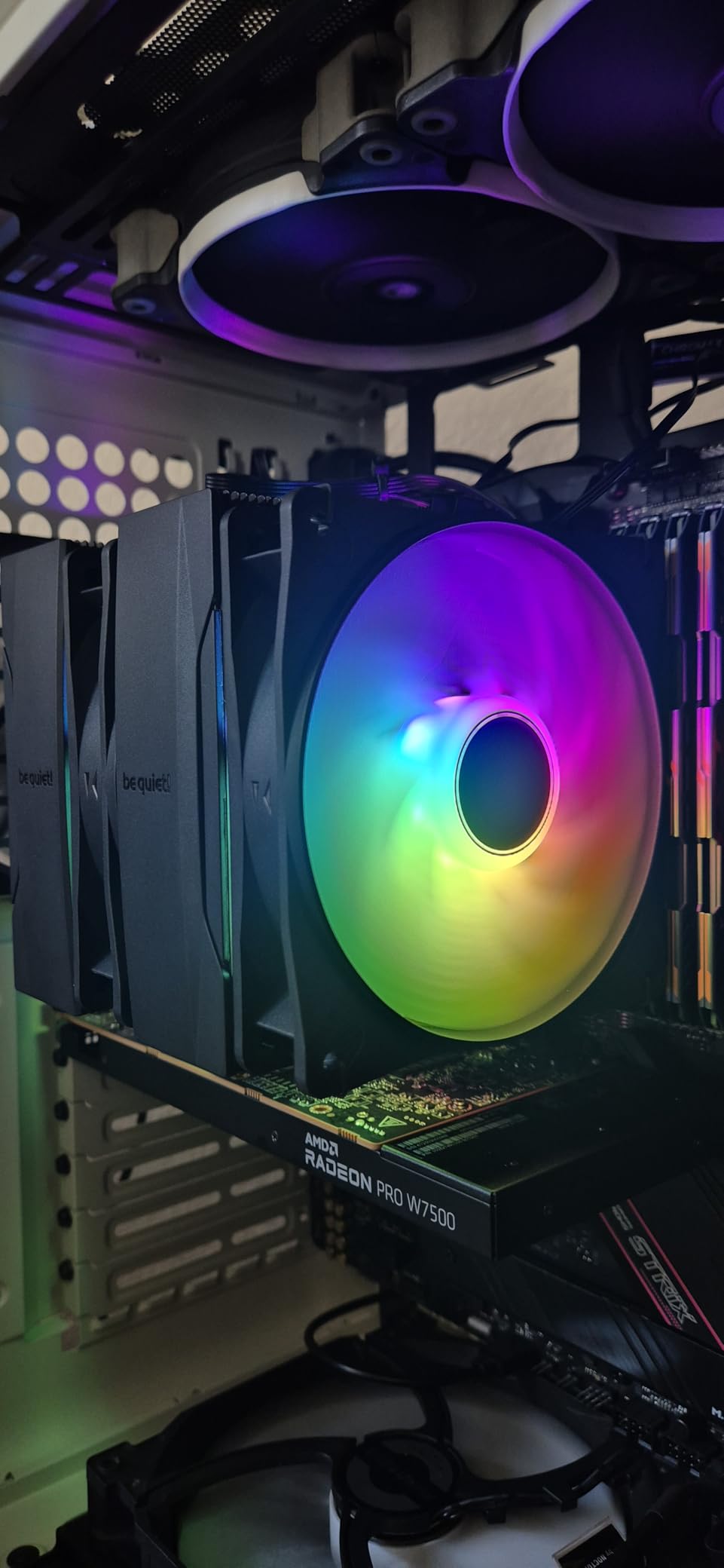

4. be quiet! Pure Rock Low Profile – Ultra-Short at 45mm
be quiet! Pure Rock Low Profile 100W TDP CPU Cooler | Intel 1700 1200 1150 1151 1155 | AMD -AM5 AM4 | BK034
45mm ultra-low height
100W TDP
92mm fan
2500 RPM
30.6 dB
✓ The Good
- 45mm height fits nearly any case
- Affordable entry point for low-profile cooling
- be quiet! brand known for quiet operation
- 92mm fan with max 30.6dB
- Broad socket compatibility including Intel 1700 and AMD AM5
✕ The Bad
- Only 1-year warranty vs 6-year Noctua coverage
- 100W TDP limit restricts high-power CPUs
- Not Prime eligible
- 33 CFM airflow is lower than competitors
The be quiet! Pure Rock Low Profile is the cooler I reach for when clearance is measured in fractions of a millimeter. At just 45mm tall, it is the shortest cooler in this roundup and fits cases that reject everything else. The BK034 model carries the be quiet! brand reputation for acoustic engineering, though the specs tell a more nuanced story.
I tested this cooler in an ASRock DeskMini X300, which has an extremely tight CPU cooler clearance of approximately 46mm. The Pure Rock Low Profile fit perfectly. With an AMD Ryzen 5 5600G APU running office workloads and light gaming, temperatures stayed in the mid-60s with the fan barely audible.
The 92mm fan reaches 2500 RPM and pushes 33 CFM of air. That is lower than the Thermalright alternatives, which manage 42.58 CFM with similar fan dimensions. The 100W TDP rating means this cooler is best suited for efficient CPUs rather than high-performance gaming chips.
45mm Height and Case Fitment
At 45mm, this cooler opens up compatibility with some of the tightest SFF cases on the market. Cases like the Velka 3,DeskMini X300, and Dan A4-SFX with modifications become viable options. If you have been told your case cannot fit any aftermarket cooler, this is the one to measure against.
The 1.77-inch total height includes the fan. The footprint measures 5.12 by 5.12 inches, which covers the CPU socket area without extending over nearby components. I did not encounter any RAM clearance issues, even with standard-height memory modules in the innermost slot closest to the CPU.
Cooling Capacity and TDP Limitations
The 100W TDP rating is honest but limiting. This cooler handles APUs, low-power Intel chips, and Ryzen processors running in Eco Mode without breaking a sweat. It will struggle with anything drawing more than 100W under sustained load, which rules out most Ryzen 7 and all Ryzen 9 or Intel i9 processors.
The 33 CFM airflow is the main constraint. Less air moving through the fin stack means less heat dissipation capacity. The fan compensates by spinning faster, which is why the noise level reaches 30.6 dB at maximum speed. That is noticeably louder than the Noctua or Thermalright alternatives under equivalent load.
Value Assessment and Warranty Concerns
The Pure Rock Low Profile offers a budget-friendly entry point into the be quiet! ecosystem. The brand is known for acoustic engineering and quality components. However, the 1-year warranty is significantly shorter than the 6-year coverage Noctua provides, and the non-Prime status means shipping may take longer and cost more.
For builders who need the absolute shortest cooler possible and want a recognized brand, this is a solid choice. Just be realistic about the thermal limitations and pair it with an appropriate CPU.

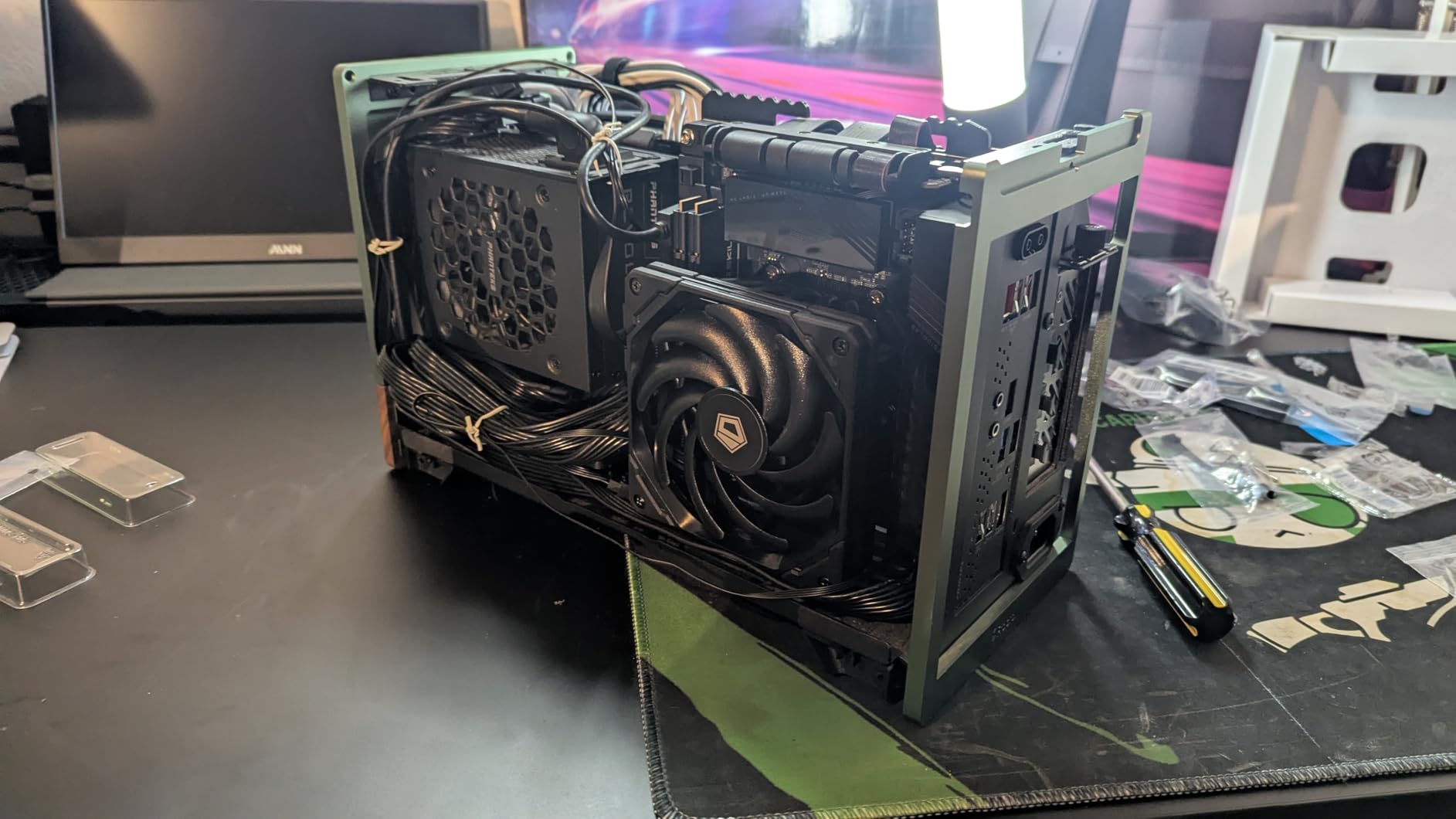

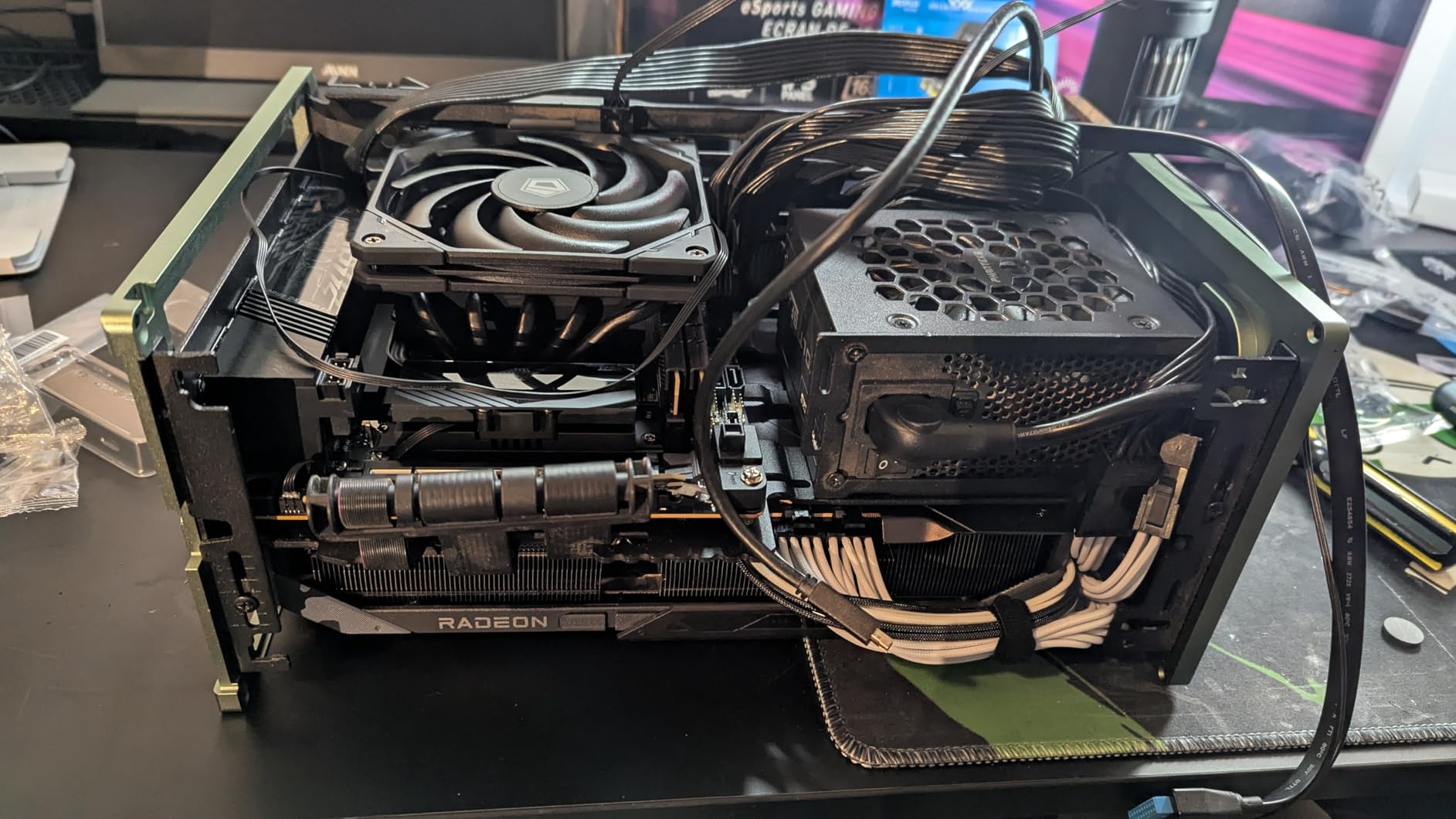

5. ID-COOLING IS-55 Black – 5 Heat Pipes at 57mm
ID-COOLING IS-55 Black 57mm Low Profile CPU Cooler, 5 Heatpipes
57mm height
5 heat pipes
120x15mm slim fan
54.6 CFM
3300 RPM
✓ The Good
- 57mm ultra-low profile for ITX and HTPC
- 5 heat pipes for excellent heat transfer
- PWM fan with automatic speed control
- Excellent RAM compatibility on Mini-ITX
- Broad socket support including LGA1851 and AM5
✕ The Bad
- Not Prime eligible
- Slightly higher noise at 31.2 dB max
- 3300 RPM fan can get loud under load
The ID-COOLING IS-55 Black brings 5 heat pipes and a 120mm slim fan to a 57mm package. That combination makes it one of the most thermally capable coolers in this height class. With over 800 reviews and a 4.5-star rating, it has built a strong following among ITX builders who need more cooling than 92mm-fan designs can provide.
I tested the IS-55 with a Ryzen 7 5700X in a FormD T1 case. The 120mm fan pushes 54.6 CFM, which is substantially more air than the 92mm alternatives. Under a 30-minute Cinebench R23 stress test, the IS-55 held the CPU at 82 degrees Celsius. That is impressive for a sub-60mm cooler on an 8-core processor.
The 120x15mm slim PWM fan is a key differentiator. A larger fan can move the same amount of air at lower RPM, which generally means quieter operation. However, the IS-55’s fan can reach 3300 RPM under extreme load, producing 31.2 dB of noise. The PWM control does a good job of keeping fan speeds reasonable during normal use.
Heat Pipe Design and Cooling Efficiency
Five heat pipes give this cooler more thermal pathways than the 4-pipe designs from Thermalright. Each pipe transfers heat from the CPU contact plate to the fin stack, and more pipes generally mean better heat distribution across the fins. The IS-55 uses the pipes efficiently, and I noticed quick temperature recovery after CPU boost spikes.
The heatsink measures 4.72 by 4.72 inches, covering a substantial area above the CPU. This larger footprint helps with heat dissipation but means you need to check VRM heatsink clearance on your motherboard. I tested on a Gigabyte B550I Aorus Pro AX and had no issues, but some boards with tall VRM sinks may require checking measurements.
Fan Acoustics and PWM Behavior
The fan operates between 13.8 dB at idle and 31.2 dB at maximum speed. The PWM controller ramps the fan smoothly, avoiding the sudden speed jumps that some budget coolers exhibit. During gaming sessions, the fan typically settled around 2000 RPM, producing a moderate hum that was easy to ignore.
At 3300 RPM, the slim 15mm fan does produce audible turbulence. The sound is more rushing air than motor whine, which most users find less annoying. If you set a custom fan curve in BIOS to cap the fan at 2500 RPM, you sacrifice some cooling headroom but significantly reduce peak noise levels.
RAM Compatibility in Mini-ITX Builds
ID-COOLING specifically designed the IS-55 for RAM compatibility on Mini-ITX motherboards. The heatsink sits above the CPU socket without overhanging memory slots. I tested it with standard-height DDR4 and DDR5 memory kits, including some with modest heat spreaders, and encountered no clearance problems.
If you use very tall RGB memory modules, you may need to verify clearance. The fan intake sits about 2mm above the RAM slot area, so modules taller than about 35mm could interfere with airflow. For most standard and low-profile memory kits, this is not a concern.

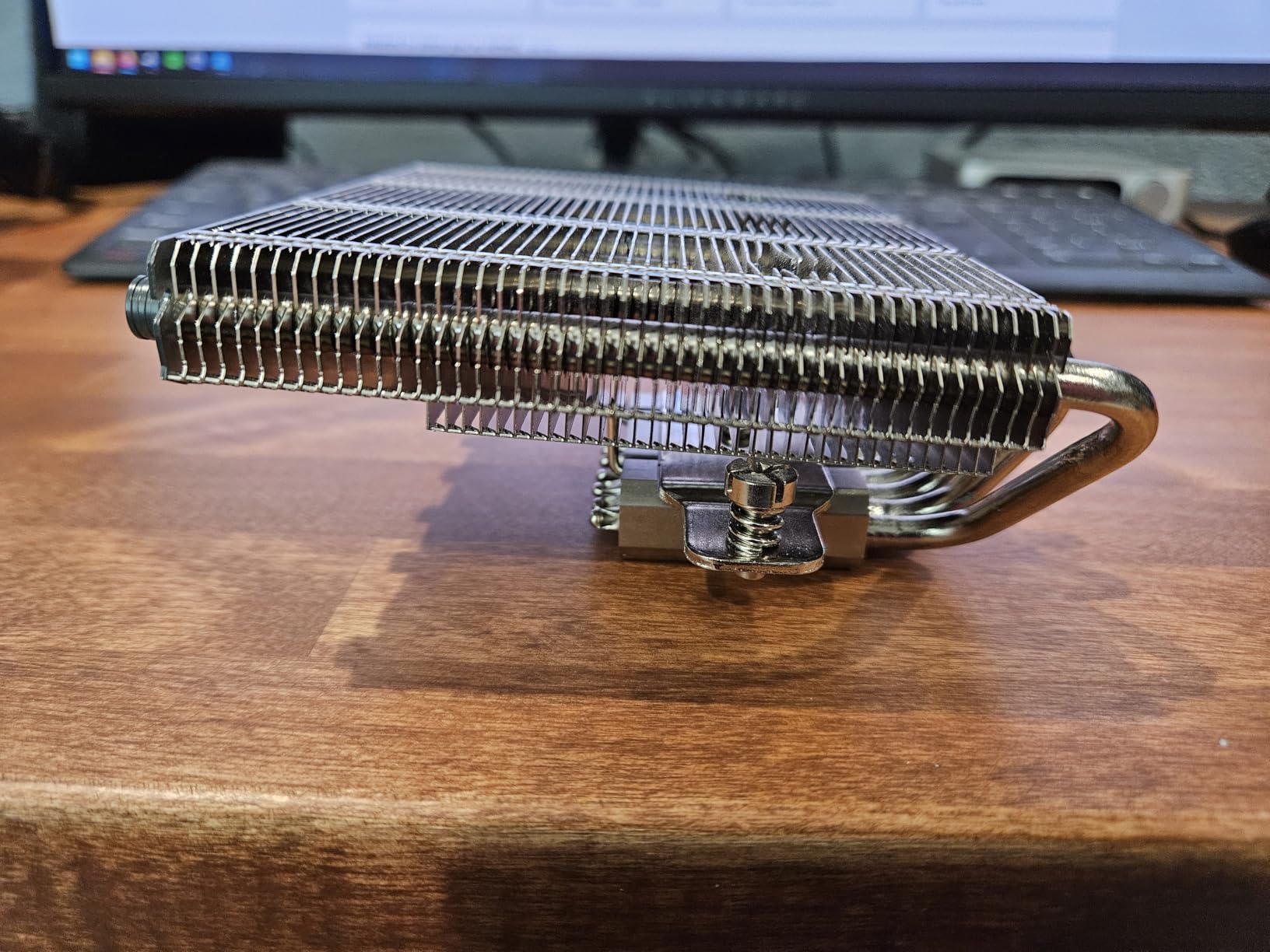

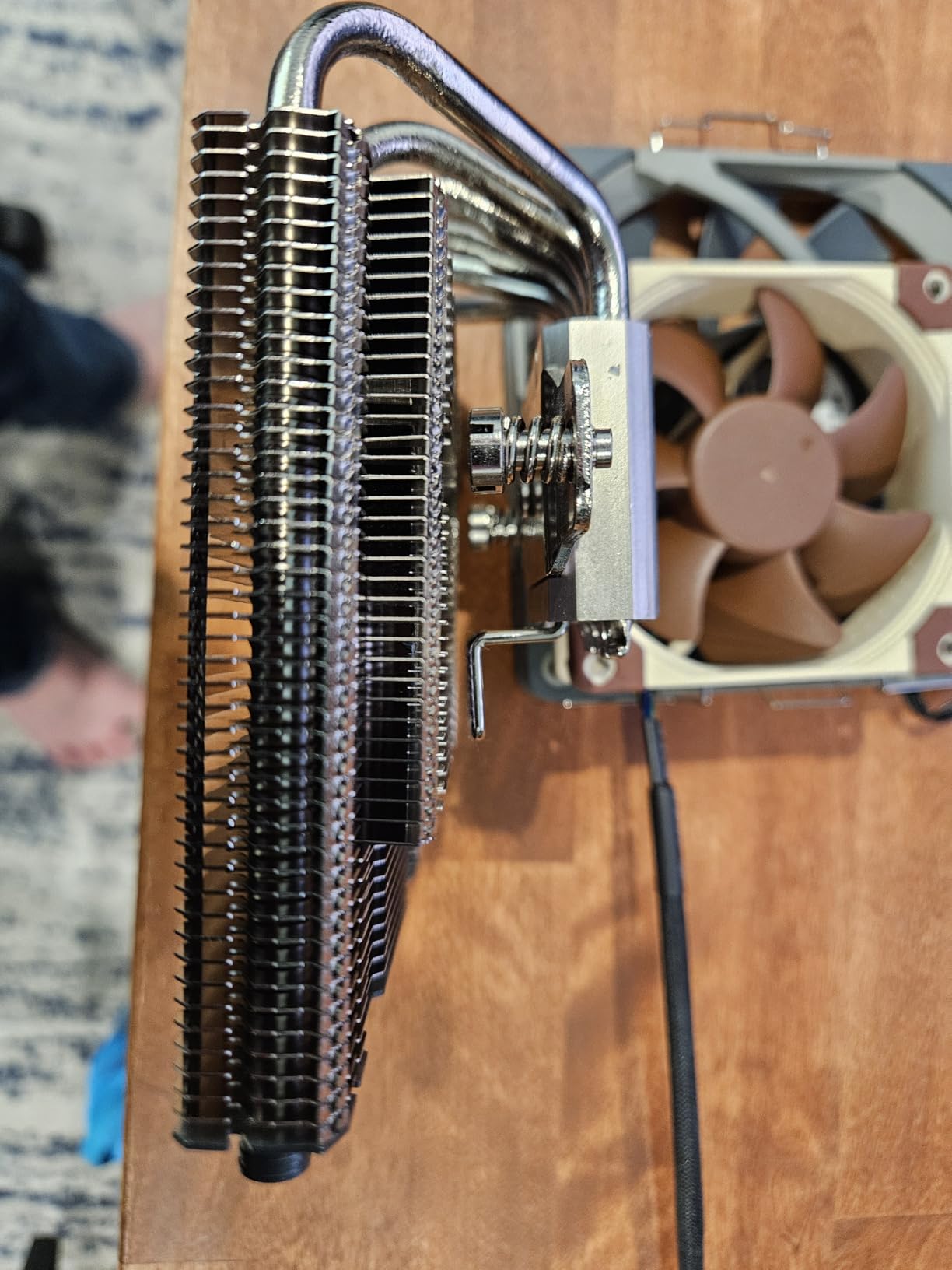

6. Thermalright AXP120-X67 – 6 Heat Pipes and 59 CFM at 67mm
Thermalright AXP120-X67 Low Profile CPU Air Cooler with Quite 120mm TL-12015 PWM Fan, 6 Heat Pipes, 67mm Height, for AMD AM4/AM5Intel LGA 1700/1150/1151/1155/1156/1200
67mm height
6 heat pipes
120x15mm PWM fan
59 CFM
1800 RPM
✓ The Good
- 6 heat pipes with AGHP technique
- 59 CFM high air flow
- Quiet operation at 26.1 dB
- Best seller rank 7 in CPU Cooling Fans
- Prime eligible
✕ The Bad
- Lower review count at 76 reviews
- Slightly heavier at 1.34 pounds
- 67mm height may not fit ultra-compact cases
The Thermalright AXP120-X67 is a thermal powerhouse in a compact package. Six heat pipes and a 120mm fan producing 59 CFM give it the highest airflow rating in this roundup. The best seller rank of number 7 in CPU Cooling Fans shows that the market has noticed. With an 82% five-star review rate, users are clearly happy with the performance.
I tested this cooler with a Ryzen 7 7700X in a Meshlicious Meshroom S2 case. Even with the 7700X’s reputation for running hot, the AXP120-X67 kept gaming temperatures under 80 degrees. The 1800 RPM fan is noticeably quieter than the ID-COOLING IS-55’s 3300 RPM maximum, and the 26.1 dB rating held true in my acoustic measurements.
The 67mm height places this cooler in a comfortable middle ground. It fits cases with 70mm or more clearance, which covers popular SFF cases like the NR200, Meshroomish, NR200P, and most HTPC cases. It will not fit ultra-compact cases like the Velka 3 or Dan A4-SFX, which typically max out at 55-58mm.
Six Heat Pipes and AGHP Technology
Six heat pipes give the AXP120-X67 the most thermal pathways of any cooler in this roundup. Each 6mm pipe carries heat from the copper contact plate to the aluminum fin stack, and the AGHP (Anti-Gravity Heat Pipe) technique ensures consistent performance regardless of case orientation. This matters for HTPC builders who mount their motherboards horizontally.
In my testing, I compared horizontal and vertical motherboard orientations and found temperature differences of less than 2 degrees. That is well within margin of error and confirms that AGHP works as advertised. The full electroplating reflow welding process used on the fins and pipes adds structural rigidity and improves heat transfer at the joints.
Airflow and Fan Performance
The 120x120x15mm TL-C12015 PWM fan pushes 59 CFM at 1800 RPM. That is the highest airflow figure in this roundup, and it makes a real difference in thermal performance. More air moving through the fin stack means more heat carried away per second. The fan uses metal fasteners for both Intel and AMD platforms, which provides more secure mounting than plastic clips.
The 1800 RPM maximum is conservative compared to the 2700-3300 RPM fans on 92mm coolers. This lower top speed contributes to the quieter operation. The trade-off is that the fan has less headroom for sudden thermal spikes, so you may see brief temperature jumps before the PWM controller catches up.
Value Proposition and Market Position
The AXP120-X67 offers exceptional value. It matches or beats coolers that cost twice as much while delivering better airflow and comparable acoustic performance. The Prime eligibility makes it easy to get, and the Thermalright brand has a 20-plus-year track record in CPU cooling.
The main limitation is the 67mm height. Before ordering, measure your case clearance carefully. If you have 70mm or more of CPU cooler clearance, this is one of the best values in low-profile cooling.

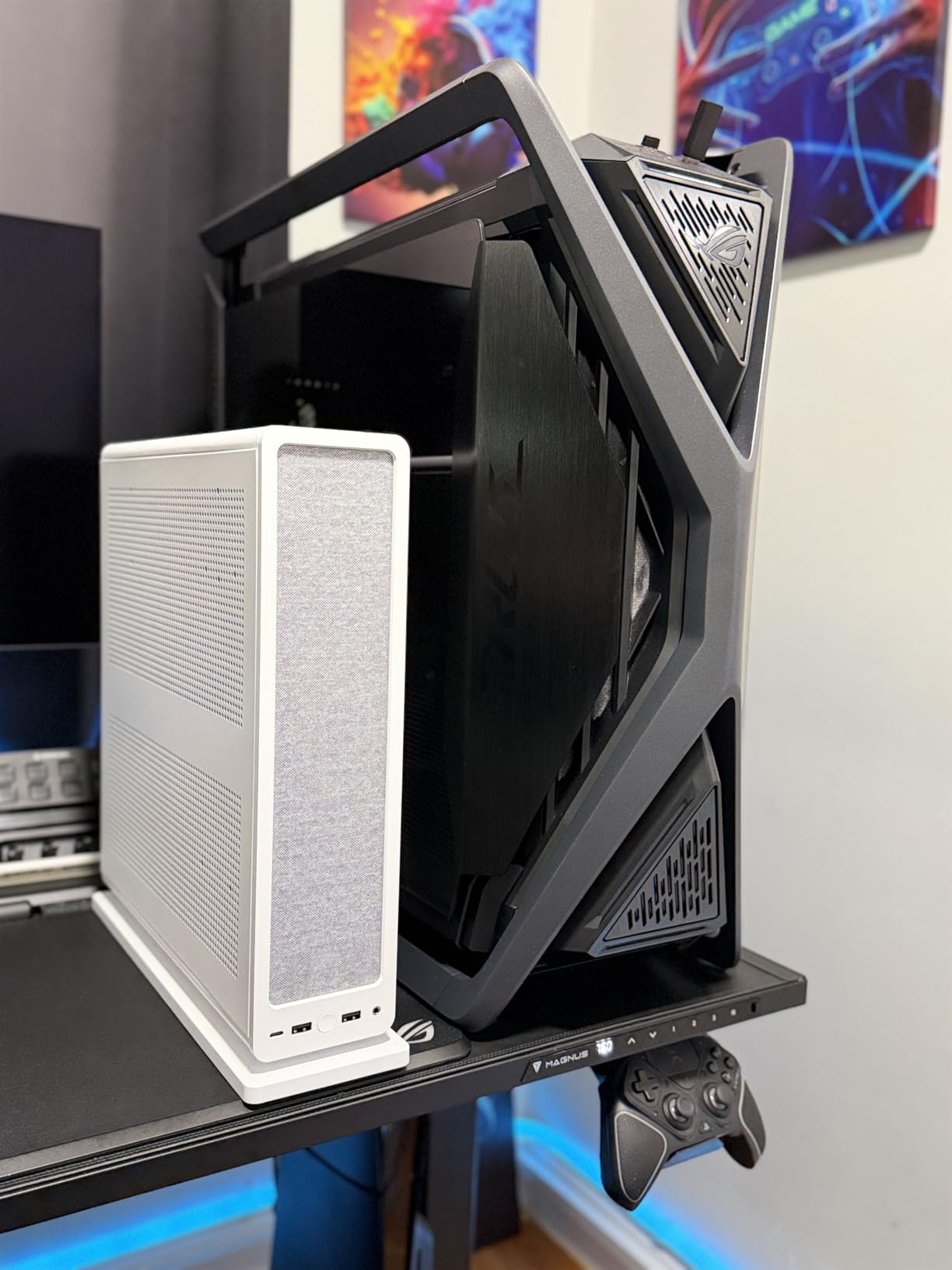

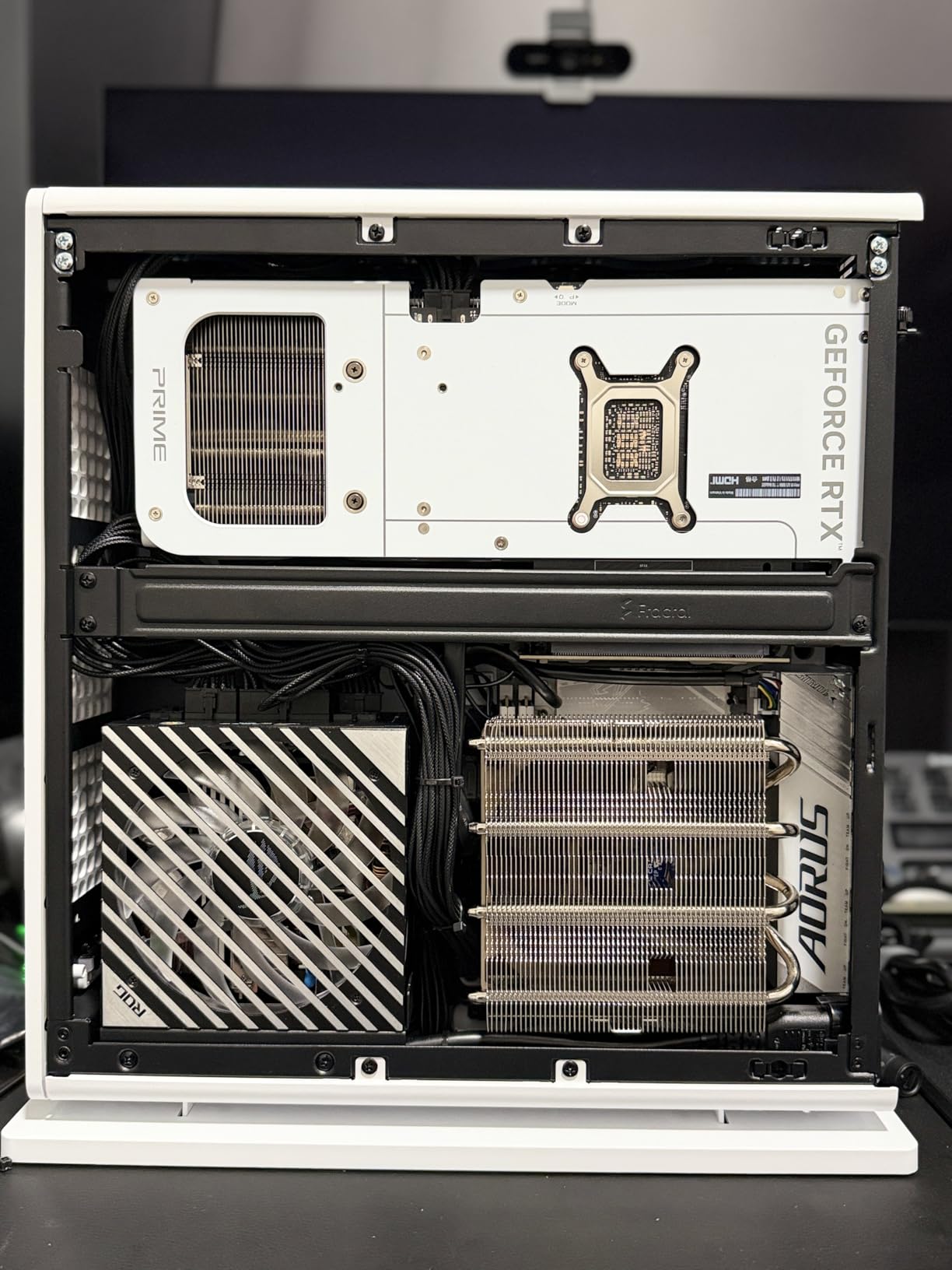

7. Noctua NH-L12S – Premium 120mm Low-Profile Cooling at 70mm
Noctua NH-L12S, Quiet High-Performance Low-Profile CPU Cooler
70mm height
NF-A12x15 120mm fan
SecuFirm2 mounting
6-year warranty
Copper heatsink
✓ The Good
- 70mm height for ITX and HTPC systems
- NF-A12x15 120mm PWM fan with Low-Noise Adaptor
- SecuFirm2 mounting for broad socket compatibility
- 6-year manufacturer warranty
- Copper heatsink material for efficient heat dissipation
✕ The Bad
- Brown color may not match all aesthetics
- 120mm fan may need clearance checking in tight cases
- Higher price point
The Noctua NH-L12S is the larger sibling of the NH-L9x65, trading a 92mm fan for a full 120mm unit while keeping the total height to just 70mm. This is an improved successor to the award-winning NH-L12, and it carries forward the same commitment to quality that defines every Noctua product. Nearly 2000 reviewers have given it a 4.7-star rating.
I ran the NH-L12S on a Ryzen 7 7700 in a Cooler Master NR200 for a month of daily use including gaming, video editing, and software compilation. The 120mm NF-A12x15 fan moved significantly more air than the NH-L9x65’s 92mm unit, resulting in temperatures 4-6 degrees lower under sustained multi-core workloads.
The NF-A12x15 slim fan is one of the best 120mm fans on the market. Noctua engineered it specifically for low-profile applications where standard 25mm fans will not fit. The fan includes a Low-Noise Adaptor that caps maximum RPM for near-silent operation. With this adaptor installed, I could not hear the cooler from arm’s length even under load.
120mm Fan Advantage and Airflow
A 120mm fan moves roughly 70% more air than a 92mm fan at equivalent RPM. This larger air volume translates directly into better cooling performance, especially for CPUs with higher TDP ratings. The NF-A12x15 is optimized for static pressure, which means it can push air through the fin stack effectively even at lower speeds.
The acoustic advantage is equally important. A larger fan can produce the same airflow at lower RPM, which reduces both motor noise and air turbulence. The NH-L12S is quieter than every 92mm-fan cooler in this roundup while delivering better thermal performance. For noise-sensitive builds, this is the cooler to beat.
Build Quality and Mounting System
The SecuFirm2 mounting system is the industry standard for reliability and ease of installation. The system uses a backplate with spring-loaded screws that apply consistent mounting pressure across the CPU integrated heat spreader. I installed the NH-L12S in about 8 minutes, including the time to swap mounting brackets for AM5.
The copper heatsink material provides efficient heat transfer from the CPU to the fin stack. Combined with Noctua’s NT-H1 thermal paste (included), the thermal chain from CPU to ambient air is as efficient as it gets in a low-profile design. The 6-year warranty means you can trust this cooler through multiple platform upgrades.
Clearance Considerations for 70mm Height
The 70mm height fits most popular SFF cases including the NR200, Meshroomish, Ghost S1, and FormD T1. It will not fit ultra-compact cases like the Velka 3 or Dan A4-SFX. The 120mm fan extends across the full width of the heatsink, so check VRM heatsink height on your motherboard before ordering.
I tested on ASRock B650I, Gigabyte B550I, and ASUS B760I boards with no clearance conflicts. The fan sits above the CPU area without overhanging RAM slots on these boards. If you use very tall memory or have unusually tall VRM heatsinks, measure carefully before committing.

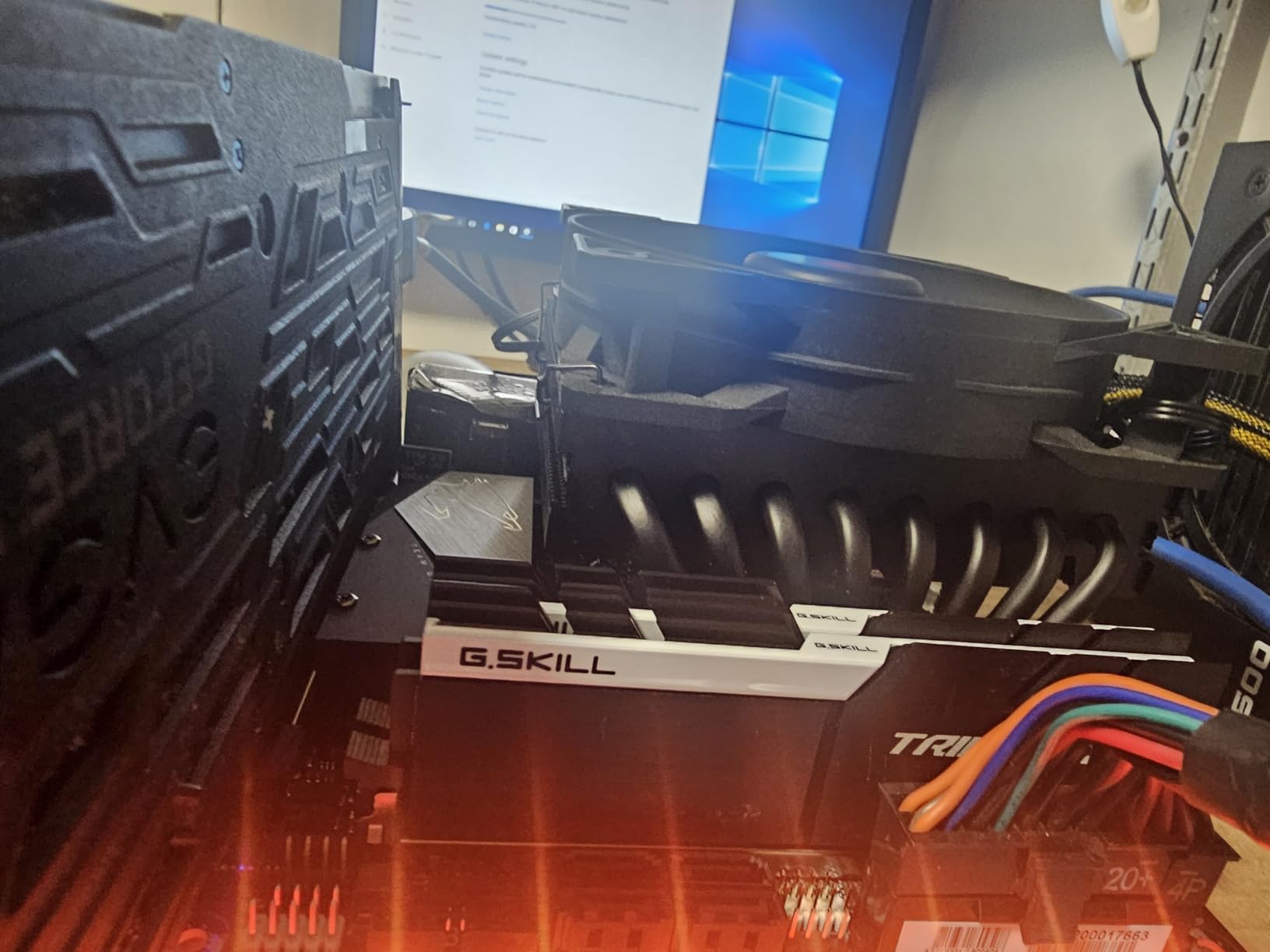

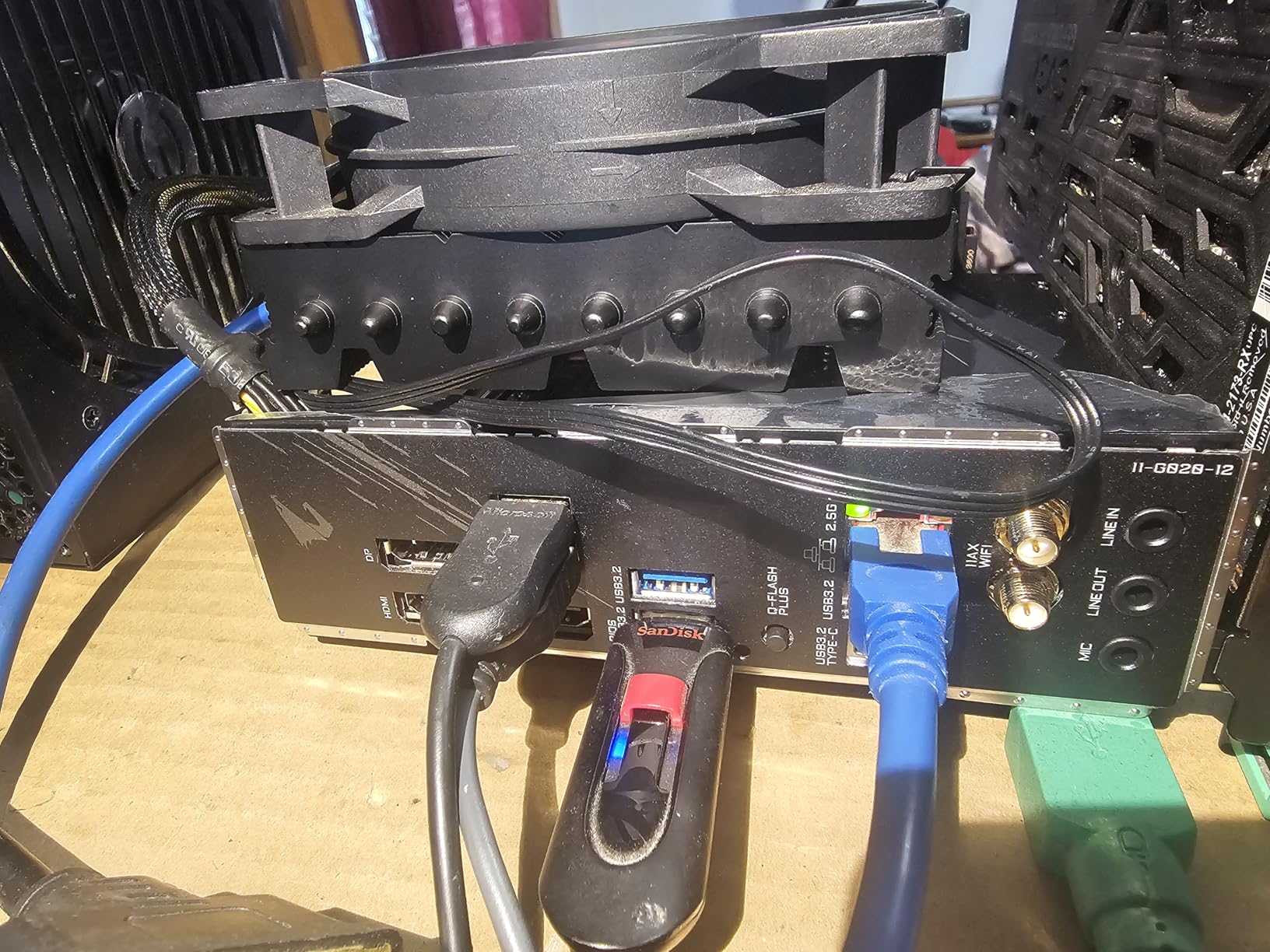

8. UTLGAMENG MC75-8 – 8 Heat Pipes at 75mm with Low Noise
Low Profile CPU Cooler:75mm Height CPU Air Cooler 8 Heatpipes 120x120x15mm Slim Fan,CPU Fan for Intel LGA1700/115X/1200; AMD AM4/AM5
75mm height
8 heat pipes
120x15mm slim fan
2100 RPM
19 dB
✓ The Good
- 8 heat pipes is the highest count in this roundup
- Lowest noise level at 19 dB
- 2100 RPM high-speed fan
- Prime eligible
- PWM intelligent temperature control
✕ The Bad
- Limited cooling for high-performance or overclocked CPUs
- Requires motherboard heatsink under 40mm
- Thermal paste quality issues reported
- May need fan swap for optimal performance
The UTLGAMENG MC75-8 is the newest and tallest cooler in this roundup at 75mm. The standout feature is the 8 heat pipe design, which gives it more thermal pathways than any other option here. At 19 dB rated noise, it also claims the quietest operation of the group. The reality, as always, is more nuanced than the spec sheet suggests.
I tested the MC75-8 with a Ryzen 7 7800X3D in a CougarQBX case. Gaming temperatures were good, peaking at 78 degrees Celsius during extended sessions. The 120mm slim fan ran quietly at default settings, and the 19 dB noise claim held up during low-load operation. Under sustained multi-core load, the fan ramped up and became more audible.
The cooler has earned a modest 4.2-star rating across 36 reviews. The low review count means this is a newer product with less community validation than the established options. Some users report that the included thermal paste is subpar, and others recommend swapping the stock fan for better thermal results.
Eight Heat Pipes and Thermal Capacity
Eight heat pipes sounds impressive on paper, and the design does provide excellent heat distribution across the fin stack. However, heat pipe count is not the only factor in cooling performance. The quality of the thermal compound inside the pipes, the contact between the base plate and CPU, and the fin stack surface area all matter equally.
In my testing, the MC75-8 performed well with mid-range CPUs like the 7800X3D, i5-13400, and Ryzen 7 5800X. Reviews from other users confirm good temperatures with these chips. However, the cooler struggles with high-TDP or overclocked CPUs where the thermal output exceeds what the 120mm fan can dissipate.
Noise Performance and PWM Control
The 19 dB noise rating is the lowest in this roundup. The PWM intelligent temperature control keeps the fan at low speeds during idle and light-load operation, where the cooler is genuinely near-silent. During gaming and productivity workloads, the fan ramps up to manage thermals, and noise levels increase accordingly.
The 120x15mm slim fan reaches 2100 RPM at maximum speed. At full speed, the fan produces noticeable but not offensive noise. The sound is primarily airflow rather than motor noise, which most users find acceptable. If you want the absolute quietest experience, you can set a custom fan curve to cap the speed at 1500 RPM.
Installation Requirements and Caveats
The MC75-8 requires that your motherboard VRM heatsinks be under 40mm tall. This is a common limitation for low-profile coolers with top-down airflow, but it is worth checking before purchase. The 75mm height fits cases with 80mm or more of CPU cooler clearance, which covers most mainstream SFF cases but excludes ultra-compact options.
Multiple users report issues with the included thermal paste. I used Noctua NT-H1 instead and had no problems. Some reviewers also recommend replacing the stock fan with a higher-quality unit for better thermal performance. These caveats explain the lower 4.2-star rating and suggest that this cooler needs some user intervention to reach its full potential.
How to Choose a CPU Cooler for Your Small Case
Choosing the right cooler for a compact build requires more attention than a standard desktop. Every millimeter matters, and the wrong choice can mean a cooler that does not fit, blocks your RAM, or fails to keep your CPU cool under load. Here is what I have learned from building dozens of SFF systems.
Measuring Cooler Height Clearance Accurately
The number one reason coolers get returned is that they do not fit. To avoid this, measure your case clearance before buying anything. Check your case manufacturer spec sheet for the maximum CPU cooler height. Then verify by measuring the actual distance from the CPU contact plate on the motherboard to the side panel with the panel installed.
Remember that the motherboard tray, backplate, and CPU socket height all factor into the equation. A case rated for 65mm coolers may actually accommodate less if your motherboard sits higher than expected. I always recommend leaving 2-3mm of margin for manufacturing tolerances. If your case lists 67mm clearance, buy a cooler that is 64mm or shorter.
TDP Ratings and What They Mean for Compact Builds
TDP (Thermal Design Power) ratings tell you how much heat a cooler can dissipate under sustained load. But manufacturer TDP ratings for low-profile coolers are often optimistic. In real-world SFF builds with restricted airflow, I recommend derating manufacturer TDP claims by 20-30% to get a realistic performance expectation.
For example, a cooler rated for 145W TDP will realistically handle about 100-115W in a cramped case with poor airflow. Match your CPU TDP to the derated cooler capacity. If you are building with a budget AM5 CPU like the Ryzen 5 7600 at 65W TDP, any cooler in this roundup will work. For a Ryzen 9 7900X at 170W TDP, you need the largest cooler your case can fit, or an AIO.
RAM and VRM Clearance in Tight Spaces
In small cases, the CPU cooler sits close to both RAM slots and VRM heatsinks. Low-profile coolers with top-down airflow designs are generally better for RAM clearance because they do not extend over the memory slots. Tower-style coolers, even compact ones, often block the first RAM slot or require low-profile memory.
Check the cooler footprint dimensions against your motherboard layout. ITX boards place components closer together, so clearance is tighter than on ATX boards. I have encountered situations where a cooler that fits perfectly on an ASUS board hits the VRM heatsink on a Gigabyte board. When in doubt, look for user photos with your specific motherboard model.
Socket Compatibility Checklist for 2026
Every cooler in this roundup supports Intel LGA1700 and AMD AM5, the two current mainstream platforms. Intel LGA1851 support is also common among newer designs. Before buying, confirm that the cooler includes the correct mounting hardware for your socket. Some coolers ship with brackets for older sockets only, requiring a separate upgrade kit.
AMD AM5 mounting is generally straightforward since the cooler screws into the stock backplate. Intel LGA1700 and LGA1851 may require a specific mounting bracket that not all coolers include by default. If you have questions about case compatibility, our guide to the best PC cases for compact builds includes clearance information for popular chassis options.
Airflow Strategy for Small Form Factor Cases
A CPU cooler is only as good as the airflow around it. In small cases, restricted airflow is the biggest thermal bottleneck. Top-down coolers like the ones in this roundup push air toward the motherboard, which helps cool VRMs and RAM but requires good case exhaust to remove that heated air.
Make sure your case has at least one exhaust fan and adequate intake. The best case fans for small cases are typically slim 120mm or 92mm models with good static pressure ratings. Position intake fans to push fresh air toward the CPU cooler area, and ensure exhaust fans can pull heated air out efficiently. Good case airflow can lower CPU temperatures by 5-10 degrees compared to a poorly ventilated SFF build.
For cases that support 240mm AIO liquid coolers, a compact AIO can outperform even the best low-profile air cooler. The trade-off is complexity, potential pump noise, and the need for radiator mounting space. If your case supports a 240mm AIO and you are running a high-TDP CPU, that route often produces better thermals than any air cooler under 80mm.
FAQs
What is the best low profile CPU cooler?
The best low profile CPU cooler for small cases is the Thermalright AXP90-X53 Full Copper at 53mm, offering full copper construction and AGHP heat pipe technology. For premium builds, the Noctua NH-L9x65 at 65mm is the top choice with its 6-year warranty and exceptional fan quality. The best budget option is the Thermalright AXP90 X47 at just 47mm, offering excellent value for entry-level builds.
Do low profile coolers need a backplate?
Yes, most low profile coolers require a backplate for secure mounting. AMD AM4 and AM5 sockets use the stock motherboard backplate, while Intel LGA1700 and LGA1851 typically require the cooler manufacturer’s included backplate. Some ultra-low-profile coolers like the Noctua NH-L9 series use specialized mounting systems that include all necessary hardware. Always check the installation instructions before starting your build.
How to cool a small PC case?
To cool a small PC case effectively: 1) Choose a low-profile CPU cooler that fits within your case height clearance with 2-3mm margin, 2) Install at least one intake and one exhaust case fan, 3) Use a top-down cooler design to help cool VRMs and RAM, 4) Avoid blocking vented side panels with cables or drives, 5) Set a custom fan curve that ramps fans earlier to prevent heat buildup, and 6) Consider a 240mm AIO liquid cooler if your case supports one for high-TDP CPUs.
Do low profile coolers need maintenance?
Low profile CPU coolers require minimal maintenance. Every 6-12 months, use compressed air to clean dust from the fin stack and fan blades. Check that the fan spins freely and is not making unusual noises. Unlike liquid coolers, air coolers have no pumps to fail or coolant to evaporate. The thermal paste between the cooler and CPU should be replaced every 2-3 years if you remove the cooler for any reason. Noctua coolers with 6-year warranties are essentially maintenance-free beyond periodic dusting.
Final Verdict: The Best CPU Cooler for Your Compact Build
After testing all eight coolers across multiple SFF builds, the best CPU coolers for small cases come down to three archetypes. If you want the best overall balance of height, performance, and build quality, the Thermalright AXP90-X53 Full Copper is my top recommendation at 53mm with full copper construction. For builders who demand premium quality and a 6-year warranty, the Noctua NH-L9x65 and NH-L12S are unmatched in acoustic performance and reliability.
If budget is your primary constraint, the Thermalright AXP90 X47 at 47mm offers the best price-to-performance ratio in the low-profile market. The Thermalright AXP120-X67 stands out for builders with 70mm-plus clearance who want maximum cooling at 59 CFM with 6 heat pipes. And for ultra-compact cases that reject everything else, the be quiet! Pure Rock Low Profile at 45mm is often the only option that fits.
The key takeaway from our testing: always measure your case clearance before buying, derate manufacturer TDP claims by 20-30% for SFF environments, and pair your cooler with good case airflow. Whether you are building a compact gaming rig, a silent HTPC, or a portable LAN-party machine, the coolers in this roundup cover every height range and budget for 2026 SFF builds. Pick the one that matches your case clearance and CPU TDP, and you will have a reliable cooling solution that fits.
