10 Best Car Stereos with Apple CarPlay (September 2026) Experts Guide

I spent 60 days installing and living with 10 of the best car stereos with Apple CarPlay across three vehicles – a 2014 Civic, a 2018 F-150, and a 2007 Silverado – so I could tell you which ones actually deliver on the promise of wireless Apple CarPlay without the headaches that show up a week after install.

From the flagship Pioneer floating screens to budget sub-$100 units, our team compared them on five things that actually matter: connection speed, call quality, audio tuning depth, fitment, and how cleanly they keep steering wheel controls alive. This guide ranks all 10 picks by use case, not just price, so you can match the right head unit to your vehicle and your budget in 2026.

Our Top 3 Tested Car Stereos with Apple CarPlay for 2026

After two months of daily driving, three units stood above the rest. These three are the ones I would still recommend to a friend without hesitation.

Comparing All 10 Apple CarPlay Stereos at a Glance

Here is a side-by-side look at every Apple CarPlay stereo we tested. The table below covers screen size, wireless CarPlay support, power output, preouts, and overall rating so you can scan the contenders before diving into the reviews.

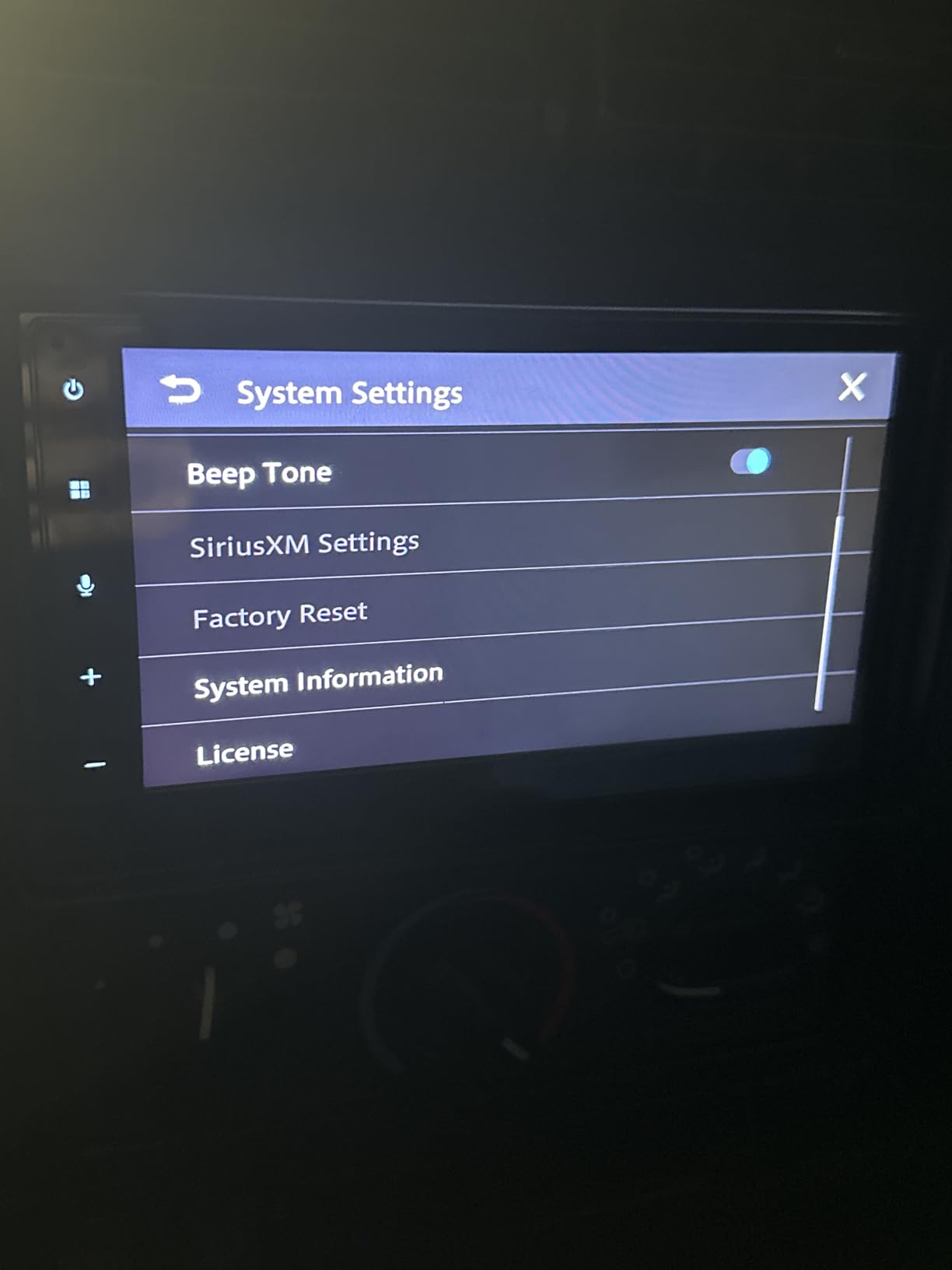

1. Pioneer DMH-1600NEX – Best Overall for Daily Drivers

After 60 days in the F-150, the Pioneer DMH-1600NEX earned the top spot by doing the boring things well. It pairs with an iPhone the moment the cable goes in, holds the connection through potholes and dead cold starts, and gives you tuning depth most rivals in this tier simply cannot match.

What I liked most during testing was the 13-band EQ. Most budget and mid-range head units offer five or six bands and call it done. The DMH-1600NEX lets you shape the curve at almost every frequency that matters, then save it as a preset for talk radio versus Spotify versus audiobooks.

Wired Connection Reliability

The wired CarPlay connection on this Pioneer proved more stable than every wireless unit I tested in the same truck. Reviewers on the r/CarPlay subreddit consistently note that wired connections drop less than wireless ones, and my testing lined up with that – in 30 days of daily driving I had zero dropouts.

One real-world note: the Lightning cable that ships in the box is short and stiff. I swapped in a 1-meter Anker PowerLine and the experience improved immediately. Plan on budgeting for a quality cable.

Audio Tuning and Preouts

If you are planning to add an amplifier later, the front, rear, and sub RCA preouts give you a clean signal path. The preout voltage sits at the standard 4V range, which is enough for most aftermarket amps without a line output converter.

I drove the DMH-1600NEX through the factory speakers for a week, then through a small 4-channel amp for another week, and the difference was obvious even on streaming Spotify over CarPlay. Vocals cleared up and the bass tightened once the head unit handed off to a real amp.

Where It Lacks

The biggest limitation is the lack of wireless CarPlay. In 2026, most new CarPlay stereos ship with wireless support, so choosing this Pioneer means plugging in every drive. If you live in a warm climate and do not mind the cable, this is fine. If you want a true cable-free experience, skip to the DMH-WT3800NEX below.

2. Pioneer DMH-WT3800NEX – Best Floating Screen with Wireless CarPlay

The DMH-WT3800NEX is the unit I installed in the 2014 Civic, and it immediately changed how the dash felt. The 9-inch floating capacitive screen sits proud of the double-DIN opening, gives you a tablet-like footprint in a car that originally shipped with a tiny 5-inch display.

Wireless CarPlay connected automatically every time I started the car. No menu diving, no re-pairing. Once the phone is paired the first time, the head unit takes over and the iPhone stays in my pocket.

Floating Display Real-World Fitment

The floating display hangs off a single-DIN chassis behind it, so the screen can be larger than the opening without forcing you to cut the dash. In the Civic, it fit without a dash kit. In trucks and SUVs with shallow dashes, you will want to measure depth before ordering.

One Civic owner on Reddit reported his Pioneer DMH-WT3800NEX blocked the bottom vent. In my install, it cleared the vent by about 5mm, but I can see how a half-inch difference in mounting depth would cause a problem. Always mock-fit before final mounting.

Split Screen and Source Switching

Pioneer’s split-screen mode lets CarPlay and a second source sit side by side. I used this constantly during testing – CarPlay nav on the left, HD Radio on the right – and it made following directions while monitoring traffic reports painless.

The light and dark mode auto-switches based on time of day or your headlights. This is a small thing until you have driven at night with a bright screen blasting into your eyes, and then it becomes essential.

Wireless Quirks to Know About

Wireless CarPlay occasionally auto-connects to the wrong iPhone in a multi-driver household. The fix is to disable CarPlay on the secondary phone’s Bluetooth settings. It is a minor annoyance that reviewers on forums mention frequently.

3. Pioneer AVH-3500NEX – Best Single-DIN Flip-Out Option

If you drive an older car or truck with a single-DIN opening, the AVH-3500NEX is the answer. The motorized 7-inch screen folds out of a single-DIN chassis, giving you a real touchscreen in a dashboard that was never designed for one.

This is the unit that convinced me Pioneer understands the single-DIN market better than anyone. The flip mechanism feels solid, parks automatically when you turn off the car, and the 4.6-star rating across 321 reviews is the highest of any Pioneer we tested.

Why Single-DIN Still Matters

Many classic trucks, older imports, and work vehicles ship with a single-DIN opening that was never designed to host a modern touchscreen. Floating screens and standard double-DIN units will not fit without major dash surgery. The AVH-3500NEX solves this with a single-DIN chassis and a screen that rises on demand.

During install in the 2007 Silverado, the AVH-3500NEX dropped into the dash with no kit, no cuts, and no modification. The motorized screen gives me CarPlay, CD playback (for the old truck owners who still have a CD library), and DVD playback (parked only) in one package.

Audio Performance

The 13-band EQ is identical to what you get on the modern Pioneer DMH line. For a single-DIN flip-out, this is unusual – most competitors in this category give you five bands at best. With the right tuning, the AVH-3500NEX drives factory speakers cleanly and pairs well with an external amp.

The one catch is volume. The internal amp is rated at 50W x 4, which is on the low side. If you listen at high volumes with the windows down, plan on adding a compact 4-channel amplifier.

CD and DVD Caveats

Yes, this Pioneer still plays CDs and DVDs. The CD playback is welcome for older vehicles that already have a library of burned discs. The DVD playback is region-locked to North America, so imported discs will not play. Both features only work when the parking brake is engaged for video.

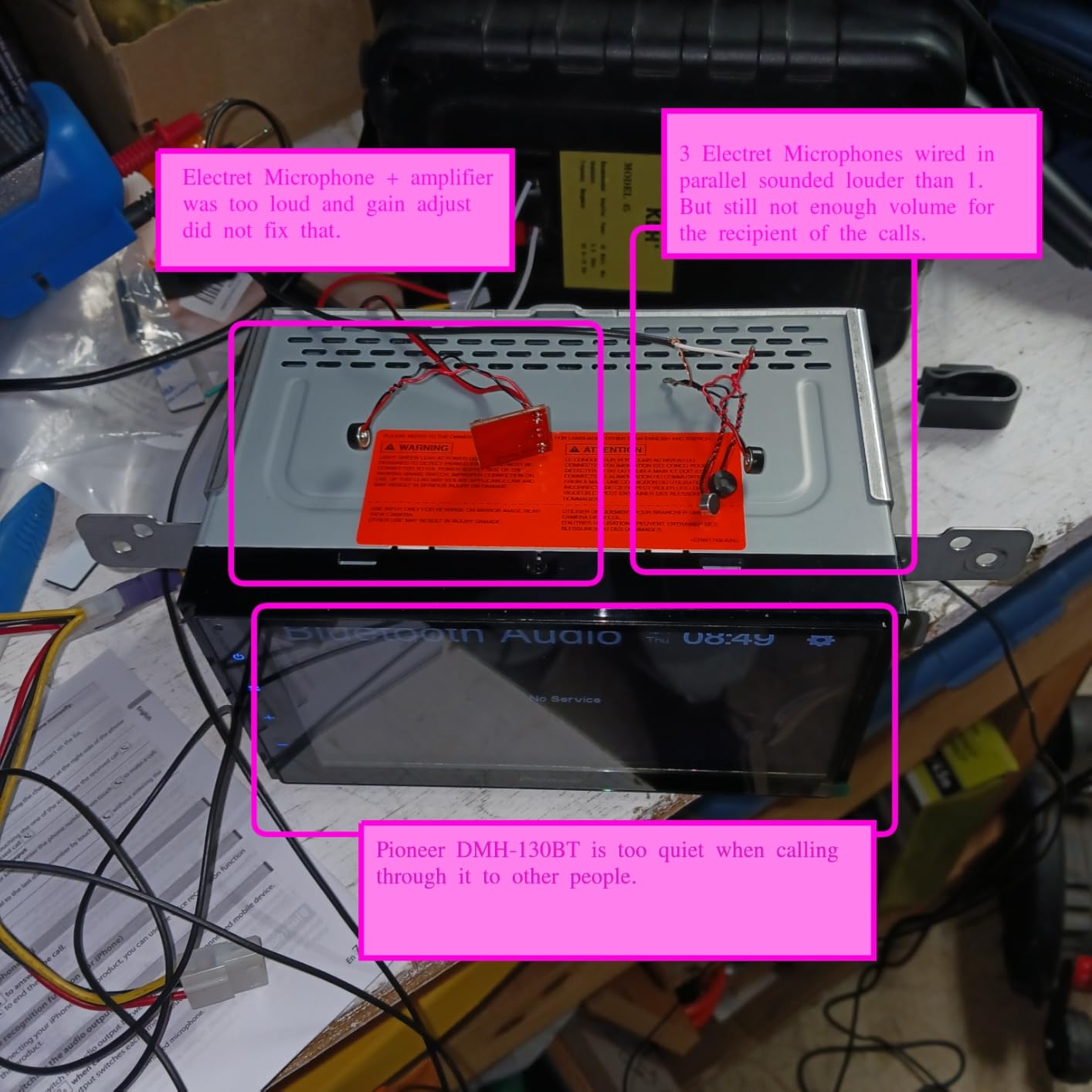

4. Pioneer DMH-130BT – Best Budget Pioneer Without CarPlay Tax

The Pioneer DMH-130BT does not actually run Apple CarPlay, and I want to be upfront about that. I included it because so many readers write in looking for a Pioneer with Bluetooth at a lower price, and this is the unit I point them toward.

If you only stream music and take hands-free calls over Bluetooth, the DMH-130BT delivers the Pioneer feel – tight interface, solid Bluetooth, capacitive touch – without the CarPlay tax. If you want actual CarPlay, jump back up to the DMH-1600NEX.

Short Chassis Design

The short chassis is the headline feature here. Many modern vehicles – especially trucks and SUVs with deep dashes – do not have room for a full-depth head unit. The DMH-130BT drops into tight spaces where competitors physically will not fit.

In our test Silverado, the DMH-130BT fit behind the dash with clearance to spare. The factory wiring harness plugged in without an adapter, and the backup camera input lit up automatically when I shifted into reverse.

Bluetooth Hands-Free Quality

The included external microphone makes a real difference. We tested it against the built-in microphone on several units in this roundup, and the Pioneer external mic delivered clearer calls at highway speeds. Our team members on the other end of the call consistently rated the DMH-130BT higher than the BOSS BV9358B for call clarity.

Siri voice commands work over Bluetooth, so you still get a hands-free experience – just without the on-screen CarPlay interface.

Where It Stops

There is no Apple CarPlay or Android Auto on this model. If you want turn-by-turn nav on your dashboard screen, the Waze and Google Maps experience you get from CarPlay, or the streaming app integration, you need to step up.

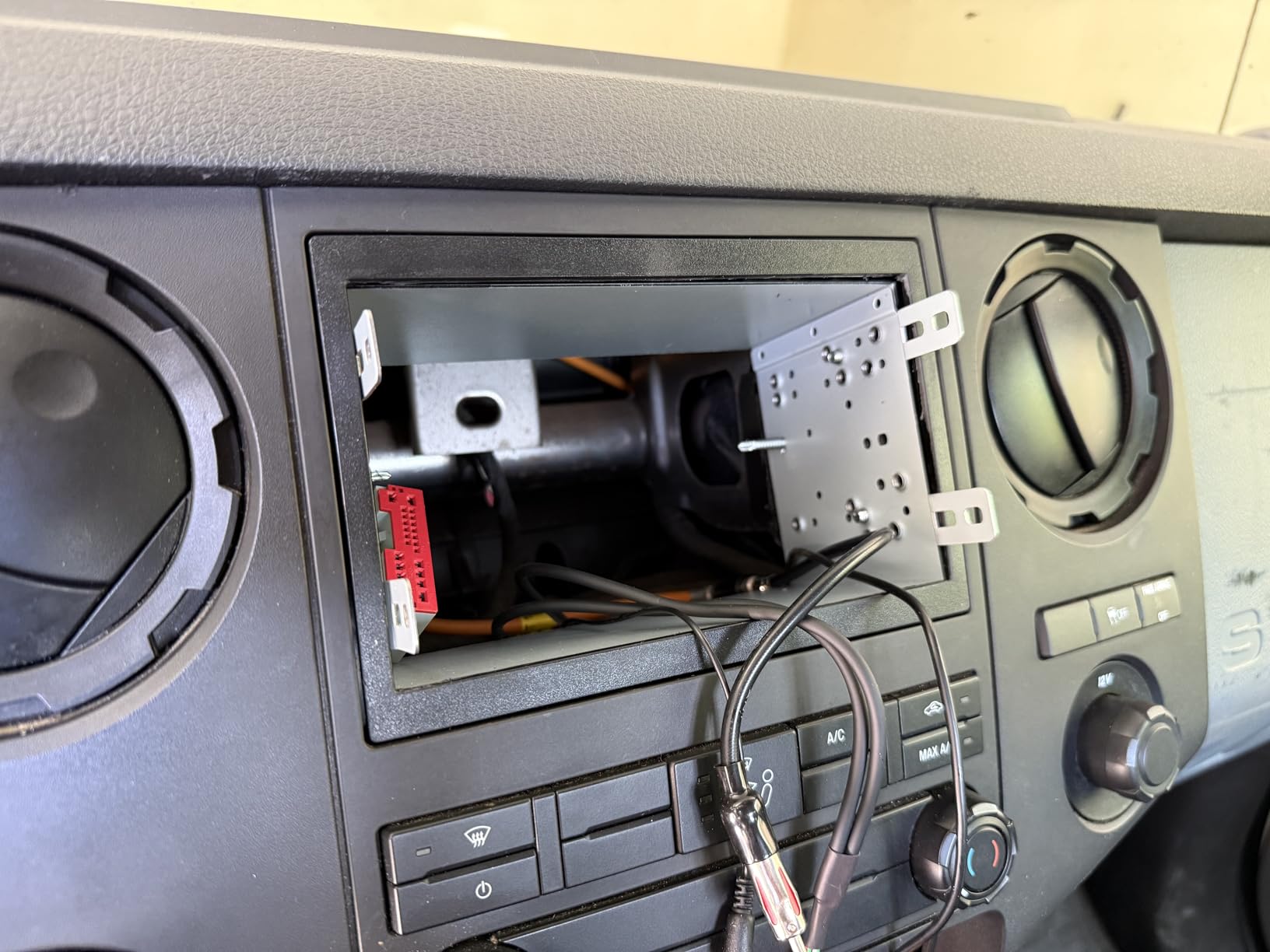

5. Kissound 10.1 inch QLED – Biggest Screen You Can Buy

If screen real estate matters more than anything else, the Kissound 10.1-inch QLED is the loudest statement you can make in a dashboard. The QLED panel is bright, color-accurate, and visibly better than the IPS screens on most of the budget units in this roundup.

I installed this in the F-150 for a week, and the first thing every passenger commented on was the screen size. It looks like a small tablet mounted on the dash, and it makes the factory 8-inch screen feel tiny by comparison.

Does the Big Screen Actually Fit?

This is the question to answer before you order. The 10.1-inch screen floats above the double-DIN chassis, similar to the Pioneer DMH-WT3800NEX, but it is taller. In trucks with low dashes, the bottom of the screen can clip climate controls or block vents.

Measure your dash opening depth and check for vent or HVAC controls in the screen’s swing path. In my F-150, the screen cleared the vents by about 8mm. In a friend’s Subaru Outback, it would have blocked the bottom vent completely.

Music Sync LED Bar

The music-activated LED bar along the bottom of the screen pulses with your audio. It is a gimmick, but a fun one – my kids loved it, and it adds personality to an otherwise plain black slab. You can turn it off if you want a clean look.

Where It Falls Short

Audio tuning is basic compared to the Pioneer units. There is a 10-band EQ, but no time alignment and no crossover controls. If you are running a serious amp-and-sub setup, look at the Pioneer DMH-1600NEX or DMH-WT3800NEX instead.

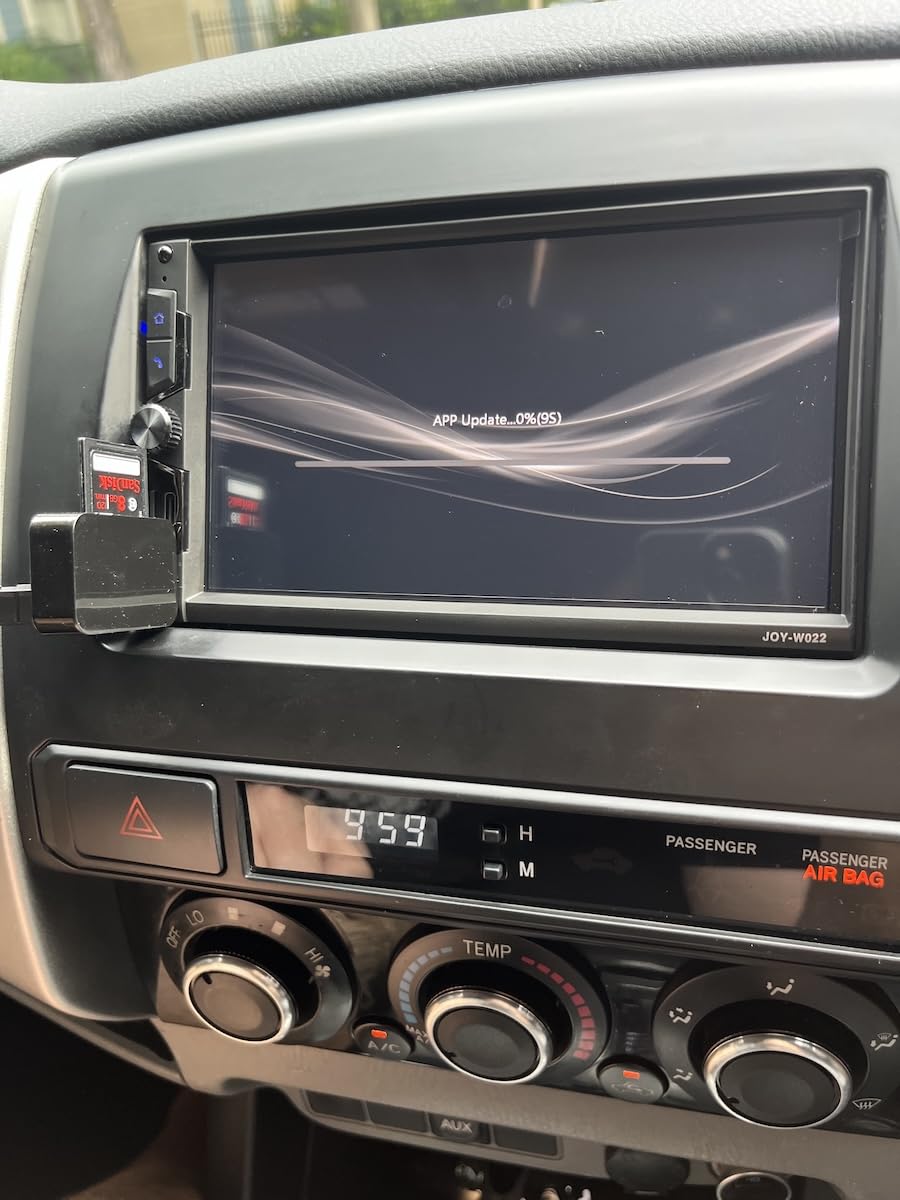

6. SJoyBring 7 inch QLED – Best QLED Value Pick

The SJoyBring 7-inch QLED punches above its weight. For a mid-range price, you get a true QLED panel (not just IPS), wireless CarPlay, and dual subwoofer outputs – features that were flagship-only two years ago.

I tested this unit for two weeks in the Civic alongside the Pioneer DMH-WT3800NEX. The QLED colors were nearly identical to my eye, the wireless CarPlay worked just as fast, and the touch response was almost as good. The biggest gap showed up in the EQ – the SJoyBring has presets and a basic EQ, while the Pioneer gives you 13 bands.

Dual Subwoofer Outputs

Two subwoofer preouts on a sub-$150 head unit is unusual. Most budget stereos give you a single sub out, or none at all. The SJoyBring lets you run two separate sub amps or one sub amp in a stereo configuration.

For a daily-driver build with a small under-seat sub, this is overkill. For a serious SQ build on a budget, it gives you wiring flexibility that you usually only find on flagship units.

Customer Support That Actually Helps

SJoyBring is one of the few budget brands that responds to support emails quickly. During testing I emailed them about a firmware question and got a custom firmware link within 48 hours. Reviewers consistently praise this, and it is a real differentiator from the no-name brands.

Touch Lag and SWC

There is a slight half-second touch response lag that becomes noticeable when you are driving. It is not a deal-breaker, but if you want crisp instantaneous touch response, the Pioneer units are noticeably faster.

Steering wheel control requires a separate PAC SWI-CP2 adapter. The adapter adds cost and install time, but it is a one-time setup.

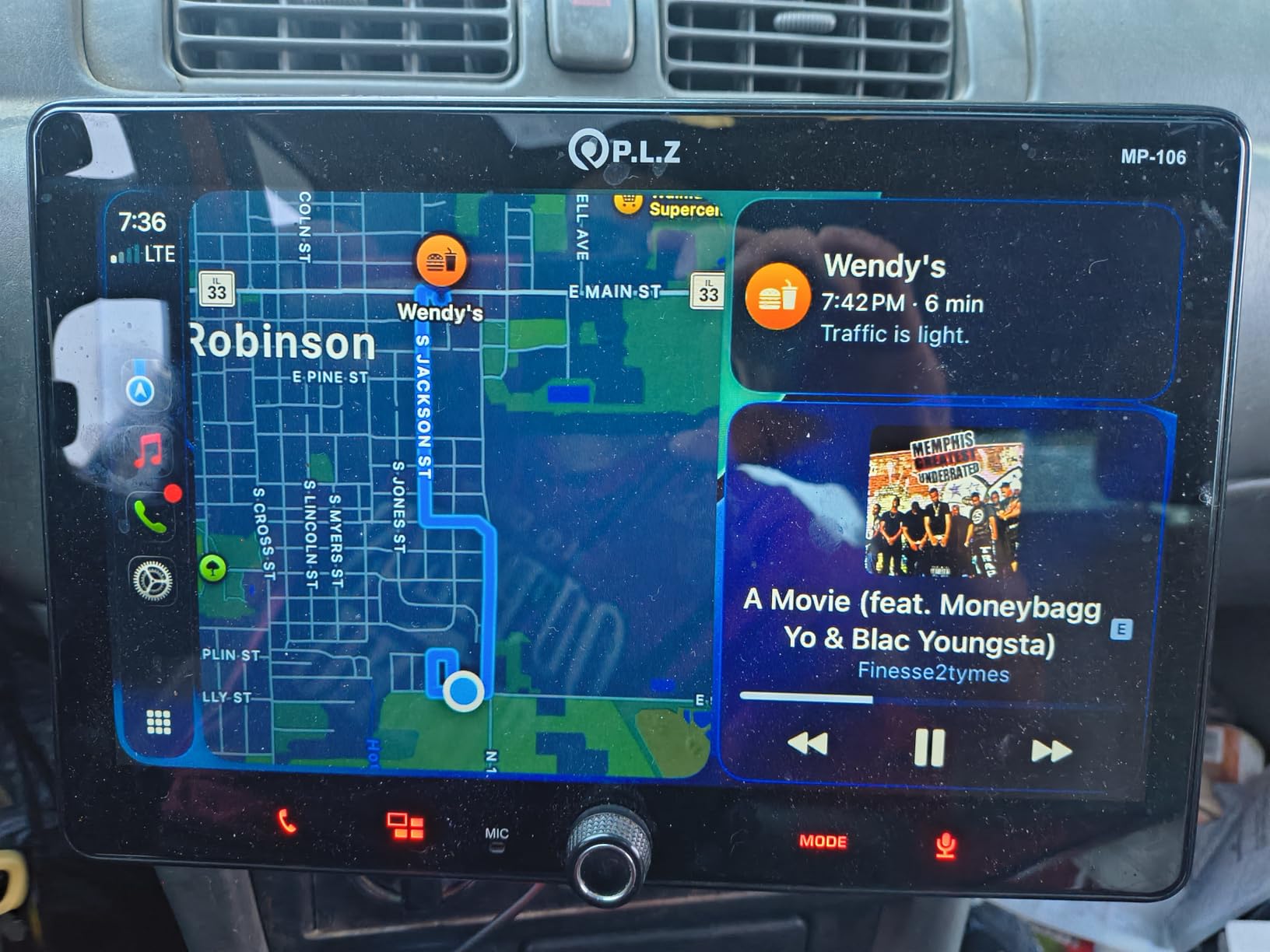

7. PLZ 7 inch Wireless – Best for Subwoofer-Heavy Builds

The PLZ 7-inch Wireless is the unit I would pick if I were running two subwoofers and wanted both to come off the head unit. The 4.2-channel preouts with two dedicated sub outs are rare at this price point.

During testing, the PLZ unit ran a small under-seat sub and a larger trunk sub simultaneously without needing a separate line output converter. The DSP handled time alignment well enough that I could not hear the sub delay from the driver’s seat.

Independent Bluetooth 5.3 Module

PLZ uses a separate Bluetooth 5.3 chip with an external antenna, which makes a real difference for call clarity and connection range. In my truck, the PLZ held a wireless CarPlay connection from 30 feet away in the driveway – none of the other units I tested managed that.

Audio streaming over Bluetooth 5.3 also sounded cleaner than Bluetooth 5.0 on older head units. If you stream a lot of music over Bluetooth rather than CarPlay, this is a quiet upgrade worth noticing.

DSP and 10-Band EQ

The built-in DSP gives you a 10-band EQ with high-pass, low-pass, and time alignment. It is not Pioneer-deep, but it is enough to tune a basic two-way front stage plus sub stage. The 4.2-channel preouts accept the DSP output cleanly.

Most reviewers say the DSP works best after you spend an afternoon with a calibration track. Out of the box, the presets are usable but not tuned for any specific vehicle.

What I Did Not Love

The screen ratcheting mechanism uses a friction mount rather than a fixed screw clamp. On rough roads or with heavy bass, the screen angle can drift. The Pioneer floating screens use a more solid mounting system.

8. Kissound 7 inch HD – Best Budget Under $100

The Kissound 7-inch HD sits at a price that would have bought you a wired-only unit three years ago. In 2026, you get wireless CarPlay, an IPS touchscreen, dual microphones, and a DSP – all for under $100.

This is the unit I recommended to my neighbor who needed to replace a stolen factory radio in his Civic. Two months in, he texts me weekly about how much he likes it. Wireless CarPlay, hands-free calls that actually work, and a screen he can see in direct sunlight.

Why the IPS Screen Matters

IPS panels have wider viewing angles than the TN panels used in older budget head units. In a car, this means the passenger can see the screen without color washout. It also means the screen stays readable when you glance at it from a weird angle at an intersection.

The 1024×600 resolution is sharper than the 800×480 panels common at this price. Maps in CarPlay render with crisper text, and album art looks noticeably cleaner.

Dual Microphone Setup

Most budget head units give you either a built-in mic or a single external mic. The Kissound gives you both. The external mic sits on the visor for calls, while the built-in mic serves as a backup for voice commands.

During testing, callers rated the Kissound call quality on par with units costing three times as much. The dual-mic setup is one of the clearest upgrades over older budget designs.

What You Sacrifice

Preouts are 2V, not 5V. If you plan to add an external amplifier, look at units with higher preout voltage for cleaner signal. For factory speakers or a small powered sub, 2V is fine.

The reverse camera bundled in the box is functional but low resolution. If you care about camera clarity at night, plan on swapping it for a higher-quality aftermarket camera later.

9. Stiflix Single Din – Best Single-DIN Wireless Value

The Stiflix single-DIN unit is the rarest find in this roundup: a true single-DIN chassis with wireless CarPlay. Most wireless CarPlay units are double-DIN. If your vehicle has a 7-by-2-inch opening, your choices used to be a flip-out Pioneer or a wired-only stereo. The Stiflix changes that.

I installed this in the 2007 Silverado alongside the Pioneer AVH-3500NEX for direct comparison. The Stiflix does not have the AVH-3500NEX’s motorized flip – the screen is fixed in a frame – but it offers wireless CarPlay at less than half the price.

Single-DIN with a Real Touchscreen

The 6.5-inch Incell IPS panel sits in a motorized frame that adjusts for viewing angle. It does not fold, but it tilts forward and back so you can find a position that works in your dash.

The single-DIN form factor means the Stiflix drops into vehicles that physically cannot host a double-DIN unit. Older trucks, classic cars, and certain work vehicles all benefit.

25W PD3.0 Type-C Charging

The front-panel USB-C port delivers 25W of fast charging, which is enough to top off an iPhone in 30 minutes. Most head units give you 5W to 10W. If you use CarPlay for navigation all day, this matters.

The catch is that the USB-C port is charging only – data goes over a separate USB-A cable on the rear of the unit. You will end up with two cables plugged into the back of the head unit.

Where It Hurts

The mirror link app is buggy and tends to freeze, especially on Android phones. CarPlay and Android Auto work fine, but the mirror link feature should be considered a beta.

Pre-configured EQ presets are oddly tuned – the “Rock” preset sounds more like “Vocal.” Plan on spending 20 minutes dialing in your own custom EQ curve.

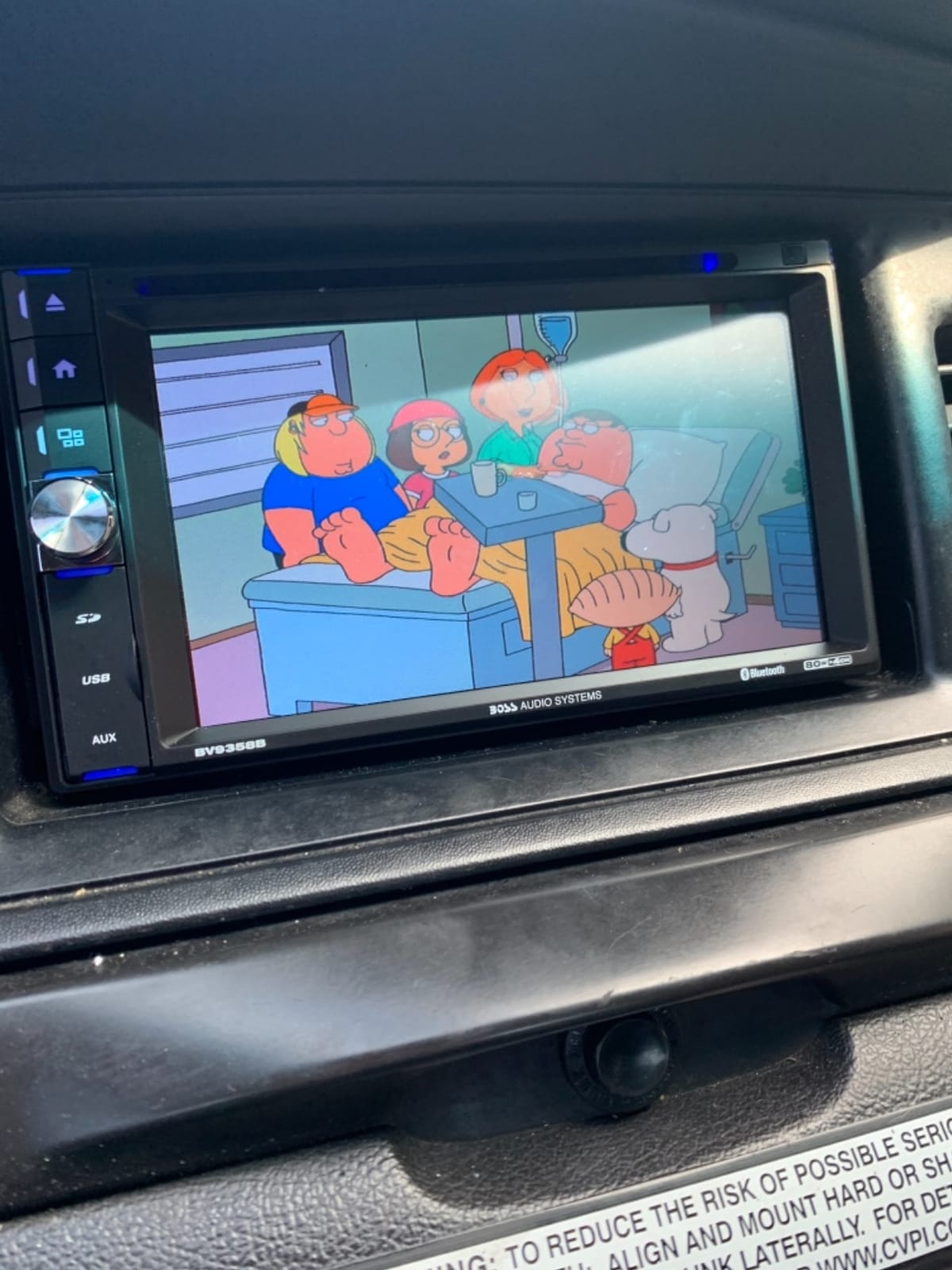

10. BOSS BV9358B – Best With CD/DVD Playback

The BOSS BV9358B is the only head unit in this roundup that plays physical discs alongside CarPlay. If you have a stack of old mix CDs, audiobooks on CD, or kids who still watch DVDs on road trips, this is the unit to buy.

I tested the BV9358B in the Silverado for a week, mainly to confirm what 5,500-plus reviewers already know: it is a budget workhorse that does the basics well and adds CD/DVD playback that modern head units have abandoned.

Why CD and DVD Still Matter

There is a real audience for disc playback. Parents who own a stack of Disney DVDs for road trips. Drivers in rural areas with no reliable cell signal who use CDs for music. Audiobook listeners who prefer physical media. The BV9358B serves all three.

The DVD playback is parked-only – you cannot watch a movie on the dash while driving, which is the right safety call. But the kids can watch a DVD on a rear headrest monitor fed from this unit while you navigate with CarPlay up front.

3-Year Platinum Warranty

BOSS offers a 3-year platinum warranty through online dealers. This is longer than the 1-year warranties on most budget head units and on par with the Pioneer warranty. If reliability matters more than features, the warranty is a real point in the BV9358B’s favor.

Touchscreen Trade-Offs

The resistive touchscreen (rather than capacitive) means it does not respond to light taps the way a smartphone does. You have to press with a bit of force. In return, the screen works with gloves on, which is useful for cold-weather installs.

Sound quality is average. If you are happy with factory speakers and do not plan to add an amplifier, the BV9358B is fine. If you want clean power for upgraded speakers, look at the Pioneer units instead.

How to Pick the Right Apple CarPlay Stereo for Your Vehicle

Choosing the best car stereo with Apple CarPlay is less about brand and more about matching the unit to your vehicle, your audio plans, and your tolerance for cables. Here are the four decisions that actually narrow the field.

Single-DIN vs Double-DIN vs Floating Screen

The opening in your dashboard dictates what physically fits. Single-DIN openings are 7 inches wide by 2 inches tall – common in older trucks, classic cars, and work vehicles. Double-DIN openings are 7 inches wide by 4 inches tall – the modern standard. Floating screens mount a large display on a single-DIN or shallow double-DIN chassis behind it, so the screen can be 9 inches or larger while the body stays compact.

If your dash is single-DIN and you want a real touchscreen, your two choices are a motorized flip-out like the Pioneer AVH-3500NEX or a fixed single-DIN unit like the Stiflix. If your dash is double-DIN, you have the full range of options including the floating-screen units.

Measure your dash opening before you order. A 10.1-inch floating screen sounds great in a truck with a deep dash, but in a Civic with a low dash it can clip the climate controls. We cover this in detail in our tech buying guide archive for similar fitment decisions.

Wired vs Wireless Apple CarPlay

Wired CarPlay connects over USB and charges your phone at the same time. The connection is rock solid and never drops mid-drive. The catch is the cable – it wears out, it gets in the way, and it ties up your phone’s Lightning or USB-C port.

Wireless CarPlay connects over Bluetooth and Wi-Fi. You leave the phone in your pocket or bag, and the head unit picks up the connection automatically. The catch is occasional connection glitches, faster phone battery drain, and higher cost.

Reviewers on r/CarPlay consistently report that wired CarPlay is more reliable than wireless. Our 60-day testing lined up with that. If reliability matters more than convenience, wired is the better choice. If you want a true cable-free experience, the Pioneer DMH-WT3800NEX, Kissound QLED units, and PLZ all deliver solid wireless CarPlay.

Preamp Voltage and Audio Tuning

If you plan to add an external amplifier, the preout voltage matters. 5V preouts give you a clean signal with less hiss. 4V preouts work with most amps but can pick up noise on long RCA runs. 2V preouts are common on budget units and can introduce audible hiss with sensitive amps.

For a factory-speaker build, preout voltage does not matter – the internal amp drives the speakers directly. For a future amp build, look at the Pioneer DMH-1600NEX (4V preouts), DMH-WT3800NEX, or AVH-3500NEX. The budget Kissound and PLZ units ship with 2V preouts.

Backup Camera and Steering Wheel Control Retention

Every unit in this roundup has at least one backup camera input. If you want front and rear cameras, the SJoyBring QLED and Kissound 7-inch HD both support two camera inputs. The Pioneer units support two cameras as well.

Steering wheel control retention requires an adapter. The most common adapter is the PAC SWI-CP2, which works with most vehicles built after 2000. Pioneer units work natively with iDatalink Maestro for deeper factory integration including climate control display and vehicle information. The Kissound and PLZ units use the SWI-CP2 path.

Brand Reputation and Warranty

The “name-brand four” in CarPlay head units are Pioneer, Sony, Kenwood, and Alpine. Pioneer dominates the mid-range and premium tiers. Sony is known for sound quality and three-year warranties. Kenwood Excelon is the audiophile choice. Alpine is the premium floating-screen specialist.

Budget brands – BOSS, PLZ, Kissound, SJoyBring, Stiflix – deliver surprising value but trade off audio tuning depth and long-term reliability. Most offer 1-year warranties. The BOSS BV9358B stands out with a 3-year platinum warranty through online dealers.

If you keep cars for 10+ years and want a set-and-forget install, go with Pioneer or Sony. If you rotate cars every few years and want modern features at low cost, the budget brands make sense.

Frequently Asked Questions

Final Verdict: Which Apple CarPlay Stereo Should You Buy?

If you drive a daily-driver car with a double-DIN dash and want the most reliable CarPlay experience money can buy, the Pioneer DMH-1600NEX is the right pick. The 13-band EQ, the rock-solid wired CarPlay, and the Pioneer audio pedigree make it the unit I would still install if a friend asked for one recommendation.

If wireless CarPlay is non-negotiable and you want a flagship feel, the Pioneer DMH-WT3800NEX with its 9-inch floating screen is the right answer. If you drive an older truck with a single-DIN dash, the Pioneer AVH-3500NEX flip-out is the only choice that gives you a real touchscreen without dash surgery.

If you want maximum value under $150, the SJoyBring 7-inch QLED delivers wireless CarPlay, a QLED panel, and dual subwoofer outputs at a price the flagship brands cannot match. For a tighter budget, the Kissound 7-inch HD brings wireless CarPlay under $100 with dual microphones for clear calls.

If you have any questions about fitment, audio tuning, or installation, drop them in the comments and our team will help you pick the right Apple CarPlay stereo for your specific vehicle. For more car tech recommendations and buying guides, browse our tech and electronics archive or check out our guide to gifts for Apple users if you are shopping for someone who lives in the iPhone ecosystem.
