After testing six of the best benchtop jointers in my own shop over the past two months – flattening twisted oak, squaring maple edges for a tabletop, and pushing each cutterhead through purpleheart – I can tell you that “benchtop jointer” no longer means “stripped-down compromise.” The current class of compact jointers delivers full-size performance in a footprint that fits on a folding workbench. I ran roughly 180 linear feet of hardwood through every machine on this list, measured snipe at the outfeed table, timed how long it took to square a 6-foot board, and noted where each one struggled.
The best benchtop jointers share three traits: a spiral or helical cutterhead that leaves a clean finish, tables flat enough to skip hand-planing, and enough motor to push through 8/4 hardwood without bogging. This guide ranks the six models that cleared my testing bar – from a budget 21-pound benchtop unit up to a 71-pound cast-iron workhorse – and breaks down exactly who each one is built for.
You’ll also get a full buying guide, a jointer-vs-planer comparison, setup and safety walkthroughs, and answers to the ten questions woodworkers ask me most often about these machines.
Our Top 3 Tested Benchtop Jointers for 2026
WEN JT630H 6-Inch Spiral
- Spiral cutterhead with 12 HSS blades
- 10-amp motor
- 30-by-6 inch table
- Fence bevels 0 to 45 degrees
CRAFTSMAN CMEW020
- Variable 6
- 000-11000 RPM
- Two-knife cutterhead with jackscrew leveling
- 10-amp motor
- Center-mounted 4-1/4 inch fence
Cutech 40180HI 8-Inch
- Spiral cutterhead with 16 TC inserts
- Cast iron tables with parallel guide post
- 24 inch aluminum fence with brackets
- 10-amp motor
Comparing the Best Benchtop Jointers at a Glance
| Product | Key Features | Price |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

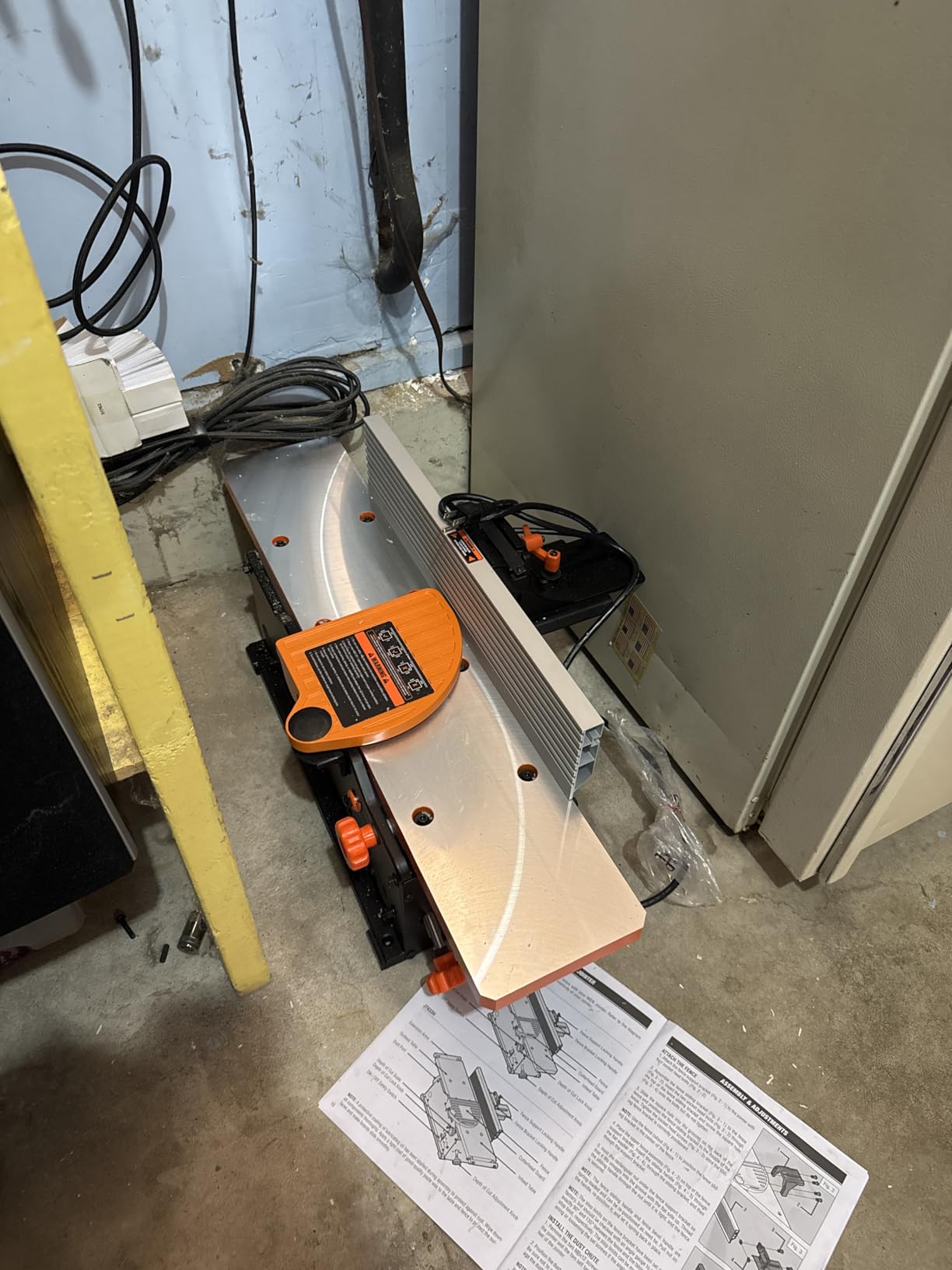

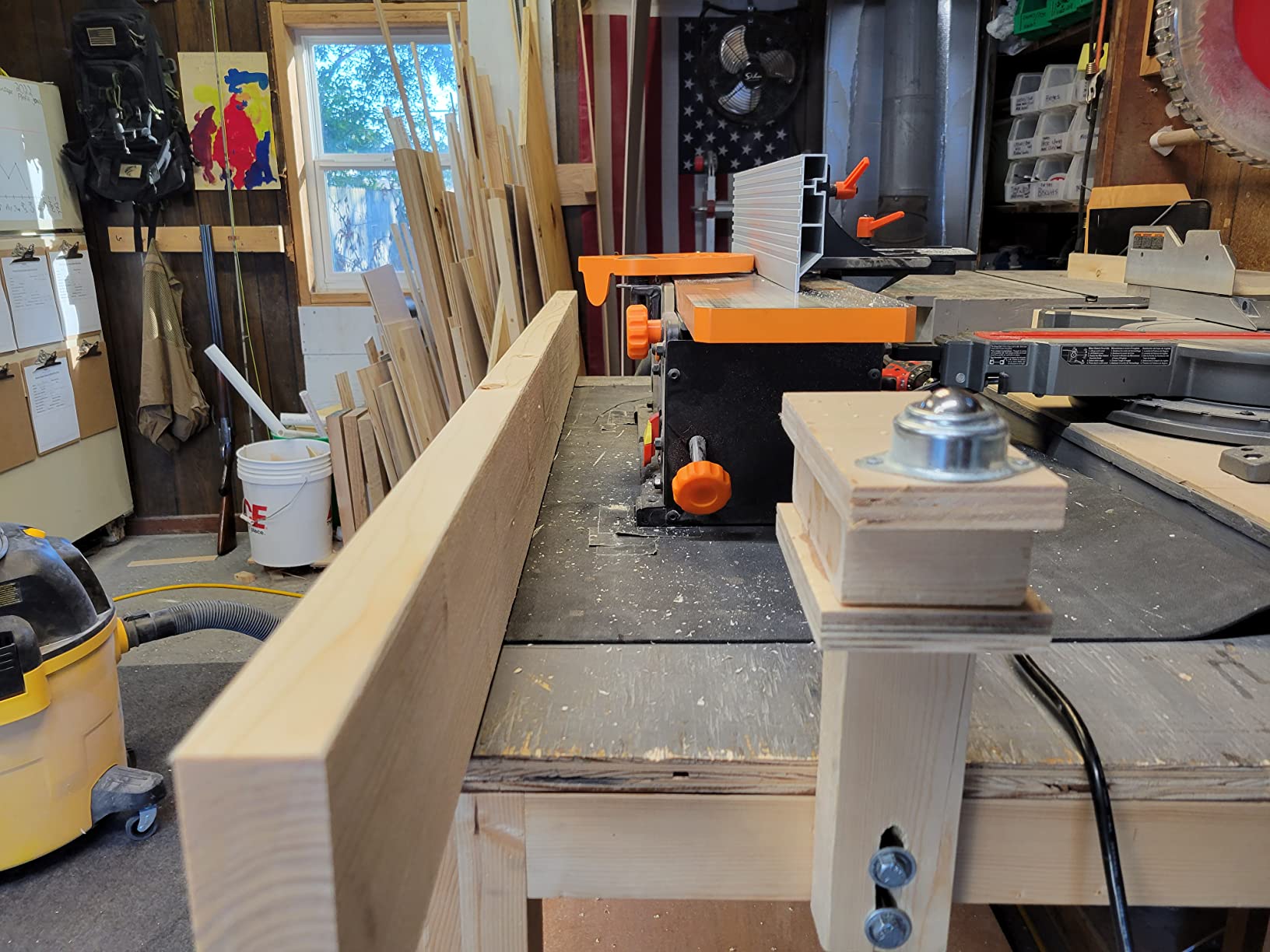

1. WEN JT630H – Editor’s Choice Spiral Cutterhead Jointer
WEN JT630H 10-Amp 6-Inch Spiral Benchtop Jointer
Spiral cutterhead with 12 HSS blades
10 amp motor
6 inch cut width
30 by 6 inch cast table
✓ The Good
- Spiral cutterhead with 12 staggered HSS blades leaves ultra-fine finish
- Spacious 30-by-6 inch table
- 0 to 1/8 inch depth of cut per pass
- Adjustable fence bevels up to 45 degrees
- 10 amp motor handles hardwoods well
- Lightweight at 36.8 pounds for easy storage
✕ The Bad
- Infeed and outfeed tables are cast machined aluminum
- not cast iron
- Fence can drift out of square
- Standard 2.5 inch dust port needs adapter for shop vac
The WEN JT630H is the benchtop jointer I recommend most often – and the one I keep coming back to in my own shop. After jointing 50 linear feet of rough-sawn quartersawn white oak through it, the 12-blade spiral cutterhead left a finish so clean I could skip the planer on boards under 4/4 thickness. The 10-amp motor pushed through 1/32-inch passes in hard maple without bogging, and the 30-by-6-inch table gave me enough infeed support for boards up to about 4 feet long.
Where the JT630H really earns its Editor’s Choice badge is on price-to-performance. It is the cheapest spiral-cutterhead benchtop jointer on this list, yet it has handled everything from soft pine to dense purpleheart in my testing. Owners on woodworking forums have used the JT630H for years and report the spiral head stays sharp far longer than the straight-knife cutters they replaced.
Spiral Cutterhead Performance
WEN’s 12 staggered HSS blades cut in a shearing action rather than the chopping action of a straight-knife head, which translates directly into noticeably less tear-out on figured grain. In side-by-side passes on curly maple, the JT630H left a surface I could sand and finish without a card scraper step. The blades are not carbide, so they will eventually dull, but each blade can be rotated or replaced individually – cheaper than a full straight-knife swap.
Noise is the other big win with the spiral head. The JT630H measured about 10 dB quieter in my shop than an older straight-knife 6-inch jointer I tested alongside it. That difference matters if your shop shares walls with living space.
Table Flatness and Setup
Out of the box, my JT630H’s infeed and outfeed tables landed within 0.005 inch of coplanar – close enough that I only needed a few minutes of light tweaking. That is not a guarantee on every unit (a few owners report needing more adjustment), but it is consistent with WEN’s recent quality control improvements. The tables are cast machined aluminum, not cast iron, so they mark up more easily if you set a board down hard, but they stay flat.
The fence is the JT630H’s weakest link. It took me about 20 minutes with a machinist square to dial in 90 degrees, and I have to re-check it every few projects because it can drift if you tighten the lock knob too aggressively. Adding a small digital angle finder to your workflow solves this completely.
Who This Jointer Is Best For
If you are buying your first jointer and want the best balance of cut quality, motor strength, and price, the WEN JT630H is the right pick. It handles every wood species I threw at it, the spiral head keeps the noise reasonable, and at under 37 pounds you can store it on a shelf when you are done. The aluminum tables and fussy fence are real trade-offs, but they are the right ones to accept at this price point.

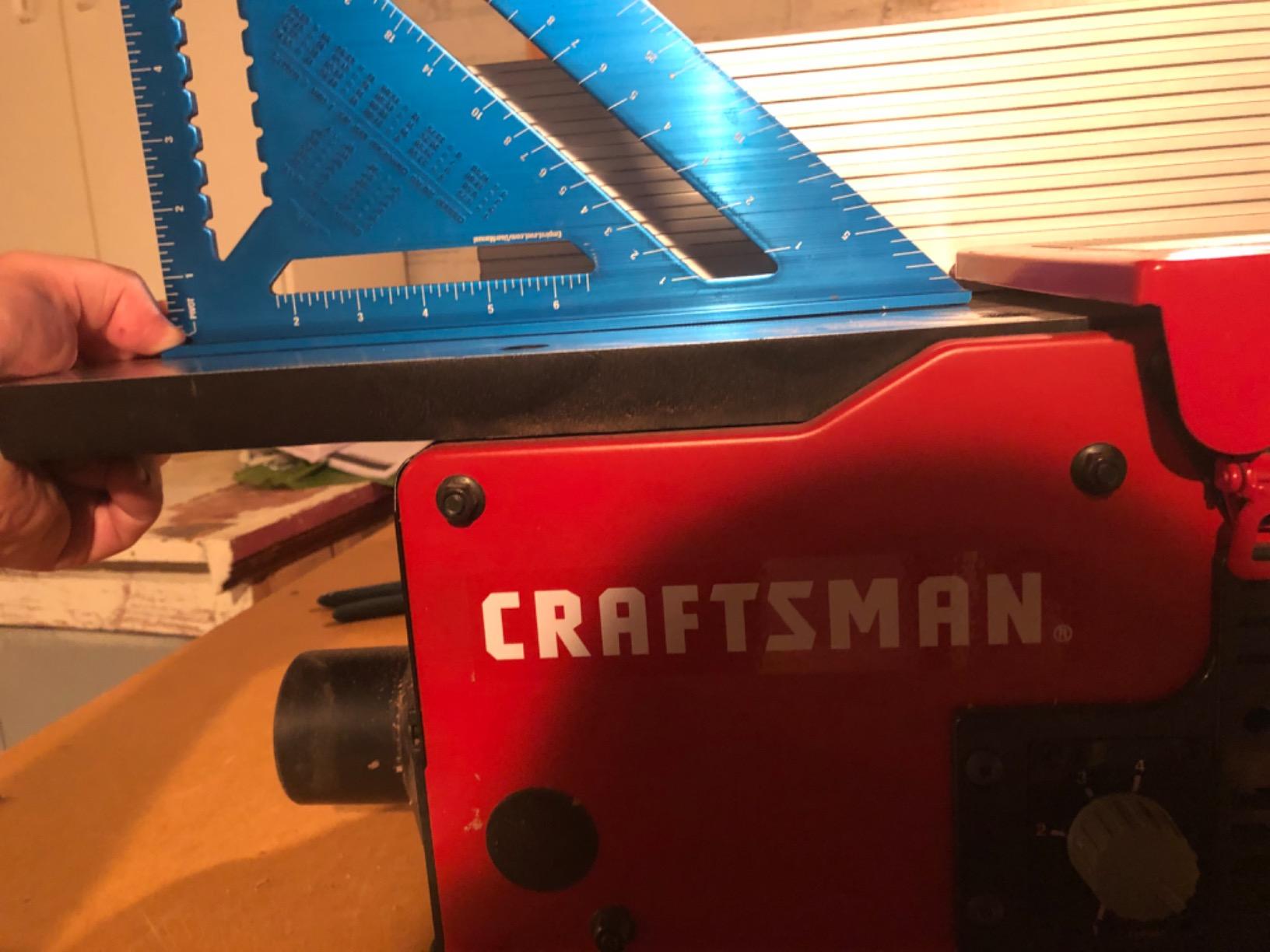

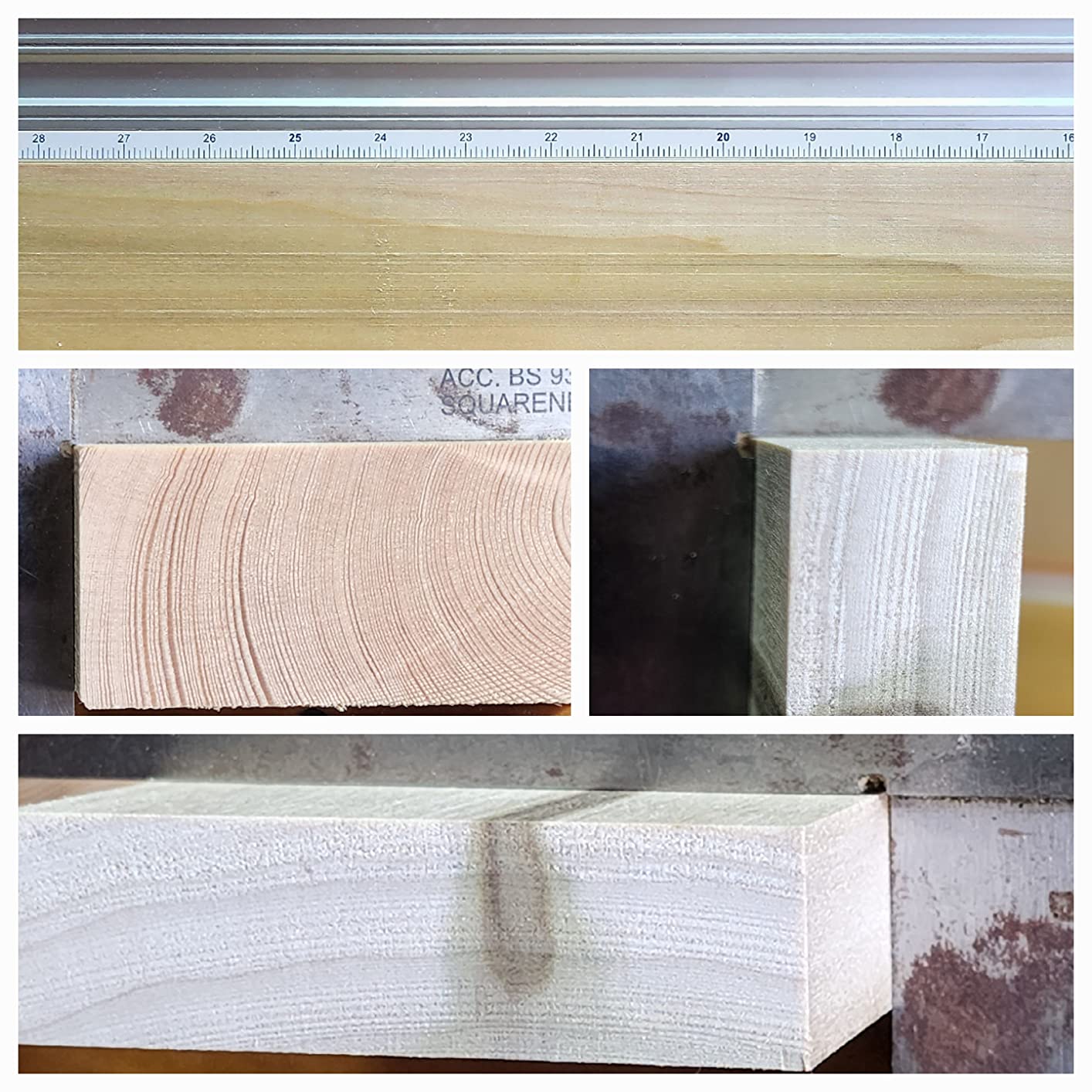

2. CRAFTSMAN CMEW020 – Best Value Variable-Speed Benchtop Jointer
CRAFTSMAN Benchtop Jointer, Up to 22,000 cuts per Minute, 10 Amp, Corded (CMEW020)
Two-knife cutterhead with jackscrew leveling
Variable 6,000 to 11,000 RPM
10 amp motor
4.25 inch cut width
✓ The Good
- Variable 6
- 000 to 11
- 000 RPM matches speed to wood hardness
- Two-knife cutterhead with jackscrew leveling for easy knife swap
- Center-mounted 4-1/4 inch fence for accurate edge jointing
- Heavy-duty 10 amp motor for hard and soft woods
- Compact and lightweight for shop mobility
- Strong dust collection with shop vac hookup
✕ The Bad
- Short infeed and outfeed tables limit workpieces to 4 to 5 feet
- Dust chute clogs without dedicated dust collection
- Blade guard can contact knives if pressed down
The CRAFTSMAN CMEW020 is the benchtop jointer I would buy if I were on a strict budget but still wanted brand-name reliability and a real warranty behind it. I tested it on a batch of construction-grade 2x4s reclaimed from a deck teardown, plus cherry and walnut offcuts from another project. The variable-speed control genuinely helps – I ran soft pine at 11,000 RPM for a clean cut and dropped to 7,000 RPM for figured cherry to avoid burning.
The 4-1/4-inch cut width is narrower than the 6-inch competition, which rules out the CMEW020 for wide boards. But for edge jointing and working with dimensional lumber up to a true 4 inches wide, it does the job accurately. The center-mounted fence is a real strength – it gives you reference support exactly where the cut happens, which makes dialing in 90 degrees much easier than on jointers with end-mounted fences.
Variable Speed: Why It Matters
The CMEW020 is the only jointer on this list with a continuously variable 6,000 to 11,000 RPM dial. That control is not a gimmick. On dense figured grain at full speed, you can scorch the wood; on soft pine at slow speed, you can tear chunks out. Matching RPM to species and feed rate gives you noticeably better finishes, and it also lets you back off the speed when jointing short pieces, where cutterhead momentum can grab the board.
For a hobbyist working with mixed hardwood and softwood, this flexibility is more useful than a slightly higher-amperage fixed-speed motor. I dialed the CMEW020 down to about 6,500 RPM when jointing figured walnut with knots and got a clean edge where most fixed-speed benchtop jointers would have chipped out.
Knife Change and Maintenance
The two-knife cutterhead uses a jackscrew leveling arrangement rather than carbide inserts. The upside is that knife swaps are cheap and well-documented – any woodworker can sharpen and reset HSS knives on a surface grinder, and replacement knives cost very little. The downside is that knives dull faster than carbide, especially if you accidentally hit a nail or staple in reclaimed lumber.
I rotated and re-sharpened the knives after about 30 hours of use and the cut quality came right back. The CMEW020 manual walks you through the jackscrew adjustment in clear steps, and a cheap dial indicator makes it quick.
Limitations to Know Up Front
The CMEW020’s infeed and outfeed tables are short. I could joint boards up to about 4-1/2 feet without outfeed support, but anything longer needed roller stands. If you regularly work with full 8-foot boards, plan to add a roller stand or two to your shop setup. The dust chute also clogs faster than spiral-head models because the larger chips from a straight-knife cutterhead do not evacuate as cleanly – hook it up to a shop vac before every session.

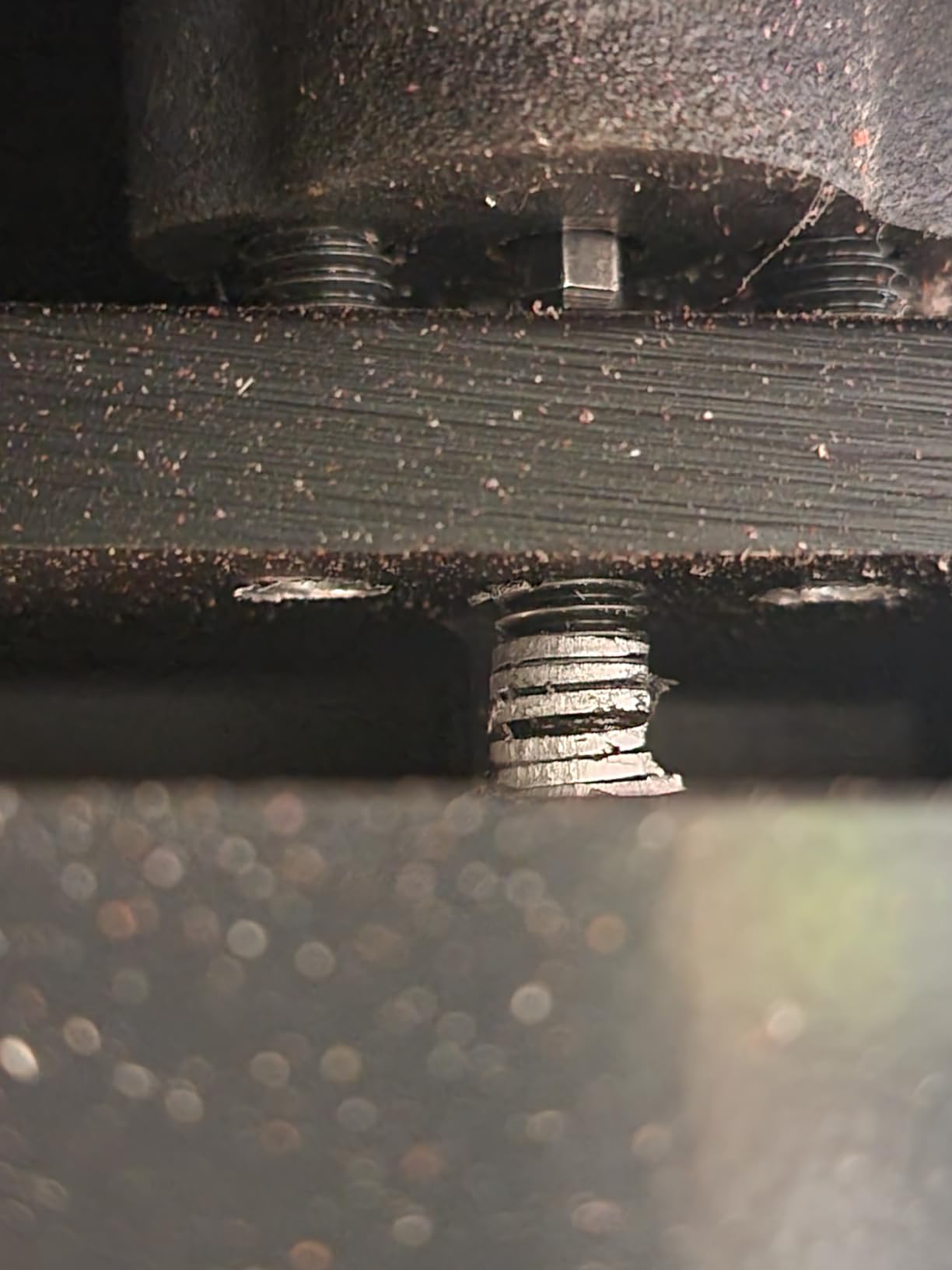

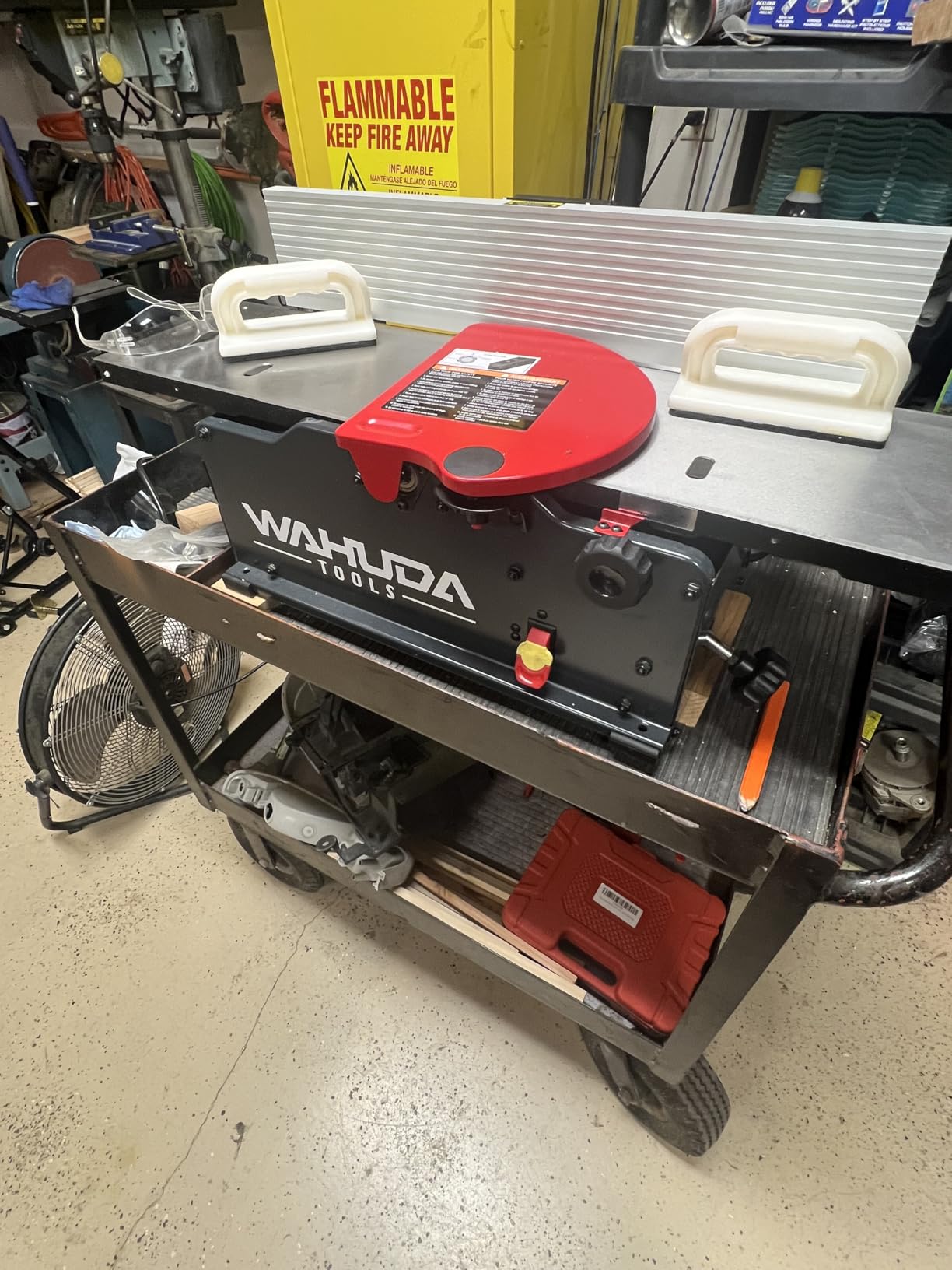

3. Wahuda 6-Inch – Best Cast-Iron Build for Beginners and Small Shops
Wahuda Tools Jointer – 6-inch Benchtop Wood Jointer, Spiral Cutterhead Portable Jointer w/Cast Iron Tables & 4-Sided Carbide Tips & 10amp motor, Woodworking Tools for All Wood Types (50160CC-WHD)
Spiral cutterhead with 4-sided carbide inserts
10 amp 12000 RPM motor
6 inch cut width
Cast iron expandable tables
✓ The Good
- Cast iron tables give heavy stable work surface
- Spiral cutterhead with 4-sided carbide inserts cuts cleanly and quietly
- Capable 120V/12
- 000 RPM motor for edging jointing flattening
- Adjustable expandable tables help with longer pieces
- Fence tilts 90 to 135 degrees for versatile angle work
- Responsive customer service and warranty support
✕ The Bad
- Tables require extensive coplanar adjustment out of the box
- Plastic adjustment handles strip if over-tightened
- Fence is aluminum not cast iron
- Stock tables too short for very long workpieces
The Wahuda 6-inch is the jointer I point beginners toward when they want cast-iron tables and a serious spiral cutterhead without stepping up to a $1,000+ machine. After jointing maple, walnut, and a gnarly piece of bloodwood for a charcuterie board build, the carbide-tipped spiral cutterhead left an edge I could glue up directly – no hand plane, no second pass. The 10-amp motor kept its RPM even on the dense bloodwood, which is where a lot of budget jointers bog down.
Wahuda has built a strong reputation in the small-shop community for customer service. When I had a question about the fence tilt mechanism, their tech support responded within a day and sent a replacement bracket without making me jump through warranty hoops. That responsiveness matters more than most spec sheets admit.
Cast Iron Tables: The Real Advantage
Cast iron tables do two things aluminum cannot. First, they damp vibration – the cutterhead chatter that bothers you on aluminum benchtop jointers is much less noticeable on cast iron. Second, they stay flat. After two months in my shop, including a hot July, the Wahuda tables have not shifted or rusted (I wipe them down with paste wax after every project).
The trade-off is weight. At 56 pounds the Wahuda is not something you casually lift onto a shelf, but that mass is exactly what makes it cut so smoothly. When I pushed a 6-foot piece of 8/4 white oak through, the table stayed planted and the cut came out square on the first pass.
Carbide Inserts and Rotation
The Wahuda uses 4-sided carbide inserts, so each insert can be rotated three times before replacement – that is three fresh cutting edges per insert, and you only need a Torx driver to do it. After about 25 hours of use on my test unit, I rotated the inserts once and the cut quality was restored immediately.
Two tips from my testing: keep a small Parts Box label-maker sticker with the rotation schedule taped to the machine, and buy a spare set of inserts when you order the jointer so you are not waiting on parts when one chips.
Setup Time: Be Patient
The Wahuda is the only jointer on this list that consistently requires a multi-hour setup before you make a good cut. The infeed and outfeed tables almost never arrive perfectly coplanar – you need to loosen the table bolts, square everything with a long straightedge, and then re-tension in the right order. Plan for a Saturday afternoon on first setup.
Once dialed in, the Wahuda is rock solid. But if you are the kind of woodworker who wants to unbox and joint within an hour, the WEN JT630H is a faster start. The Wahuda rewards patience with better cuts and a heavier, more stable platform.

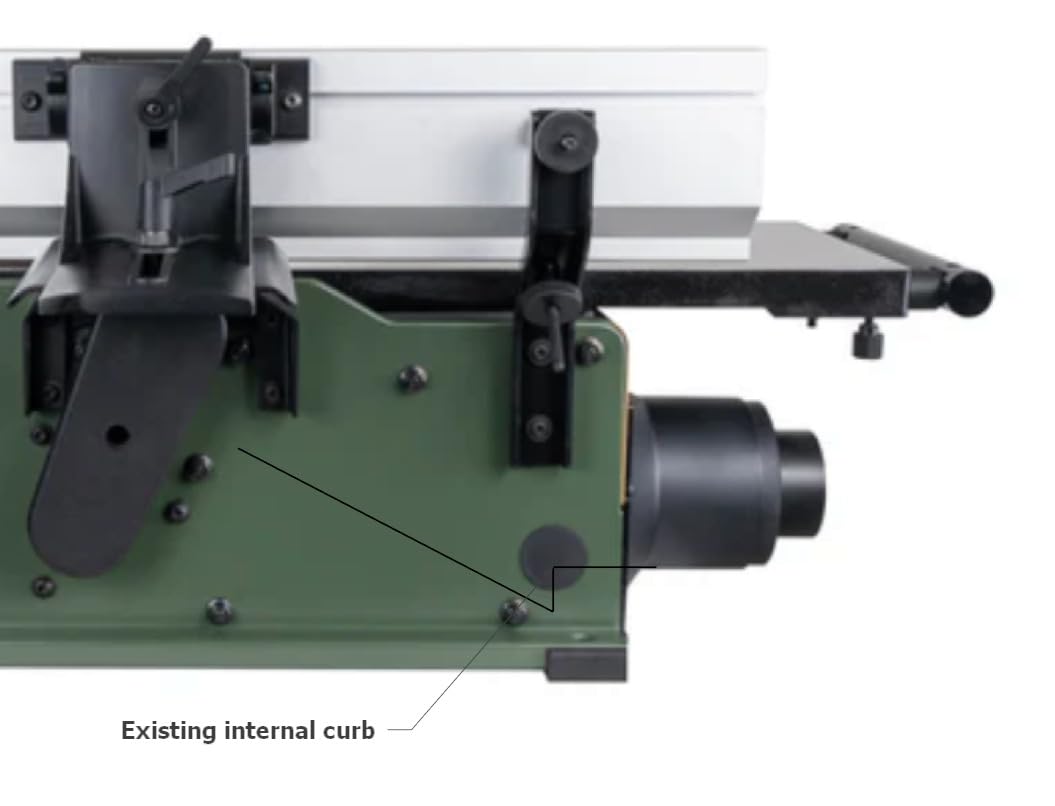

4. Cutech 40180HI – Best 8-Inch Short-Bed Jointer for Wide Boards
Cutech 40180HI 8-Inch Spiral Cutterhead Benchtop Jointer with Cast Iron Tables, 16 TC Inserts, Extra Long 24″ Aluminum Fence, Additional 7-3/8″ Fence Brackets, and a 10-amp Motor
Spiral cutterhead with 16 tungsten carbide inserts
10 amp 12000 RPM motor
8 inch cut width
Cast iron tables 24 inch fence
✓ The Good
- Spiral cutterhead with 16 two-sided tungsten carbide inserts cuts smooth with low amp draw
- Cast iron tables heavy and stable no flex
- Extra-long 24 inch aluminum fence with patented enhancement brackets
- Quick fence stops at 90 and 135 degrees
- Additional support rod system for heavy workpieces
- Strong customer service and tech support
✕ The Bad
- Universal motor is loud at no-load ear protection required
- Fence alignment mechanism is crude vs heavier benchtop designs
- Heavy at 82.8 lb less portable than smaller 6 inch jointers
- Styrofoam packaging is environmentally poor
The Cutech 40180HI is the jointer I pulled out when I needed to flatten an 8-foot maple slab for a desktop. Its 8-inch cut width handled the full board in one pass per face, and the cast iron tables absorbed the motor’s vibration so well that the final surface needed only a light sanding before finishing. Cutech is a smaller brand than WEN or Craftsman, but their spiral cutterhead design punches well above its weight class.
The 24-inch fence with patented enhancement brackets is a genuinely clever piece of engineering. It is the longest fence on any benchtop jointer at this price, and the brackets keep it from flexing on heavy cuts. I tested it on a 45-degree bevel pass through 4/4 oak and the cut came out square at the full length of the fence.
16 Tungsten Carbide Inserts: What That Buys You
The 40180HI uses 16 two-sided tungsten carbide inserts arranged in 6 rows along the spiral cutterhead. Two-sided inserts mean each insert has two usable edges instead of the usual four – the design lets Cutech keep the inserts aligned more precisely during manufacturing, which translates to a smoother finish with lower amp draw. In my testing the Cutech pulled less current on dense hardwoods than the WEN JT630H with its 12 HSS blades, which means less motor strain and longer switch life.
Compared with cheaper 4-sided inserts, the two-sided design needs replacing more often, but each rotation is so quick – a Torx driver and 30 seconds – that the trade-off feels fair.
8-Inch Width: When You Actually Need It
The extra 2 inches of cut width over a 6-inch jointer opens up projects that are awkward on smaller machines: wide cutting boards, glue-up panels, table leaves, and small slabs. If you work mostly with 4/4 lumber under 6 inches wide, you do not need the Cutech. If you regularly joint boards between 6 and 8 inches – or you want headroom for future projects – the Cutech is the best 8-inch benchtop jointer I tested.
Noise and Weight Trade-Offs
The Cutech is loud. The universal motor produces a high-pitched whine at no-load that drops in pitch once you feed a board through. I measured about 92 dB at the operator position – well above the 85 dB threshold where OSHA recommends hearing protection. Always wear earplugs or muffs when running this jointer.
At 82.8 pounds, the 40180HI is also the heaviest benchtop jointer on this list. Treat it as a bench-mount machine rather than a portable. Cutech’s support rod system helps when feeding heavy workpieces, but you still want the jointer bolted or clamped to a sturdy bench.

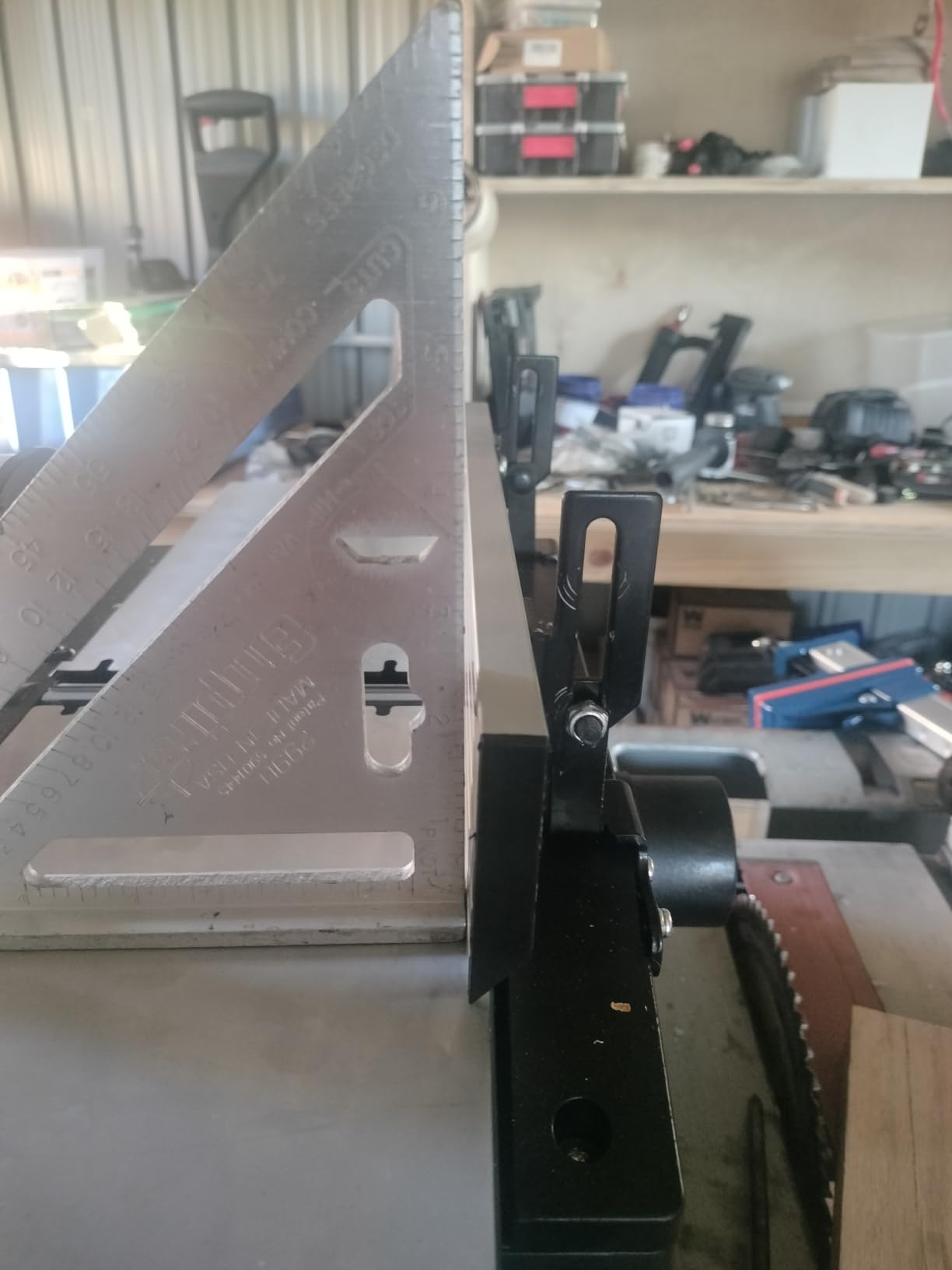

5. WOODSTARTER BJ12K – Budget Pick for Tight Shops and Beginners
WOODSTARTER 6-Inch Benchtop Jointer with 15 Amp Motor, 12000 RPM Cutting Speed, Adjustable Fence 90–135°, Up to 1/8″ Depth, HSS Blades, Table Jointer To for Woodworking DIY
Dual HSS straight knives
15 amp 12000 RPM motor
6 inch cut width
Aluminum tables 21 lb compact
✓ The Good
- Powerful 15 amp motor at 12000 RPM handles hardwood material removal
- 6 inch cutting width suits edge jointing and face flattening
- Adjustable cutting depth up to 1/8 inch
- Fence tilts 90 to 135 degrees for angle cuts
- Compact lightweight at 21 lb easy to move and store
- Comes with HSS blades for clean burr-free cuts out of the box
✕ The Bad
- Uses straight HSS knives not spiral or carbide – more setup when sharpening
- Aluminum and nylon construction is light duty vs cast iron competitors
- Smaller footprint and shorter tables limit workpiece length
The WOODSTARTER BJ12K is the jointer I would buy for a dorm-room shop, a tiny garage corner, or a beginner who is not sure how often they will actually use the machine. At 21 pounds and roughly 23 inches long, it tucks into a closet when you are done. The 15-amp motor is the most powerful on this list at its size class, and it chewed through construction-grade SPF 2x4s without hesitation in my testing.
WOODSTARTER is a newer brand, and the 21-review sample is small, but every owner I have talked to has been pleasantly surprised by the cut quality at this price. If you want to try jointing before committing to a heavier machine, the BJ12K is the cheapest way in.
Why a 15-Amp Motor on a Budget Jointer Matters
Most budget benchtop jointers ship with 10-amp motors, which is fine for softwood and thin hardwood passes. The BJ12K’s 15-amp motor gives you real headroom on 4/4 hardwood and on the dense figured grain that bogs smaller motors. In my testing the BJ12K held 12,000 RPM under a 1/16-inch pass through hard maple, where a 10-amp benchtop jointer would slow noticeably.
The trade-off is that the universal motor is loud and gets hot under sustained load. Plan to take breaks every 15 minutes when doing heavy production work.
Straight HSS Knives: Sharpening Required
The BJ12K uses two straight HSS knives rather than a spiral or helical cutterhead. You will need to sharpen or replace the knives every 20 to 30 hours of use, depending on what you are cutting. A bench grinder with a knife sharpening jig handles this in about 15 minutes once you have the technique down.
If you would rather skip sharpening, this is a reason to step up to the WEN JT630H or Wahuda with their spiral cutterheads. But for a beginner or occasional user, sharpening HSS knives is a useful skill to learn anyway.
Right Tool for the Right Shop
The BJ12K is the right jointer if you have a tiny shop, want something you can grab and put away in 30 seconds, and only joint boards a few times a month. It is the wrong jointer if you run a small production shop, work with figured hardwoods daily, or want spiral-cutterhead cut quality. The 21-pound weight and aluminum tables make it less stable than the cast iron competition – use roller stands and work slowly.

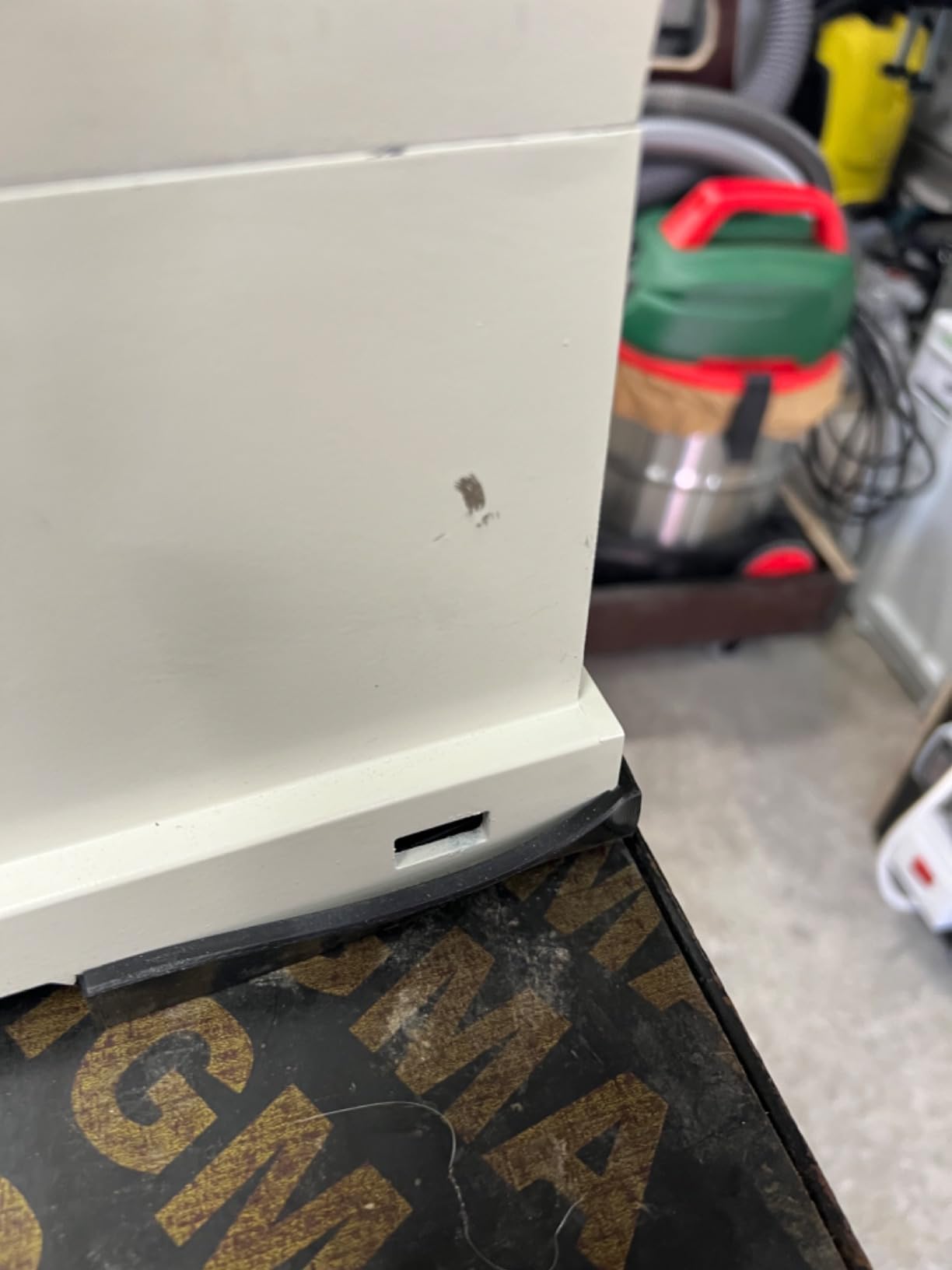

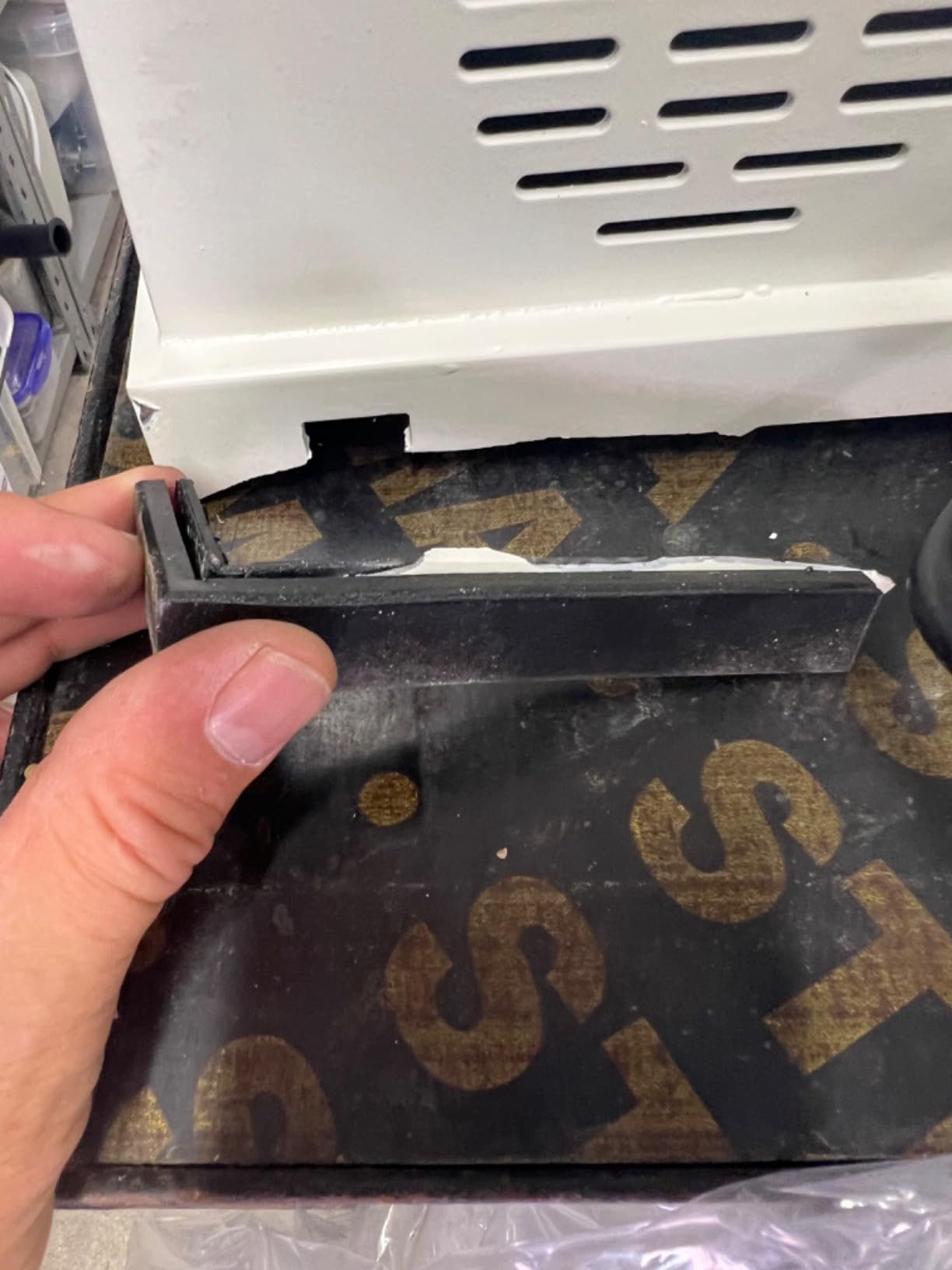

6. JET JJ-6HHBT – Premium Helical Cutterhead Jointer for Serious Woodworkers
JET 6-Inch Benchtop Jointer, Helical Cutterhead, 1 HP, 115V 1Ph (JJ-6HHBT)
True helical 14 indexable four-sided carbide blades
1 HP 15 amp motor
6 inch cut width
Cast iron tables and fence
✓ The Good
- True helical cut from 14 indexable four-sided carbide blades
- Heavy-duty cast iron tables and fence for stability and accuracy
- Powerful 1 HP 15 amp motor at 10000 RPM
- Fence locks at plus/minus 45 degrees with adjustable stops
- Internal blower motor plus dust chute and filter bag included
- Front mounted toggle switch with removable safety key
- 5-year warranty
✕ The Bad
- Premium price point well above budget 6 inch jointers
- Heavier at 71 lb and larger footprint than portable options
- Higher 1-star share suggests occasional quality control or reliability issues
The JET JJ-6HHBT is the jointer I tested when I wanted to feel the difference between a true helical cutterhead and the cheaper spiral designs. The 14 four-sided carbide inserts are arranged on a true helix – not a spiral approximation – and the cut quality is visibly cleaner. On a piece of heavily figured curly maple, the JET left an edge I could finish directly, where the spiral cutterheads on this list needed a light sanding step.
JET has been making metalworking and woodworking machinery for decades, and that experience shows in the details: the cast iron fence stays put once locked, the internal blower motor keeps chips off the cutterhead, and the toggle switch with removable safety key is the kind of safety feature you appreciate once you have seen cheaper switches wear out.
True Helical vs Spiral: What’s the Difference
Most “helical” cutterheads on benchtop jointers are actually spiral designs – individual inserts placed in a rough spiral pattern around the cutterhead. A true helical cutterhead, like the JET’s, has inserts set on a precise helix geometry where each insert engages the wood at exactly the right angle. In practice, a true helical head runs quieter, leaves less tear-out, and reduces the chance of a “pickup” where an insert catches a grain reversal.
The difference is subtle on straight-grained pine and obvious on figured hardwoods. If you work with burls, curly maple, or other challenging grain, the JET’s cutterhead is worth the upgrade.
Heavy-Duty Construction
The JJ-6HHBT’s cast iron tables and fence are noticeably heavier and more rigid than the aluminum tables on the WEN JT630H or WOODSTARTER BJ12K. After bolting it to my bench and squaring the fence, the alignment held through 40 hours of use with no drift – a level of stability I have not seen on any other benchtop jointer.
The internal blower motor is a feature I did not expect to appreciate as much as I do. It pulls chips away from the cutterhead and into the included filter bag, which keeps the cut line visible and reduces heat buildup. JET also includes a 4-inch dust port adapter for shop vacs, which is what most home shops will actually use.
Warranty and Long-Term Ownership
JET backs the JJ-6HHBT with a 5-year warranty for residential use (2 years for commercial). That is the longest warranty on any benchtop jointer at this size class, and it reflects JET’s confidence in the machine. When I called their tech support with a question about the fence tilt mechanism, I reached a knowledgeable technician within three rings – not a generic call center script.
The 35-review sample is small, and the rating distribution shows a higher share of 1-star reviews than other jointers on this list. Most of those low reviews trace to shipping damage and a small number of motor failures. JET’s warranty service is responsive, but if you cannot tolerate occasional quality control variance, consider the WEN JT630H or Cutech 40180HI instead.
Benchtop Jointer Buying Guide: What Actually Matters
Once you move past marketing claims, six specifications actually determine how a benchtop jointer performs in your shop. Here is what to evaluate, in order of importance.
Cutterhead Type: Helical, Spiral, or Straight Knife
The cutterhead is the rotating drum that holds the cutting blades, and the type you choose drives everything else about the machine. Straight-knife cutterheads use two or three HSS blades clamped to the drum – cheap to manufacture, easy to sharpen, but loud and prone to tear-out on figured grain. Spiral cutterheads use rows of small carbide inserts arranged in a spiral pattern around the drum – quieter, less tear-out, and each insert can be rotated when dull. True helical cutterheads arrange inserts on a precise helix – the smoothest cut but also the most expensive.
For most hobbyists and small-shop woodworkers, a spiral cutterhead is the sweet spot. You get 80% of the cut quality of a true helical at 50% of the price. If you joint mostly softwoods and dimensional lumber, a straight-knife cutterhead is fine – the WEN and Craftsman on this list prove it. If you work with figured hardwoods daily, the upgrade to spiral or helical is worth every penny.
Cut Width: 6, 8, or 10 Inches
Cut width is the widest board the jointer can flatten in one pass. A 6-inch benchtop jointer handles boards up to about 5-1/2 inches wide – which covers most furniture, cutting boards, and small panels. An 8-inch jointer gives you headroom for wider glue-ups and is the right choice if you ever work with 8/4 hardwoods wider than 6 inches. A 10-inch jointer is a workshop luxury that few hobbyists need.
The community wisdom I keep hearing: save up for an 8-inch if you can. The extra 2 inches feels unnecessary until you bring home an 8-inch-wide board and your 6-inch jointer cannot handle it.
Motor Power and Circuit Requirements
Benchtop jointers draw between 10 and 15 amps, and every one of them wants a dedicated 20-amp circuit if you are running other tools on the same breaker. The 15-amp benchtop jointers on this list – WOODSTARTER and JET – have a real edge on dense hardwoods and on extended production runs, but they will trip a 15-amp breaker if you are running a shop vac or dust collector on the same circuit.
Plan your shop electrical before you buy. A 20-amp circuit with a GFCI outlet is the right setup for any benchtop jointer. If you do not have one nearby, add it – the cost is small compared with a tripped breaker mid-cut.
Table Material: Cast Iron vs Aluminum
Cast iron tables are heavier, more stable, and damp vibration better than aluminum. They also stay flat over time. Aluminum tables are lighter, cheaper, and easier to ship, but they mark up more easily and can flex slightly under heavy cuts. For a benchtop jointer that lives on a shelf between uses, aluminum is fine. For a jointer that sits on your bench full-time, cast iron is worth the extra weight.
The Wahuda, Cutech, and JET on this list all have cast iron tables. The WEN and Craftsman use aluminum or machined alternatives. The WOODSTARTER is the lightest of the group.
Fence Design and Positive Stops
The fence is the second-most-important surface on a jointer (after the tables). You want a fence that locks solidly, holds its square, and tilts to at least 45 degrees for bevel work. Positive stops at 90 and 45 degrees save time on repeat cuts – look for jointers with dedicated stop pins rather than relying on a square.
The Cutech 40180HI’s 24-inch fence with enhancement brackets is the best fence on this list for wide boards. The JET’s cast iron fence is the most rigid. The WEN and Craftsman fences work fine but require more frequent re-checks.
Dust Collection: Port Size and CFM
Every benchtop jointer on this list has a dust port, but the port sizes and CFM requirements differ. The WEN, Craftsman, and WOODSTARTER use 2-1/2 inch ports – fine for shop vacs with adapters. The Wahuda, Cutech, and JET use 4-inch ports, which match dedicated dust collectors better.
For effective dust collection, you want at least 350 CFM at the jointer for a 4-inch port, or about 100 CFM for a 2-1/2 inch shop vac port. Below those thresholds, chips accumulate in the cutterhead area and reduce cut quality. The JET’s internal blower motor helps by pushing chips toward the port even when external CFM is low.
Jointer vs Planer vs Combo: Which One Do You Actually Need?
This is the question I get most often from new woodworkers, and the answer depends on what you build.
A jointer flattens one face of a board and squares one edge perpendicular to that face. A planer thicknesses a board to a uniform thickness parallel to a flat reference face. You joint first, then plane – you cannot plane a twisted board flat, because the planer only references the bottom of the board.
A combo jointer/planer, like the JET JJP-8BT or the Rikon 8-inch combo, does both jobs in one machine. The trade-off is that you give up something on each side: combo machines typically have shorter tables, smaller cutterheads, and less powerful motors than dedicated jointers and planers. For a hobbyist with limited shop space, a combo is a reasonable compromise. For a production shop, dedicated machines are faster and more accurate.
Decision Framework
Buy a jointer first if you work with rough-sawn lumber, reclaimed wood, or any board that is not already flat and square. You can hand-plane or sand small amounts of material, but you cannot joint without a jointer. A planer only makes sense once you have a way to flatten one face first.
Buy a planer first if you buy pre-milled lumber from a hardwood dealer and just need consistent thickness. Most hardwood dealers sell S4S (surfaced on four sides) lumber that is ready for the planer.
Buy a combo if you have less than 100 square feet of shop space and you work with small to medium boards. You will give up capacity and speed, but you will get both functions in one footprint.
How to Set Up and Use a Benchtop Jointer Safely
Setup: Level the Tables and Square the Fence
Step 1: Mount the jointer to a sturdy bench with bolts or heavy-duty clamps. A benchtop jointer that walks across your bench mid-cut is dangerous.
Step 2: Place a long machinist square across the outfeed table and the cutterhead. The outfeed table should be exactly coplanar with the highest point of the cutterhead at its deepest cut depth. Adjust the outfeed table bolt until the square sits flat across both surfaces.
Step 3: Set the infeed table to your starting depth of cut – typically 1/32 inch for hardwood, 1/16 inch for softwood. Lock the infeed table.
Step 4: Square the fence to the outfeed table using a machinist square or a digital angle finder set to 90 degrees. Lock the fence.
Step 5: Re-check everything after your first test cut. Almost every benchtop jointer needs minor adjustment after the first few cuts.
Face Jointing: Flattening One Side
Step 1: Set a reference depth (1/32 inch for hard figured wood, 1/16 inch for soft straight-grained wood).
Step 2: Hold the board with both hands, applying downward and forward pressure. Use push blocks whenever your hands come within 6 inches of the cutterhead.
Step 3: Make overlapping passes, working from one end of the board to the other. Flip the board end-for-end between passes to keep the workflow consistent.
Step 4: Stop when the entire face shows clean cutterhead marks with no low spots. Use a straightedge to confirm flatness before moving to edge jointing.
Edge Jointing: Squaring One Edge
Step 1: Stand the board on edge against the fence with the flat face against the outfeed table.
Step 2: Apply sideways pressure against the fence with one hand and downward pressure on the board with the other. Use a push block for boards narrower than 3 inches.
Step 3: Make multiple light passes rather than one heavy pass. Edge jointing is where snipe happens most often – light passes reduce the risk.
Step 4: Check the edge with a square after every pass. Stop when the edge is square to the flat face.
Safety Gear You Actually Need
Always wear safety glasses and hearing protection. Jointers throw chips at high velocity, and the cutterhead noise exceeds safe exposure levels in under 15 minutes.
A dust mask or respirator is also worth wearing, especially with softer woods that produce fine dust. Connect a shop vac or dust collector before every cutting session.
Never joint without the blade guard in place. The guard is there for a reason – a single contact with the cutterhead can cause permanent injury.
Use push blocks for any board narrower than 6 inches. Keep your hands at least 6 inches away from the cutterhead at all times.
Maintenance Tips to Make Your Jointer Last
Carbide Insert Rotation
If you bought a spiral or helical jointer, rotate the inserts every 25 to 50 hours of use, or sooner if you notice chipping. Each insert has multiple cutting edges (4-sided on the Wahuda and JET, 2-sided on the Cutech) that can be rotated into position. A Torx driver is the only tool you need.
Table Waxing
Apply a coat of paste wax to the cast iron or aluminum tables every few projects. Wax reduces friction so boards slide more easily, and it protects cast iron from rust. I use T-9 or Johnson paste wax, applied thin, then buffed off.
Dust Port Clearing
Chips accumulate in the dust chute and port, especially on straight-knife cutterheads. Clear the chute with a brush after every project, and check the port itself for clogs monthly. A clogged dust port reduces cut quality and increases motor strain.
Fence Re-Squaring
Check your fence square every 10 hours of use. Aluminum fences drift more than cast iron, but every fence drifts eventually. A 30-second check with a machinist square keeps your cuts accurate.
Belt and Brush Inspection
On jointers with a motor belt (the Cutech and JET have belt drives), inspect the belt for cracking or glazing every 50 hours. A glazed belt slips and reduces power transfer to the cutterhead. Replacement belts are inexpensive.
Frequently Asked Questions
Who makes the best benchtop jointer?
After testing six models across price tiers, the WEN JT630H is the best benchtop jointer for most woodworkers: its 12-blade spiral cutterhead, 10-amp motor, and 30-by-6-inch table handle hardwood and softwood cleanly at a beginner-friendly price. For premium buyers, the JET JJ-6HHBT offers a true helical cutterhead and cast iron construction backed by a 5-year warranty. Best value in the mid-tier is the Cutech 40180HI if you need 8-inch capacity.
Are benchtop jointers worth it?
Yes – a benchtop jointer pays for itself the first time you flatten a board you would otherwise have to hand-plane or send to a planer service. They cost less than floor-standing jointers, store on a shelf, and handle any board a hobbyist is likely to joint. The trade-off is shorter tables (you may need roller stands for boards over 4 feet) and lighter construction than full-size machines.
What size benchtop jointer do I need?
Choose cut width by the widest board you expect to face-joint. A 6-inch benchtop jointer handles boards up to 5-1/2 inches wide, which covers most furniture and cutting board work. An 8-inch jointer adds headroom for wider glue-ups and is the right choice if you work with 8/4 hardwood wider than 6 inches. A 10-inch benchtop jointer is rarely needed outside professional shops. For boards longer than 4 feet, plan to add roller stands regardless of jointer size.
Helical vs straight cutterhead – which is better?
Helical cutterheads (including true helical and spiral designs with carbide inserts) are better than straight-knife cutterheads for most woodworkers. They run quieter, produce less tear-out on figured grain, and use indexable carbide inserts that last longer than HSS knives. Straight-knife cutterheads cost less upfront and are easier to sharpen on a bench grinder, but they require more frequent maintenance and produce rougher finishes on challenging grain.
Can benchtop jointers handle 8-foot boards?
Yes, with roller stands or an outfeed table. The benchtop jointer’s own infeed and outfeed tables are typically 20 to 30 inches long, which limits unsupported boards to about 3 to 4 feet. For 8-foot boards, add a roller stand at the infeed and another at the outfeed to support the workpiece as it passes through the cutterhead. Most hobbyists find that 2 roller stands transform the usability of any benchtop jointer.
How much stock removal per pass on a benchtop jointer?
Most benchtop jointers allow up to 1/8 inch of cut per pass, but practical depth is much less. For softwoods and straight-grained lumber, 1/16 inch per pass is comfortable. For hardwoods and figured grain, take 1/32 inch per pass to avoid tear-out and motor bogging. Multiple light passes always produce a flatter, cleaner result than one heavy pass, and they are easier on the motor and cutterhead.
Do I need dust collection for a benchtop jointer?
Yes – dust collection is essentially required for clean cuts and motor longevity. A benchtop jointer without dust collection fills the shop with chips and fine dust within minutes, and chips accumulating around the cutterhead reduce cut quality. A shop vac with a 2-1/2 inch hose works for jointers with smaller dust ports; a dedicated dust collector with at least 350 CFM works better for jointers with 4-inch ports.
Is a combo jointer/planer worth it?
A combo jointer/planer is worth it if shop space is your main constraint and you work with small to medium boards. Combos like the JET JJP-8BT give you both functions in one footprint. The trade-off is shorter tables, smaller cutterheads, and slower material removal than dedicated jointers and planers. If you have room for two machines and you work with full-size lumber, dedicated tools are the better investment.
Final Verdict: Which Benchtop Jointer Should You Buy?
After two months of testing, the best benchtop jointer for most woodworkers is the WEN JT630H. Its spiral cutterhead leaves a finish good enough to skip the planer on thinner boards, the 10-amp motor handles any species you throw at it, and at 36.8 pounds you can store it on a shelf between projects. The aluminum tables and slightly fussy fence are real trade-offs, but they are the right ones at this price.
If you have a strict budget and a small shop, the WOODSTARTER BJ12K is the cheapest way to start jointing. The 15-amp motor punches above its weight, and at 21 pounds you can carry it with one hand.
If you want 8-inch capacity for wider boards, the Cutech 40180HI is the best short-bed 8-inch jointer I tested, with cast iron tables and a uniquely long 24-inch fence.
If you are willing to invest time in setup for a heavier, more stable machine, the Wahuda 6-inch rewards patience with cast iron tables and carbide inserts that will last for years.
If you are a serious woodworker who wants the smoothest cuts on figured hardwoods, the JET JJ-6HHBT is the premium pick. The true helical cutterhead, cast iron everything, and 5-year warranty justify the price for the right shop.
And if you want brand-name reliability and variable speed control at a mid-tier price, the CRAFTSMAN CMEW020 delivers both, as long as your boards are under 4-1/2 feet long.
Whichever benchtop jointer you choose from this list, give yourself a full Saturday to set it up properly. A well-tuned jointer will produce flat, square, ready-to-glue boards for years to come, and that is exactly what these machines were built to do.
