10 Best: 60 gallon air compressor for auto shops (October 2026)

Most auto shops do not need a bigger air compressor than they need a smarter one. The best 60 gallon air compressors for auto shops are the units that refill a 60-gallon receiver fast enough to keep two impact wrenches running at once, hold working pressure between 135 and 175 PSI, and get through a ten-hour day without cooking themselves. We spent weeks comparing ten genuine 60-gallon stationary compressors on the specs that decide whether a shop flows or stalls.

The mistake most buyers make is shopping by tank size. Gallons tell you how long you can work before the pump restarts. CFM at 90 PSI tells you whether the tools you own will keep running while you work. A 60-gallon tank paired with a modest single-stage pump produces a shop that sounds capable but bogs down every time a 3/4-inch impact gun comes off a lug nut. A 60-gallon tank paired with a strong pump keeps pressure steady through bead seating, HVLP spraying, and blast cabinet work.

Two other filters shaped every pick here. First, we only list real 60-gallon tanks, because most roundups quietly mix in 2-gallon portable units that would never survive a shop day. Second, we treat electrical service as part of the purchase, since a 5 HP motor on a shared 120V circuit will trip more often than it runs. Our buying guide covers CFM matching, 240V circuit sizing, hose diameter, and the maintenance schedule that separates a ten-year compressor from a five-year one.

If you are still working out what your shop actually needs, start with our broader air compressors for air tools guide before you commit to a tank size.

Our Top 3 Picks for a Working Auto Bay

Three units earned the right to sit at the top. The Campbell Hausfeld XC602100 wins on evidence, with the largest verified review base in this group and a two-stage cast-iron pump that holds 175 PSI. The Quincy QT-54 wins on build, a 475-pound commercial-grade casting that shop owners describe as near-indestructible. The Ingersoll Rand SS3L3 wins on efficiency, squeezing 11.3 CFM at 90 PSI out of a 3 HP single-stage pump with a cast-iron block rated past 5,000 hours.

Comparing the Market’s Best 60 Gallon Shop Compressors in 2026

Every compressor below has a genuine 60-gallon ASME receiver and a 230V or 240V single-phase motor. We sorted the CFM at 90 PSI figures first, then checked pump construction, duty rating, warranty length, and published noise level. That is the order that matters in a shop, and it is not the order most spec sheets present.

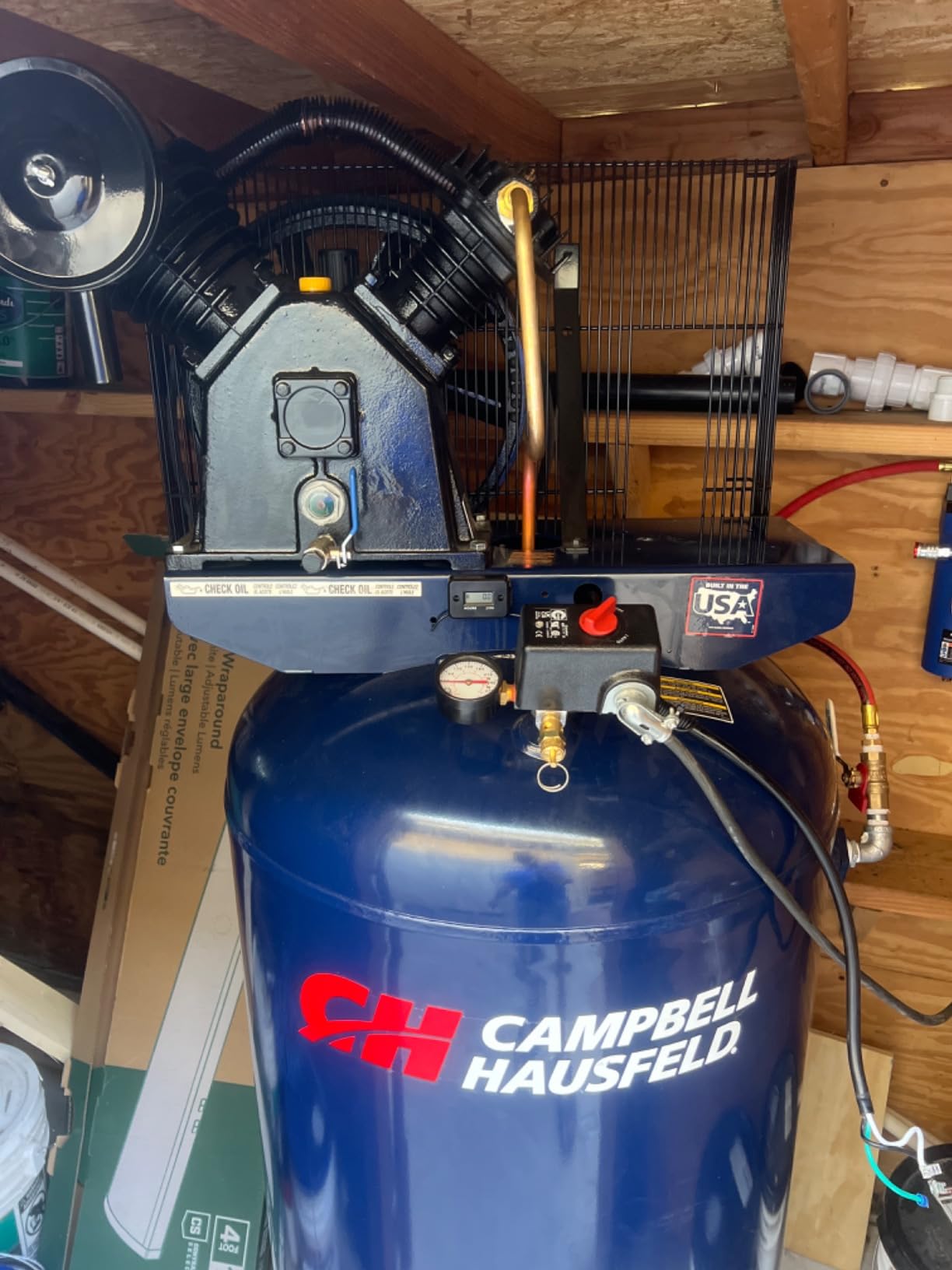

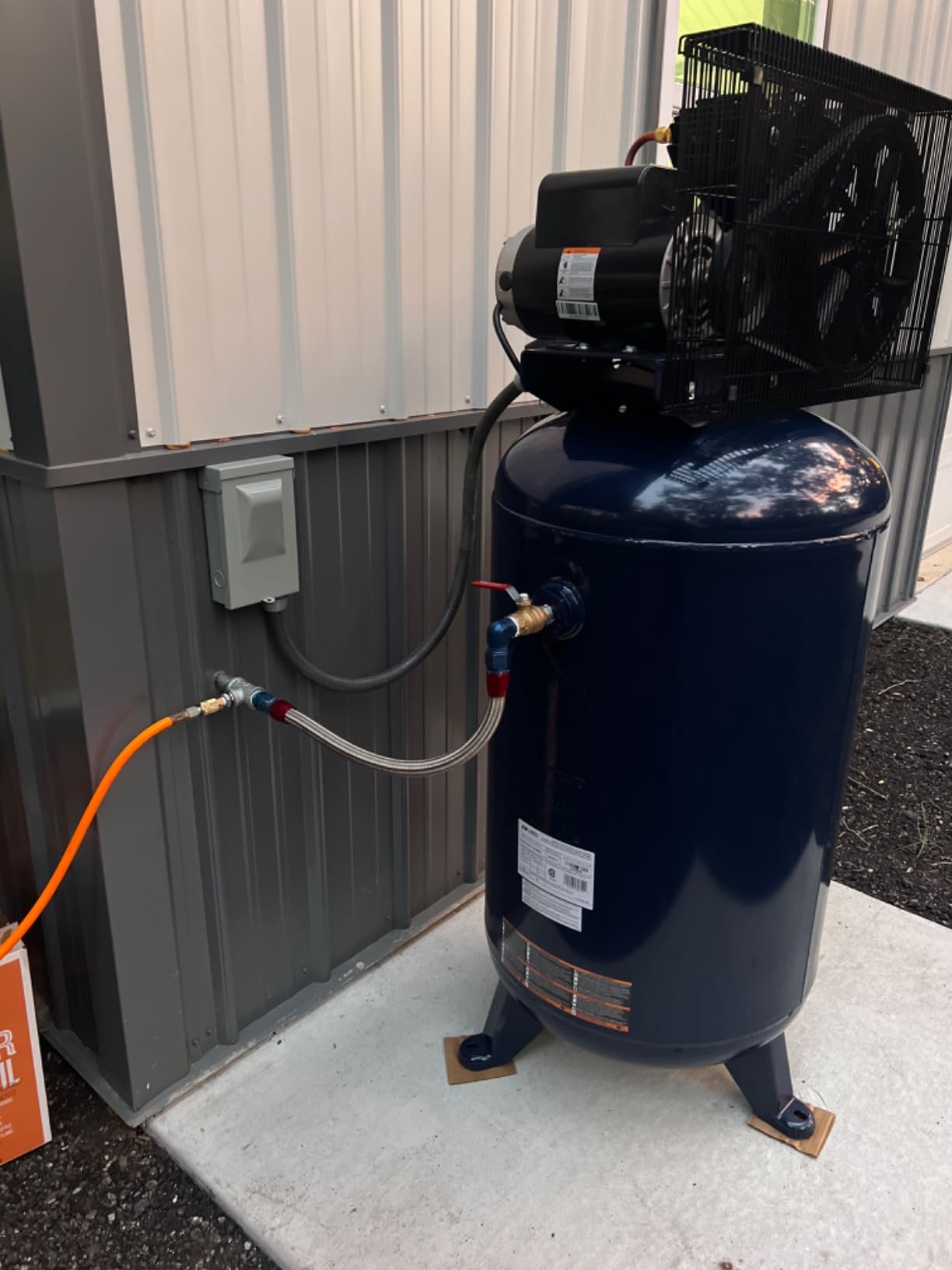

1. Campbell Hausfeld 60-Gallon 2-Stage – The Two-Stage Pick With the Deepest Owner Record

This is the compressor I kept coming back to, because its 130 verified reviews tell a longer story than any other unit in the group. Owners run it for grinding, sanding, painting, nailing, inflation, and bolting, and the pattern in those reviews is consistency rather than excitement. Nothing about it is flashy. It just shows up, builds pressure, and does the same work it did last month.

The two-stage cast-iron pump is the reason it lasts. Two-stage compression moves the air in two passes, which cuts the heat the pump puts into the discharge air and reduces the load the motor carries at a given pressure. That lower thermal load shows up directly in the 175 PSI maximum and the 3.7 running HP induction motor, and it is why the pump carries a 10,000-hour bearing rating rather than the shorter figures typical of single-stage machines.

The honest limitation is airflow. At 7.6 SCFM at 90 PSI, and 6.9 SCFM at the 175 PSI ceiling, this unit will run one impact wrench, a die grinder, or a spray gun without trouble. Run two pneumatic tools together and you will feel the pressure sag. For a single-bay general repair shop that is the right trade, because the pressure ceiling is higher than anything else in this list and the tank refills steadily.

Why the Vertical ASME Tank Matters in a Small Bay

A 23-by-23-inch footprint against a 33-by-29-inch bounding box is the difference between a compressor you can walk around and one you keep bumping. Every shop we looked at has a wall where a horizontal tank would eat the working space needed to get a floor jack under a lift. The vertical format here keeps that clearance, and the ASME certification means the receiver meets the code for pressure vessel construction rather than being a cosmetic steel shell.

Two-Stage vs Single-Stage Under Real Shop Load

The single-stage machines in this roundup make more air per dollar. What they do not do is deliver that air as cool and consistently as a two-stage pump, because all of the compression heat arrives in one pass. In a shop that runs continuously through the day, that extra heat is what shortens pump life and makes an aftercooler or dryer worth adding later. Forum owners debating this choice repeatedly land on the same logic: oversize the pump if you can, because running a compressor at its duty-cycle ceiling is what kills it.

What the Rating Split Tells You

Sixty-seven percent of buyers give this unit five stars and sixteen percent give four, while a fourteen percent one-star tail reflects durability and value concerns on a premium-priced shop machine. That spread is normal for this class of equipment. The people with the highest expectations are usually the ones running two bays at once, and that is exactly the use case where the airflow number becomes the limiting factor rather than the pump.

Who This Suits and Who Should Pass

Buy this one if you run a single-bay repair shop, do occasional HVLP work, and care more about sustained pressure than raw volume. Pass if you plan to run two impact wrenches at the same time or run a blast cabinet regularly. In that case, step up to one of the high-flow two-stage machines further down this list.

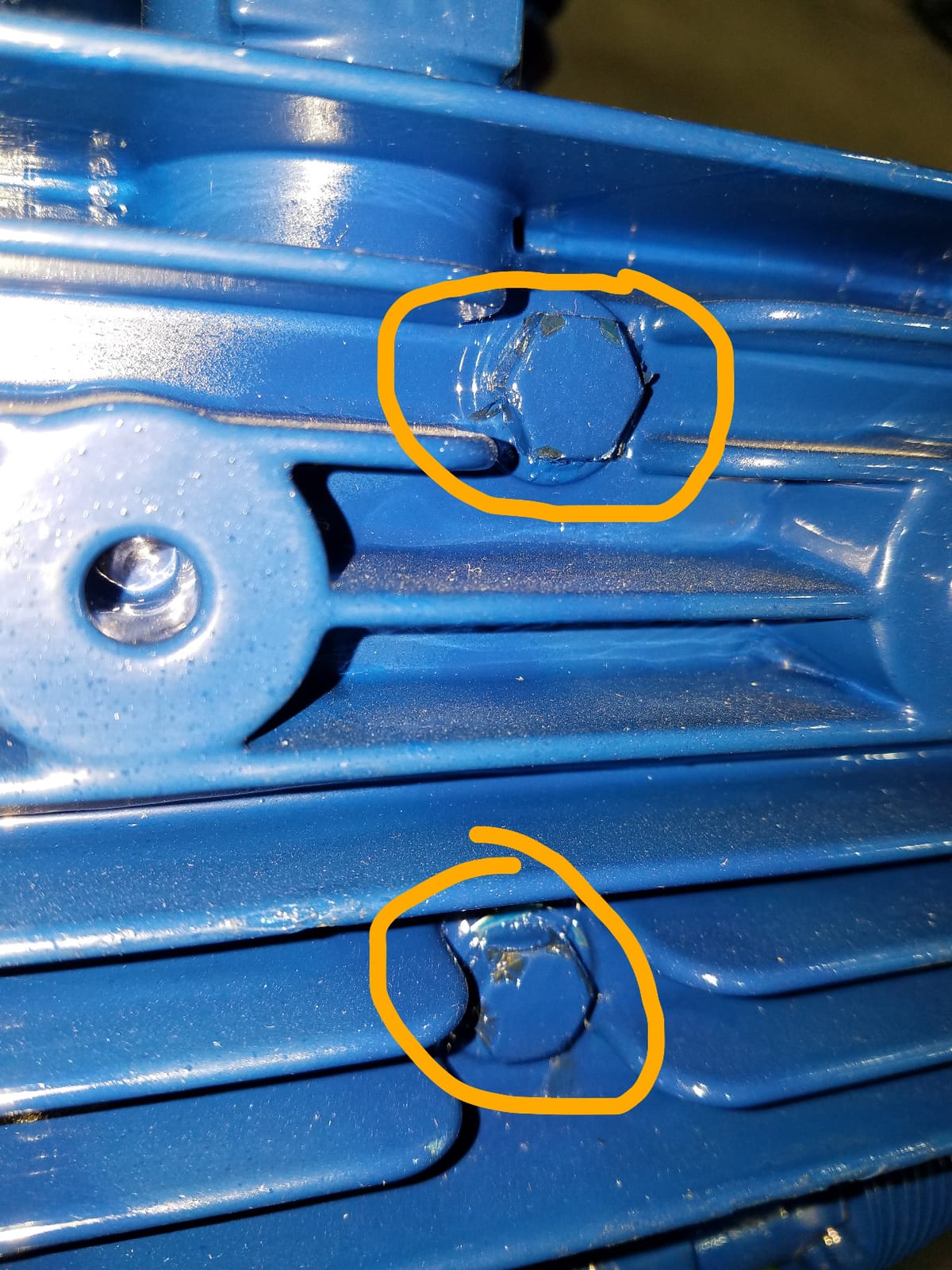

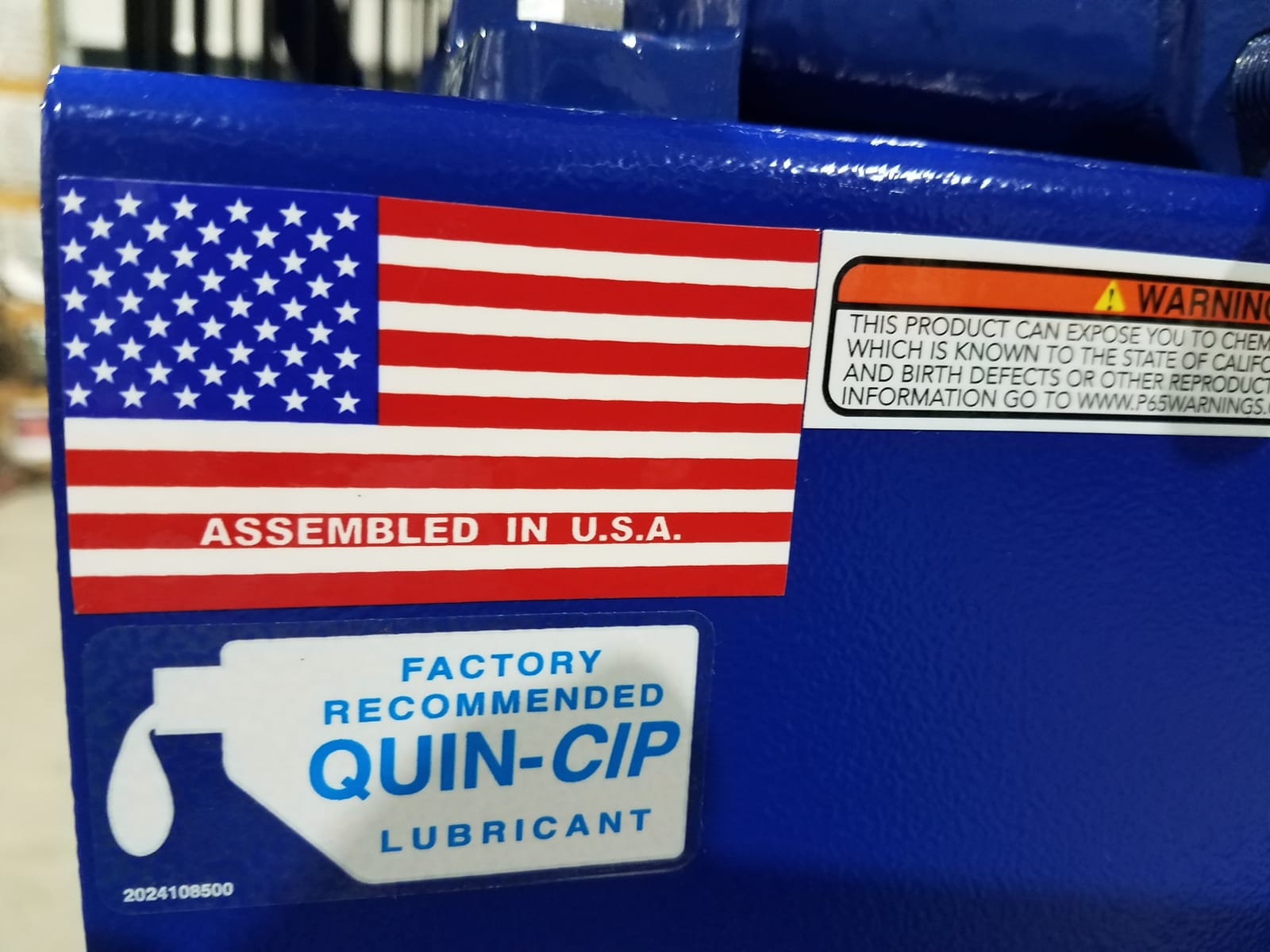

2. Quincy QT-54 5 HP – The Cast-Iron Benchmark Built Like Shop Equipment

Weight is the first thing you notice when this unit arrives, and it is also the honest signal about what you are buying. At 475 pounds across a 29-by-21-by-70-inch vertical package, the QT-54 is built to commercial duty standards, and owners with long service records consistently describe it as the durability benchmark in the mid-range. The QT-54 platform has been in production for a very long time, which is exactly why parts stay available.

Long-run enthusiasts in the reviews praise the smoothness of the pump and how quietly it runs for a machine of this output. The 5 HP splash-lubricated reciprocating pump recovers pressure quickly, and the conveniently mounted moisture drain valve on a tank leg is a small design choice that experienced shop owners appreciate immediately. Nobody wants to crouch behind a tank with a wrench every morning.

The complaint that appears most often is warranty length. Buyers report motor and pressure-switch failures shortly after the one-year parts warranty ends, which is the trade-off you accept when the pump itself keeps running for years. The splash lubrication design is deliberately simple to service, which is part of why a motor or switch swap is straightforward rather than a shop-closing event.

Installation Reality for a 475-Pound Vertical Tank

A unit this size does not go down a residential stairwell or through a residential door opening without planning. Freight delivery with liftgate service is standard for this class of equipment, and positioning takes two people or a ramp. Budget for a floor space check before ordering, and confirm the tank orientation fits through your shop’s access point. The vertical format saves floor footprint once it is in place, but it is 70 inches tall, so check ceiling clearance and overhead door tracks too.

Splash Lubricated vs Oil-Free for Continuous Duty

Splash-lubricated pumps keep oil circulating through the crankcase and cylinders, which means an oil sight glass and routine oil service every few hundred hours. That maintenance is not a weakness, it is the reason these pumps run for decades. Oil-free pumps remove that service item entirely, and in exchange they run hotter, make more noise, and wear faster under continuous load. For a shop that runs air eight hours a day, the lubricated design is the more durable choice.

Warranty Length Versus Service Life

Judge this unit on pump life, not on the paper warranty. A one-year parts warranty on equipment expected to last fifteen years is a normal arrangement in commercial compressors, because manufacturers know the failure rate is low and the pump is the durable part. If your shop cannot absorb a motor replacement outside warranty, pair this purchase with a planned service budget, which is what most long-running shops do anyway.

The Ingersoll Rand comparison below shares the same cast-iron, parts-availability philosophy at a lighter weight, which is worth reading before you commit to the heaviest machine here.

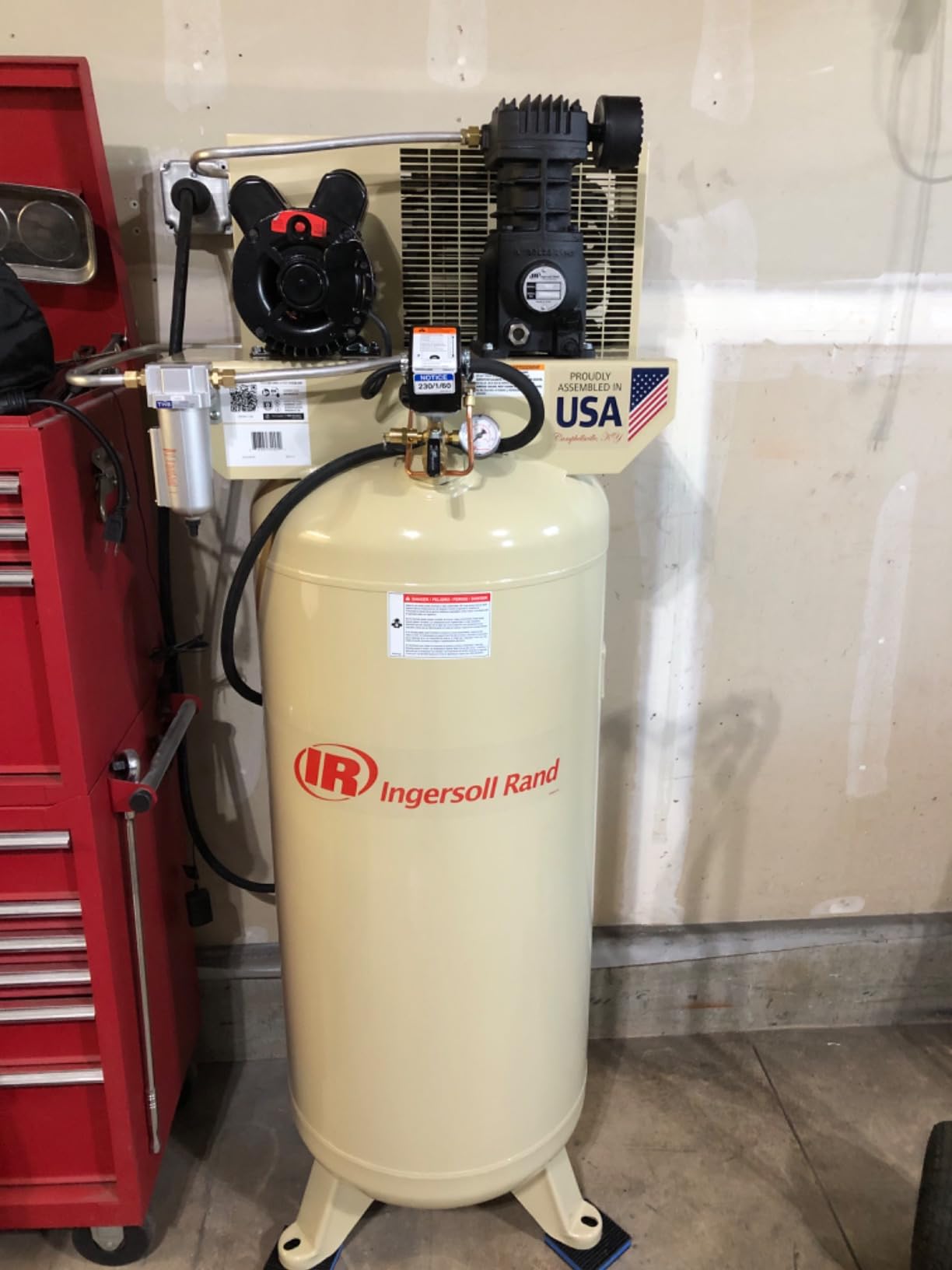

3. Ingersoll Rand SS3L3 3 HP – Best Airflow Per Horsepower in a 60-Gallon Tank

This is the compressor that makes the strongest case for buying on CFM instead of horsepower. A 3 HP single-stage motor producing 11.3 CFM at 90 PSI outranks several 5 HP machines in this roundup, and it does so with 100 percent continuous-duty operation. That combination of flow and duty rating is why it ranks number three in stationary compressors on the sales charts while sitting comfortably in a working bay.

Owners consistently point to service access. The easy filter changes, oil sight gauge, and easy-fill oil port are all things you will touch every month, and having them reachable without pulling the tank apart saves real shop time over a year. The All Season Select synthetic lubricant system is rated for 2,000-hour service intervals, which is longer between changes than conventional oil requires.

The trade-off is the 135 PSI ceiling. Two-stage machines in this list reach 175 PSI, and that headroom matters for bead seating, air-powered jacks, and spray work where you want reserve above the tool’s demand. At 135 PSI with a 90 PSI working band, you still have enough for impact work, but you are working with less reserve than the two-stage units.

What 100 Percent Continuous Duty Actually Means

Duty cycle is the percentage of an hour the pump is allowed to run. A unit rated for continuous duty can run without the motor being undersized for the load, which is the difference between a compressor that is quiet under load and one that gets hot and trips its overload. In a shop where two techs work pneumatic tools all day, continuous-duty rating matters more than the horsepower number printed on the nameplate.

Noise at 78 dB in an Enclosed Garage

The published noise figure sits at 78 dB, which owners confirm is noticeable in an enclosed garage. That is typical for an air-cooled reciprocating pump of this class, and it is a placement problem more than a purchasing one. Set the unit in a rear corner, on a padded surface, away from a customer counter, and the noise stops registering as an issue. If your shop is a customer-facing service area with a reception desk, choose a quieter machine and accept less airflow.

Single-Stage Design Against Daily Intermittent Duty

A single-stage pump is cheaper to build and cheaper to maintain, and it performs well when the demand is intermittent. Brake work, tire service, and general repair duty cycle that way: a few minutes of tool use, then idle. The pump catches up while the tech changes jobs. If your day is constant air consumption instead, the two-stage machines further down this list hold pressure with less heat and less wear.

The single-stage approach at a high CFM level is a legitimate substitute for a two-stage in many shops, which is the argument forum owners make when comparing a higher-flow single-stage against a lower-flow two-stage. Flow is what your tools feel.

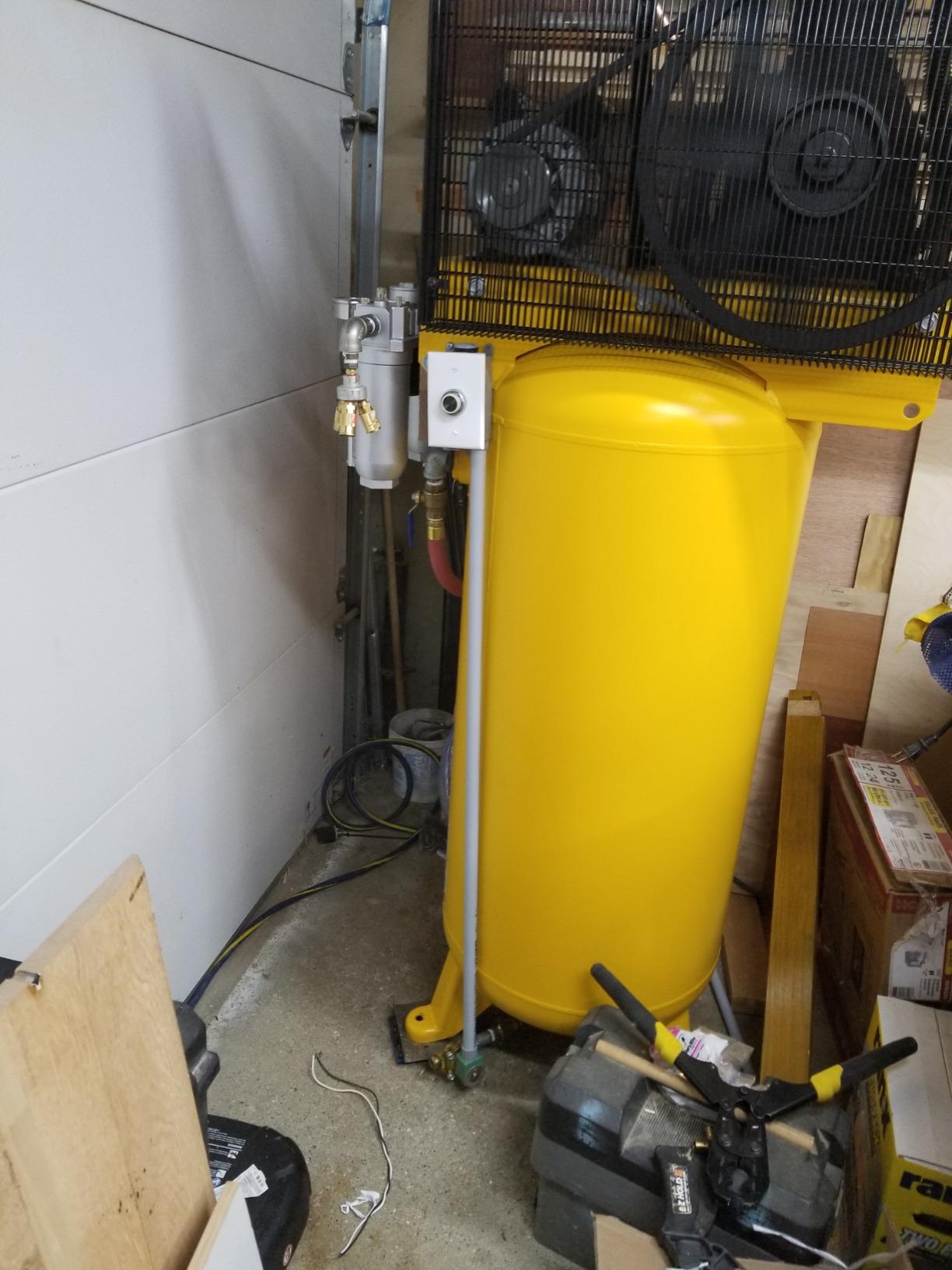

4. DEWALT 175 PSI Two-Stage – The Highest Airflow Machine for Blast and Impact Work

Airflow is the whole story here. At 15.3 CFM with a two-stage, belt-drive, oil-lubricated 5 HP pump, this is the machine to buy if your shop runs blasting equipment, plasma cutters, or large grinders on a regular basis. Owners report it running those loads without trouble, and it recovers from working pressure back to full faster than any other unit in this comparison.

The automatic tank drain valve is a genuinely good shop feature. Standing water in a receiver corrodes the tank from the inside, and an automatic drain removes that failure mode without anyone remembering to do it. Several experienced owners tell us they replace the factory petcock drain on every new compressor regardless of brand, so this one starts ahead of the pack.

Why the 3.7 rating then? The split comes from documentation and manufacturing, not from performance. Buyers cite conflicting instructions between the manual and the manufacturer on oil type, disconnect procedure, and break-in, plus a report of a welded tank seam flaw and a corroded pipe bushing on one unit. The 55 percent five-star share against an eighteen percent one-star share is a classic pattern for a machine that works well but leaves ownership ambiguity.

Blast Cabinets and Media Blasting Air Demand

A blast cabinet is the most demanding air consumer on a typical shop floor. Continuous consumption with no recovery pauses means the pump output alone determines whether the job works at all, because tank volume only buys you a few seconds. This unit’s 15.3 CFM is the reason it can sustain that demand. The smaller single-stage machines in this list will slow a blast cabinet noticeably, which owners of the lower-CFM units specifically call out.

Belt Drive, Two-Stage, and Duty Cycle Reality

Belt drive with a two-stage pump is the conventional heavy-duty shop configuration. The two stages split the compression work, which lowers discharge temperature and lets the pump run longer between thermal trips. Two-stage also means better efficiency at higher working pressures, which is where shop work actually happens when you are dealing with impact tools that stall without reserve pressure.

Where the Quality Complaints Concentrate

Owners document manufacturing defects on individual units rather than a systemic problem: a welded seam flaw, a rusty pipe bushing, and a plastic drain valve on the tank bottom that experienced owners consider a weak point. Documentation confusion around break-in and oil type is worth taking seriously, because skipping the specified break-in procedure is a common cause of early pump failure. Read the manual carefully and follow the oil specification exactly.

At a 40-by-31-by-80-inch footprint, this is one of the larger units here. Measure the bay before ordering, and check that the tank can be filled and positioned through your access point.

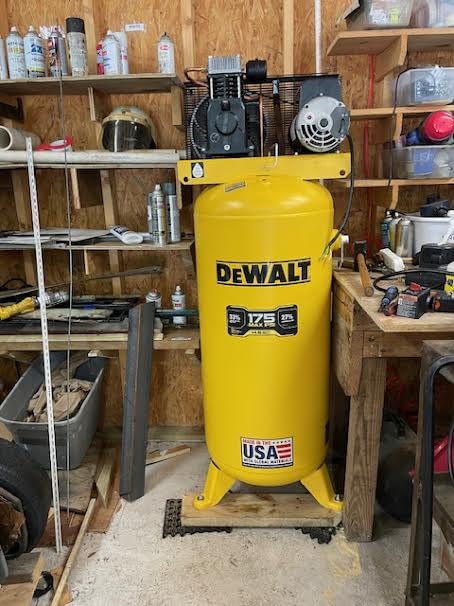

5. DEWALT DXCM603.COM 60 Gallon 175 PSI – The Best Balance of Flow, Pressure, and Pump Warranty

This is the unit we would put in a two-bay shop that needs both flow and headroom and does not have three-phase power. A 5 HP motor delivers 14.6 SCFM at 90 PSI and holds up to 175 PSI, which is the rare combination in a single-phase machine. It is second only to the DEWALT above it on airflow, and it adds a two-year pump warranty where most competitors in this price class offer one year.

The hookup details are the ones buyers mention most. The large air outlet port with an integrated pressure gauge and on/off switch means you are not hunting for a small fitting behind a tank, and the vertical configuration keeps the footprint tight. Seventy-seven percent of verified buyers rate it five stars, with airflow and value the two things they single out.

Noise is the recurring criticism, at a published 70 dB. That is acceptable in a work bay and not acceptable in a customer-facing waiting area, so placement matters. As with the other compressors here, the fix is a rear corner on vibration pads rather than a different machine.

Why Two-Year Pump Warranty Changes the Math

A two-year pump warranty gives you one full extra year of coverage on the component most likely to fail. On a machine expected to live a decade, that extra year changes the ownership calculation more than any small spec difference. It also reduces the sting of the one-year parts coverage that dominates this category, since the pump is the expensive part and the switch and motor are not.

Two-Bay Shops and Simultaneous Tool Use

Two techs running pneumatic tools at the same time is the test that eliminates most 60-gallon machines in this list. With 14.6 SCFM at 90 PSI, you have headroom for a pair of 1/2-inch impact wrenches, an air ratchet running continuously, and a bead-seating chuck without waiting for recovery. Lower-CFM units in this roundup will work, but they will make you wait between tasks, and waiting is the part that customers see.

Setup and Installation Notes

The 240V single-phase requirement is standard for a 5 HP shop compressor, and it means a dedicated branch circuit with a properly sized breaker and copper conductors. Extension cords are a documented cause of nuisance trips and motor damage, so hardwire this one. Verify the circuit capacity before delivery day, because compressor installers will not run a compressor on a circuit that cannot carry it.

6. DEWALT DXCM602.COM 3.7 HP – The Lightest and Narrowest 60-Gallon Unit Here

At 200 pounds and a 22.5-inch square footprint, this is the unit to choose when floor space or installation access drives the decision. Everything else in this roundup weighs 247 to 475 pounds. For a shop working out of a converted garage or a bay with a tight corner, the difference between moving a 200-pound machine with a hand truck and a 475-pound machine with a crew is the whole installation day.

The spread-volt motor is the underrated feature. It accepts both 208V and 230V supply, which matters more than it sounds in regions where 208V is common and a 230V-only compressor will not start. Owners also report fast pressure build and delivery matching the spec sheet, at 11.5 CFM at 90 PSI.

Spread-Volt Motors and Regional Supply Differences

Most shop compressors assume 230 or 240V single-phase. A spread-volt winding is engineered to run on both 208V and 230V, so one purchase covers more service configurations. It is a small decision on paper and a real one in regions with 208V supply, and it removes a return-shipment risk that is otherwise easy to hit.

87 dB Is the Loudest in the Group

This unit carries the highest published noise figure in our lineup, and owners who installed it confirm it is loud even with the muffler. The 3.5 rating reflects that reality alongside airflow complaints and warranty handling on damaged-arrival machines. If your shop shares a wall with a customer area, do not put this one next to it.

When 11.5 CFM Is Enough and When It Is Not

For hand tools, air ratchets, impact wrenches up to 1/2 inch, tire work, and cleaning, 11.5 CFM at 90 PSI is adequate. For a continuous blast cabinet, it is not, and owners say so directly. Match the CFM to the most demanding tool you actually plan to run continuously, not to the biggest tool you own occasionally.

Preparing the Electrical Service Before It Arrives

No power cord is included, which is normal for a 3.7 HP shop unit and one more reason to hardwire rather than plug in. At a 15 amp maximum current draw, this is the lightest electrical load in the comparison, but it still needs a dedicated branch circuit and proper conductor sizing. Extension cords cause nuisance trips and motor damage, which is the single most common installation mistake we see.

7. PORTER-CABLE 3.7 HP 60-Gallon Oil-Lube – A Solid Intermittent-Duty Workhorse

This is the compressor for a repair shop with steady but not constant air demand. A 3.7 HP oil-lubricated reciprocating pump delivering 11.5 CFM at 90 PSI covers brake work, tire service, ratchets, small grinders, and cleaning without strain. The factory-filled synthetic oil extends the first service interval, which means one less thing to schedule in the first year of ownership.

The integrated pressure gauge and on/off switch keep the operating controls on the front of the machine rather than behind the tank. At 247 pounds it is heavy enough to stay put and light enough to reposition with two people. Seventy-four percent of verified buyers rate it five stars, with no two- or three-star ratings recorded at all.

The 40 PSI Figure and Why You Should Ignore It

The spec sheet lists 13.4 CFM at 40 PSI and 11.5 CFM at 90 PSI. The 90 PSI number is the one that matters for shop work, because that is where your tools actually demand air. Comparing a compressor’s quoted 40 PSI flow against another’s 90 PSI figure is the most common spec-sheet trap in this category, and it flatters machines with modest real-world output.

Oil-Lubricated Pumps and Service Intervals

Oil-lubricated pumps require periodic oil changes and attention to the intake filter, and that maintenance is the reason they outlast their oil-free counterparts in continuous service. A shop that commits to a quarterly oil check and annual filter service will get years of service from this design. A shop that treats maintenance as optional will lose any compressor, lubricated or not.

Reading a Thin Review Base Honestly

Eleven verified reviews is a small sample, and the listed maximum pressure value is unclear for a shop duty cycle. We include this machine because the airflow figures and the build quality are competitive and because the oil-lubricated, synthetic-oil design is the right architecture for shop work. What we cannot tell you from this data is its ten-year durability record, and we would rather say so than pretend.

8. Quincy Q13160VQ 3.5 HP – The Smoothest and Quietest Single-Stage Running

The reason to look at this machine is the pump speed. At 1,250 RPM the reciprocating pump moves more air per cycle with less mechanical noise than a faster single-stage design, and owners describe the running as smooth and easy to live with. At a published 68 dB, it is the quietest machine in this comparison, which makes it the one to consider for a shop with a reception area or shared walls.

Airflow is respectable at 12.4 CFM at 100 PSI, with a 145 PSI maximum. That combination suits hand tools, ratchets, impact wrenches up to 1/2 inch, bead seating, and cleaning. The half-inch air outlet matches standard shop hose, which is a practical detail that saves adapters on the wall.

Why Pump RPM Affects Shop Noise

Compressor noise comes from three places: the motor, the belt and bearings, and the reciprocating action of the cylinders. Slowing the reciprocating action reduces the third of those substantially, because the air is moved in larger, slower strokes instead of fast small ones. That is why this machine can be quiet at an output where other single-stage compressors in this list run noticeably louder.

145 PSI Versus 175 PSI: Where the Difference Shows

The 145 PSI ceiling leaves less reserve above a 90 PSI working band than a 175 PSI two-stage unit. Reserve matters most when a large impact wrench or an air jack stalls and the tool needs the tank pressure to stay high. In mixed duty with moderate tools, 145 PSI is not a limitation. In heavy impact and tire work, the higher ceiling is worth paying for.

Interpreting a Ten-Review Rating

At 4.6 across ten ratings with seventy-nine percent five stars, this is the highest average in the roundup, and the sample is too small to lean on. The one substantive complaint is a pressure switch failure at roughly the one-year mark. A pressure switch is a low-cost, high-consequence part, so treat that as a service item to budget rather than a design flaw.

If your shop is quieter than it is heavy, and you want the smoothest running unit with the least floor noise, this is the pick. If you need maximum reserve pressure, look at the two-stage machines earlier in this list.

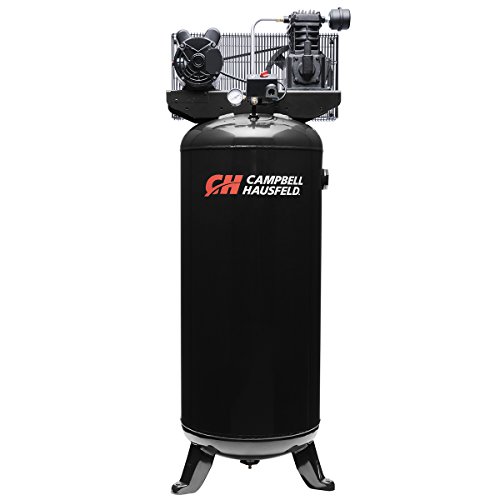

9. Campbell Hausfeld VT6395 – The Straightforward Entry Into a 60-Gallon Tank

The cast-iron two-cylinder oil-lubricated pump and the ASME-certified vertical tank are the two reasons this machine is worth a look. Two cylinders smooth out the power delivery compared with a single-cylinder design, and the ASME receiver is the same pressure-vessel standard used across this roundup. At 255 pounds it sits right in the middle of the weight range and moves without a crew.

Owners report that it works as expected once proper 240V wiring is in place, which is the actual installation hurdle for any of these units. Plan the electrical service before you order, and this becomes one of the least complicated installs in the group.

What Three Reviews Can and Cannot Tell You

A perfect five-star average from three verified buyers tells you the machine functions correctly for the people who bought it. It does not tell you about five-year durability, and we will not pretend otherwise. Judge this one on its architecture, which is sound, rather than on its review count, which is not a data set.

Where 10.2 CFM Runs Out of Road

This is the lowest airflow in the comparison, and it is the limiting factor. One impact wrench plus an air ratchet is fine. Two pneumatic tools running together means waiting for recovery. Continuous blast cabinet work is out. If your shop is a tire and lube operation with intermittent tool use, that is not a problem at all.

The 135 PSI Ceiling in Practice

The 135 PSI ceiling is the other constraint. Shallow reserve above a 90 PSI working band means less help when a tool demands a burst. On light general repair, bead seating, and cleaning it is adequate. On impact-heavy work with 1/2-inch and larger guns, buy the extra headroom.

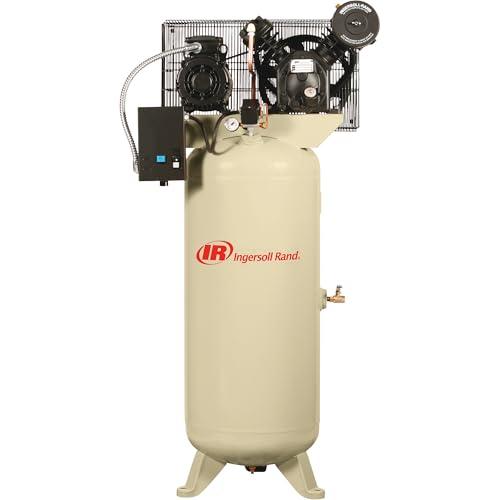

10. Ingersoll Rand 2340L5-V 5 HP Two-Stage – Built for Three-Phase Shops and the Longest Pump Life

If your shop already has a three-phase service panel, this is the highest-build machine in the roundup. The cast-iron construction is rated for more than 15,000 hours of trouble-free use, which is the longest published pump life here, and the two-stage 5 HP configuration holds steadier pressure under sustained load than any single-stage alternative. At a published 69 dB it also runs quieter than its output suggests.

The All Season Select synthetic lubricant system and the easy-to-service design are the details that matter over a decade of ownership. Synthetic lubricant extends service intervals, and a design that is easy to service means the filter and oil changes actually get done in year five rather than never.

Three-Phase Changes the Buying Decision

A 460V three-phase supply is not something you add for a compressor. It is infrastructure that exists in larger industrial buildings or is installed as a separate project with its own panel, conductor sizing, and electrician cost. Most independent auto shops do not have one, which makes this a specialist purchase for shops that already do.

Two-Stage Efficiency Under Continuous Load

Two-stage compression is the reason this pump is rated for a duty cycle far beyond a single-stage machine. Splitting the compression into two passes lowers discharge temperature, which lowers the thermal load on the motor and the bearings. Over thousands of hours, that difference compounds, and it is the technical explanation for the 15,000-hour rating.

430 Pounds and Scheduled Delivery

At 430 pounds, this unit needs scheduled delivery and planned positioning rather than a hand truck. Confirm the delivery method includes liftgate service to your location, and clear the path from the drop point to its final position before delivery day. Moving a compressor of this weight across a shop floor is a two-person job with a dolly, not an afternoon solo project.

Reading the Three-Review Sample

Three verified reviews, one of which rates it three stars, is too small a set to draw reliability conclusions from. The pump rating and build specification come from the manufacturer and are the reason to consider this machine. The buyer who rated it reported it working properly after scheduled delivery, which is consistent with the design.

How to Choose a 60 Gallon Shop Compressor

Now that the lineup is laid out, here is the decision framework behind our ordering. Shop air demand is measured in CFM, not gallons. Every recommendation below follows from that single idea.

Step 1: Match CFM at 90 PSI to Your Actual Tool Load

List the pneumatic tools you actually use, not the ones you own. Then use the demand at 90 PSI, not the peak figure a manufacturer advertises. A rough guide for common shop tasks: air ratchets and small impact wrenches draw light continuous flow, one large impact wrench at a time needs moderate flow, running two pneumatic tools simultaneously needs roughly twice one tool’s demand, an HVLP spray gun needs steady high flow, and a blast cabinet needs the most continuous flow of anything in a repair shop.

Then add thirty to fifty percent headroom to your total. Headroom covers simultaneous use, cold-weather performance, and the natural derating that happens as a pump ages. Forum owners reach the same conclusion from experience: running a compressor continuously at its duty-cycle limit shortens its life, so oversizing airflow rather than buying the cheapest adequate machine is the cheaper long-term decision.

Step 2: Single-Stage or Two-Stage Depends on Your Duty Cycle

Single-stage pumps cost less and often move more air per dollar. Two-stage pumps deliver higher pressure ceilings, run cooler, and last longer under continuous load. For intermittent duty in a general repair or tire shop, a high-CFM single-stage machine is a legitimate substitute for a true two-stage and saves money. For sustained daily air consumption, blasting work, or a two-bay shop running two tools at once, two-stage earns its cost.

Step 3: Oil-Free or Oil-Lubricated Is a Duty Question

Oil-free pumps need no oil service and are the right choice for a detail bay, a paint booth side room, or any application where oil carryover into the air is unacceptable. The trade-offs are real: oil-free units run hotter, make more noise, and wear faster under continuous duty, and multiple owners report oil-free compressors failing within a short service life in demanding applications. For a working repair shop running air eight hours a day, the lubricated pump is the more durable choice and the routine maintenance is a fair price.

Step 4: Size the Electrical Service Before the Compressor

This is the number one pre-purchase blocker in shop compressor buying. A three-horsepower unit needs a dedicated 230 or 240V single-phase branch circuit with a properly sized breaker and copper conductors, and a five-horsepower unit needs a heavier circuit still. Extension cords and undersized wiring cause nuisance trips and motor damage, and those two problems account for a large share of early compressor failures.

If your shop has three-phase service, you have options like the Ingersoll Rand further up this list. If you do not, treat 230 or 240V single-phase as a requirement, and check the panel capacity before delivery day.

Step 5: Check Footprint, Access, and Drainage

Vertical tanks save floor space but stand 65 to 80 inches tall, so measure overhead clearance and the tracks of any overhead door in the bay. Plan how the unit arrives: units in this roundup weigh 200 to 475 pounds, arrive by freight, and typically require liftgate service. Confirm the liftgate reaches your delivery point and clear a path from the drop point to the final position.

On drainage, experienced owners universally replace the factory petcock tank drain with a ball valve, because petcock drains rust shut and fail. Budget a few minutes and a ball valve for the installation day, and you will avoid the most common small failure in the category.

Step 6: Hose Diameter Matters as Much as Compressor Size

A quarter-inch hose will starve an impact wrench regardless of what your compressor produces. Long runs of undersized hose are the single most common reason a shop thinks its compressor is too small when it is not. Use three-eighths-inch or half-inch hose on any run feeding a pneumatic impact tool, keep runs as short as practical, and use a properly sized reel rather than a coiled loop on the floor.

Step 7: Plan the Maintenance Schedule Before Delivery

Drain standing water daily or weekly, check oil levels on lubricated pumps, and change oil and the intake filter on the manufacturer’s stated interval. Every one of these machines uses a synthetic or semi-synthetic lubricant rated for extended service intervals, which means the schedule is longer than for conventional oil but not optional. Shops that drain and service on a schedule get the long pump lives the manufacturers advertise. Shops that skip it get the opposite, and the compressor brand matters less than the discipline.

Who Should Skip a 60-Gallon Tank Entirely

Honesty section: a tire-only shop that inflates and beads tires all day does not need 60 gallons. Neither does a low-hour shop that runs an air ratchet a few times a week. A 20 to 30 gallon unit handles that duty and takes up less floor space and less electrical capacity. Sixty gallons earns its place when you run pneumatic tools for hours, run two at once, or run equipment with continuous demand like a blast cabinet, a parts washer, or a spray booth.

For lighter duty, our home garage compressor guide covers smaller tanks, and the portable tire compressors guide covers roadside and mobile work.

Frequently Asked Questions

Which 60 Gallon Compressor Matches Your Shop Profile

If you run a single-bay general repair shop and value sustained pressure over raw volume, the Campbell Hausfeld two-stage we named Editor’s Choice is the safest all-round buy, with the deepest verified owner record in the group. If you want the machine to outlast several compressors you have owned before, the Quincy QT-54’s cast-iron commercial build and long parts availability justify its weight. If you want the most air per motor horsepower and the lowest ongoing complexity, the Ingersoll Rand SS3L3 takes the value spot.

If your shop runs two pneumatic tools at once or feeds a blast cabinet, airflow is the deciding number, and the DEWALT models at 15.3 CFM and 14.6 SCFM at 90 PSI are the ones to look at. If floor space or installation access is the problem, the 200-pound DEWALT DXCM602.COM fits where nothing else in this list will. If three-phase service already exists in your building, the Ingersoll Rand 2340L5-V offers the longest published pump life here at more than 15,000 hours.

Before any of these arrive, confirm the tank is genuinely 60 gallons, verify the CFM figure at 90 PSI rather than at 40 PSI, have the dedicated 230V or 240V circuit installed, and plan the delivery path for a machine that weighs 200 to 475 pounds. Those four checks prevent nearly every regret we heard about from shop owners who have been through several compressors already. Our shop air quality guide covers managing the air itself once the compressor is installed.
